2-Port S-Video Splitter


FREE Shipping on orders over $100

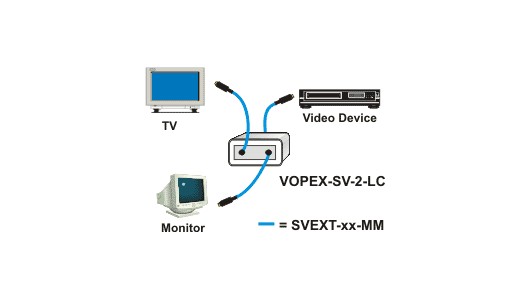

These S-video splitters enable two S-video monitors to be driven by a single video source. The same image is displayed on two monitors.

  • Supports SVGA high-resolution (800x600).
  • No loss of signal.
  • Both outputs are individually buffered.
  • Input and output connectors located on rear panel.
  • 150 MHz bandwidth.

Product Specifications

Video Input
Female 4 pin mini-DIN input connector.
75 ohm input impeadance.
Video Output
Female 4 pin mini-DIN output connectors.
Both outputs individually buffered.
Outputs drive standard 75 ohm loads.
800x600 resolution with no degradation
110 or 220 VAC at 50 or 60 Hz via AC adapter
WxDxH(inches): 2.2x4.0x1.1
Package Includes
S-Video splitter
3-foot multicoax interface cable
AC adapter
