8-Port S-Video Splitter



For upgrade or replacement options: Contact Us

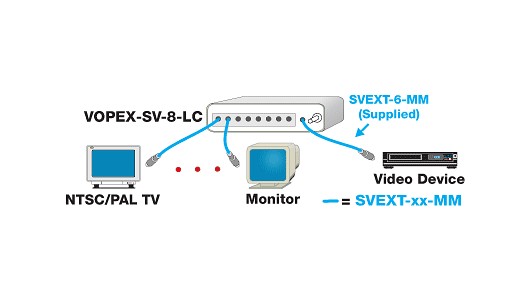

The VOPEX-SV-8-LC S-Video splitter allows the user to amplify and split the signal from one S-Video (Y/C) source (DVD, cable or satellite receiver, etc.) into eight signals, which can each be connected to numerous output devices (TV, VCR, projector, monitor, etc.) The same image is displayed on all outputs with no degradation of signal.

  • Supports high resolution SVGA (800x600) output.
  • No loss of signal.
  • No picture degradation.
  • Economical way to expand the output of numerous devices (DVD player, cable box, satellite receiver) to multiple TVs.

Product Specifications

Video Input
Female 4 pin mini-DIN input connector.
75 ohm input impeadance.
Video Output
Eight female 4 pin miniDIN connectors.
Output impedance: 75 Ohms.
800x600 resolution with no degradation.
Bandwidth is 10 Mhz.
110 VAC via AC Adapter.
WxDxH (Inches): 7x3.5x.1
Package Includes
S-Video splitter
6-foot S-Video male to male cable.
AC adapter
