Aten 4 Port Video Matrix Switch, 4 Inputs, 4 Outputs

VS0404

$375.00

Discontinued
Replaced by: Aten VM0404
Alternative options: Contact Us

The ATEN VS0404 is a 4 port Video Matrix Switch which integrates a video switch, video splitter, and a speaker together. When the regular video splitter can only distribute a single video signal to multi-monitors and the regular video switch just shows a single video signal at one time, VS0404 matrix switch allows video and audio signals from 4 separate computers to be routed to 4 monitors, projectors, and speakers independently.

This 4 port video switch is also a signal booster. It allows you to extend the signal transfer distance up about 210 feet with excellent video quality. To provide more outputs, VS0404 can be cascaded with regular video splitters for various applications. The VS0404 video matrix switch is ideal for presentations and applications where information from multiple computers is being delivered to multiple destinations.

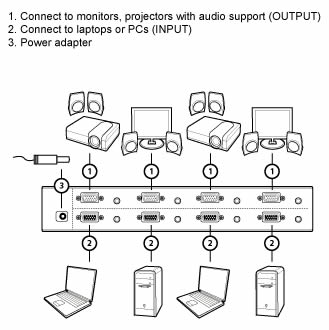

Aten 4 Port Video Matrix Switch Diagram
Aten 4 Port Video Matrix Switch Diagram

Aten Video Matrix Switch Features:

  • Each of the 4 video outs can toggle between Source1, Source2, Source3, and Source4 using front panel push buttons
  • Duplicate and enhance video signals to up to 210 feet (max.)
  • Expandable
  • Audio enabled OS Compatibility :DOS, Windows, LINUX, Mac OS 8.6/9/10 and SUN Solaris 8/9
  • Simultaneous Monitor Display
  • Supports high resolution- up to 1600 X 1200 @ 60Hz.

VS0404 Package Includes:

  • 1x Video Switch
  • 1x Power Adapter
  • 1x VGA Cable 6 ft.(1.8 m.)
  • 1x User Guide

Aten VS0404 Specifications:

Mechanicall
Height 7.9 in. (20 cm.)
Width 1.78 in. (4.5 cm.)
Depth 2.95 in. (7.5 cm.)
Weight 2 lbs. (0.89 kg.)
Cable Distance Up to 210 ft. (65 m.)
Housing Metal
Environmental
Operating Temperature 32 ~ 122F (0~50 C)
Storage Temperature -4~ +140F (-20~ +60C)
Humidity 0~ 80% RH, NC
Power
Amps output 2.4 A
Voltage output DC 5.3V
LED's
Power On 1, Blue
ACT (Activity) 2 green

Video Input 4 x 15 pin HDB Male, Blue
Audio Output 4 x Earphone Jack, Female, Green
Power 1 x DC jack
Video Output 4 x 15 pin HDB Female, Blue
Audio Input 4 x Earphone Jack, Female, Green
Signal Type VGA; SVGA; MultiSync
Video Resolution 1600 x1200@ 60 Hz
