Aten 4 Port DVI Video Splitter

VS164

$276.00$240.62
Save $35.38
Model: 4 Port
FREE Shipping on orders over $100

ATEN (VS164) 4 Port DVI Video Splitter
The VS164 DVI Video Splitter duplicates and boosts the signals from a DVI video and audio source to four DVI displays and audio outputs. They are ideal for any type of broadcasting environment, classrooms, or by power computer users. The VS164 also features audio support and is able to be daisy chained for additional viewing.

ATEN (VS164) 4 Port DVI Video Splitter Features and Benefits:

  • Connects computers with DVI graphics to multiple DVI compatible monitors or projectors
  • Fully compliant with DVI-Digital and DVI-Analog
  • Speaker enabled for audio enjoyment
  • Maximize your viewers - Cascadable
  • Maintains highest link video resolution (1600 x 1200)
  • Supports DDWG (Digital Display Working Group) standard for DVI compliant monitors
  • Installs in minutes

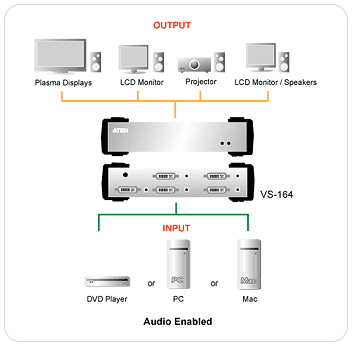

ATEN VS164 Function Diagram
ATEN (VS164) 4 Port DVI Video Splitter Function Diagram

ATEN (VS164) 4 Port DVI Video Splitter Package Content:
1 x 4 Port DVI Video Splitter
1 x Power Adapter (DC 5.3V)
1 x User Manual

ATEN (VS164) 4 Port DVI Video Splitter Specifications:

Case
Width 12.0 in. (30.0 cm)
Height 8.0 in. (20.0 cm)
Length 20.8 in. (53.0 cm)
Case Qty. 5
Package Dimensions
Width 4.0 in. (10.0 cm)
Height 4.0 in. (10.0 cm)
Length 11.0 in. (28.0 cm)
Housing
Case Metal
Weight
Case Wt. 14.3 lb. (6.5 Kg)
Package Wt. 2.4 lb. (1.1 Kg)
Unit Wt. 1.6 lb. (0.7 Kg)
Dimensions
Depth 3.5 in. (8.8 cm)
Width 8.3 in. (21.0 cm)
Height 2.2 in. (5.6 cm)
Video Resolution 1600x1200
Power Consumption DC5.3V, 4.8W
Humidity 0~80% RH, Noncondensing
Connectors (Input) 1 x DVI Female, 1 x Earphone Jack Female
Operating Temperature 32F~122F (0C~50C)
Storage Temperature -4F~140F (-20C~60C)
Connectors (Output) 4 x DVI Female, 4 x Earphone Jack Female
Signal Type DVI-Digital and DVI-Analog
UPC / EAN Barcode icon
UPC 672792133336
EAN 0672792133336
Question: What is the availability of the ATEN VS164 for 2015-2018
Answer: Thank you for your inquiry. We do not see any indication this product will be placed on the End-of-Life list, but inquires to the manufacturer have not been returned.

So, unfortunately, we cannot definitively say this product will be available through 2018.
