2-Port 4K HDMI Splitter
VS182A
Save $15.75

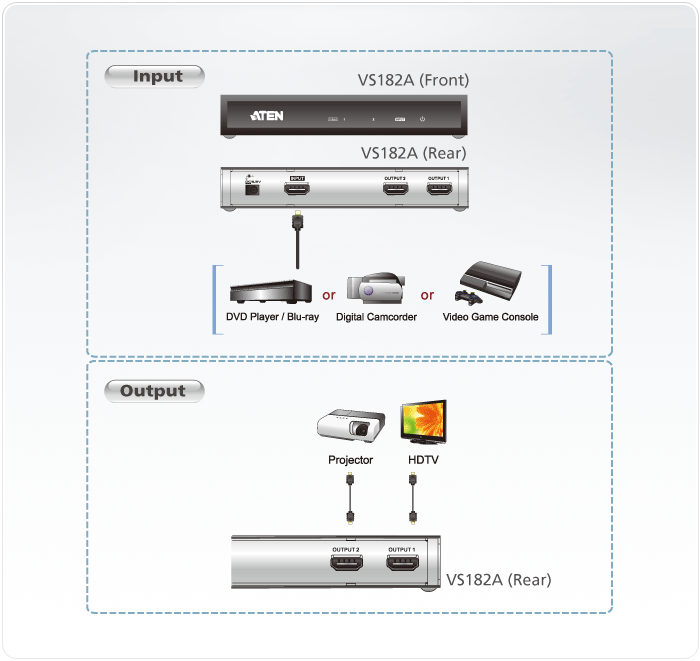

The VS182A HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to two displays at the same time. It supports all HDMI-enabled equipment, such as DVD players, satellite set-top boxes and all HDMI displays.
The VS182A HDMI Splitter is HDCP (High Bandwidth Digital Content Protection) compliant, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.
Product Features
- Connects one HDMI source to two HDMI displays at the same time
- HDMI (3D, Deep Color, 4kx2k); HDCP Compatible
- Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
- Supports Dolby True HD and DTS HD Master Audio
- Long distance transmission - up to 15 m (24 AWG)
- Supports up to 340MHz bandwidth for high performance video
- Plug-and-play - no software installation required
Package Includes
- 1x VS182A 2-Port HDMI Splitter
- 1x Power Adapter
- 1x HDMI Cable
- 1x User Instructions
Product Specifications
| Video Input | |
| Interfaces | 1 x HDMI Type A Female |
| Impedance | 100Ω |
| Max Distance | 1.8 m |
| Video Output | |
| Interfaces | 2 x HDMI Type A Female |
| Impedance | 100Ω |
| Video | |
| Max Data Rate | 10.2 Gbps (3.4 Gbps Per Lane) |
| Max Pixel Clock | 340 MHz |
| Compliance | HDMI (3D, Deep Color, 4K); HDCP Compatible |
| Max Resolution | Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
| Max Distance | Up to 15 m |
| Audio | |
| Input | 1 x HDMI Type A Female |
| Output | 2 x HDMI Type A Female |
| Power | |
| Connectors | 1 x DC Jack |
| Consumption | 5.3 VDC, 2.0W |
| Environmental | |
| Operating Temperature | VE829R: 32°-122°F (0°-40°C) VE829T: 32°-104°F (0°-40°C) |
| Storage Temperature | VE829R: -4°-140°F (-20°-60°C) VE829T: -4°-140°F (-20°-60°C) |
| Humidity | VE829R: 0-80% RH, Non-Condensing VE829T: 0-80% RH, Non-Condensing |
| Physical | |
| Housing | Metal |
| Weight | 0.68 lb (0.31 kg) |
| Dimensions L x W x H | 4.92 x 3.15 x 0.98 in. (12.50 x 8.00 x 2.50 cm) |
UPC 672792004360
EAN 0672792004360
Question: Can this device be used to extend my laptop to two monitors with a 21:9 aspect ratio and resolution Of 2560 x 1080?
Answer: Thank you for your inquiry,
Aten CS182A supports up to 4K so it has enough pixels to support 2560 x 1080 resolution, but Aten (the vendor) said unfortunately they cannot promise that the aspect ratio will be compatible ("unusual configuration") - however it may be.
Answer: Thank you for your inquiry,
Aten CS182A supports up to 4K so it has enough pixels to support 2560 x 1080 resolution, but Aten (the vendor) said unfortunately they cannot promise that the aspect ratio will be compatible ("unusual configuration") - however it may be.
