3-Port HDMI Switch

VS381

The VS381 3-Port HDMI Switch allows you to quickly and easily connect 3 HDMI input sources to your HDMI display device. It allows convenient switching between digital devices such as DVD players, satellite receivers and digital camcorders. You can select the desired input source via a remote control unit or pushbuttons located on the front of the switch.

Product Features

  • Allows up to three HDMI A/V sources to be connected to one HDMI display

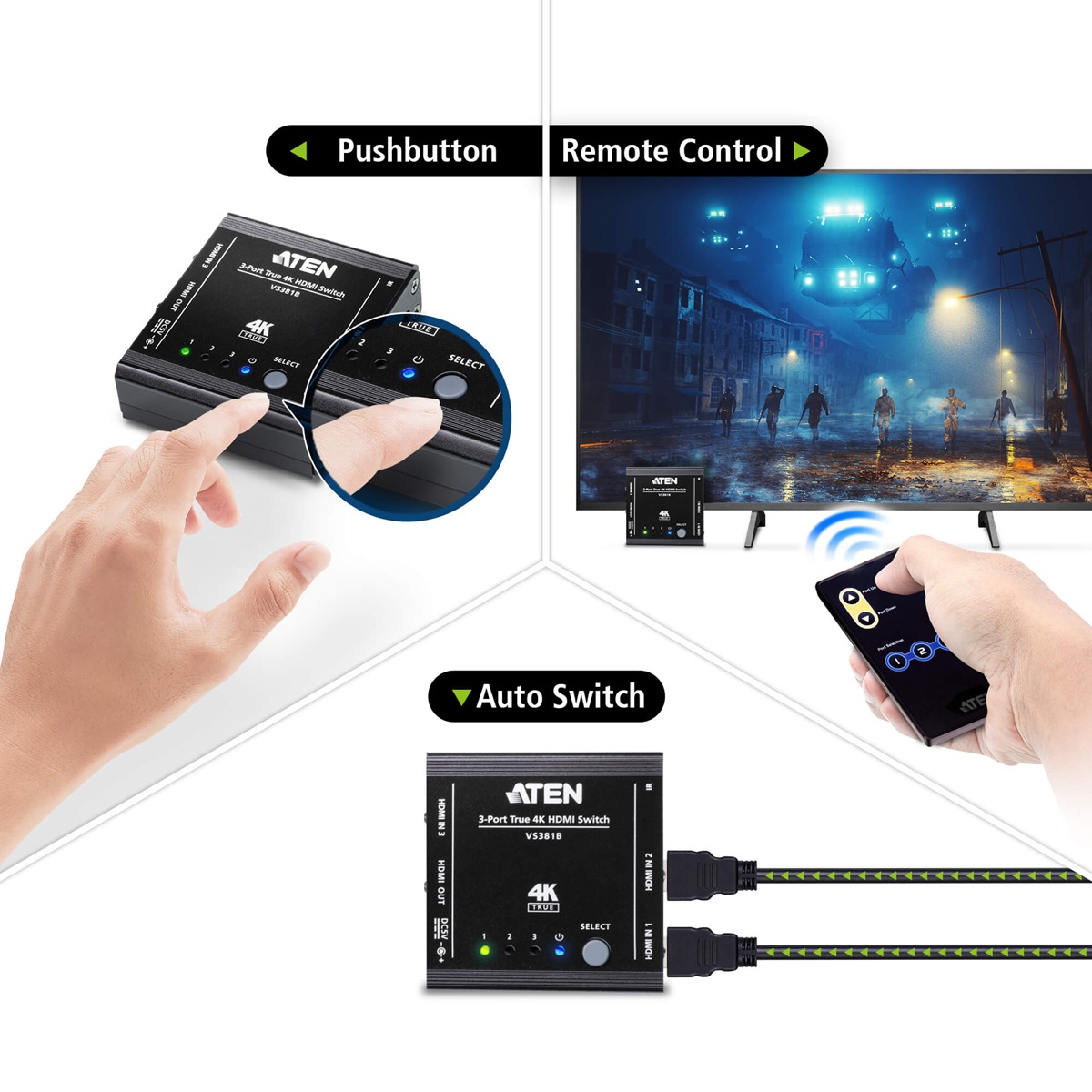

  • Toggle between A/V sources using remote control or front panel pushbuttons
  • Superior video quality - HDTV resolutions of 480p, 720p, 1080i, 1080p (1920x1080); PC resolutions of VGA, SVGA, XGA, SXGA, and WUXGA (1920x1200)
  • Supports Dolby True HD and DTS HD Master Audio
  • Plug-and-play - no software installation required
  • DDC Compatible
  • HDMI (3D, Deep Color)
  • HDCP compatible
  • Front-Panel LED for port and power status
  • Easy and affordable way to add three HDMI inputs to your home theater system
  • No power adapter required

Package Includes

  • 1x VS381 3-Port HDMI Switch
  • 1x IR Remote Control

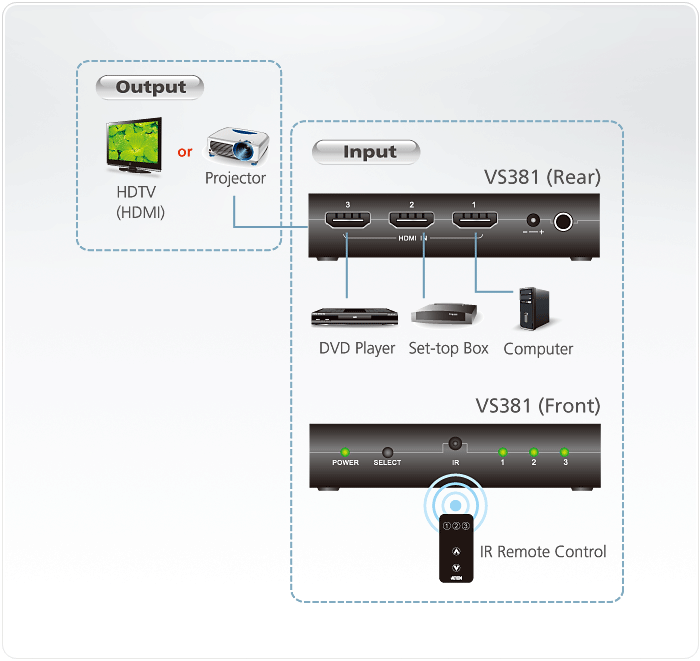

Product Use Diagram

Product Specifications

Video Input
Interfaces3 x HDMI Type A Female
Impedance100Ω
Max Distance1.8 m
Video Output
Interfaces1 x HDMI Type A Female
Impedance100Ω
Video
Max Data Rate6.75 Gbps (2.25 Gbps Per Lane)
Max Pixel Clock225 MHz
ComplianceHDMI(3D, Deep Color)
HDCP Compatible
Max ResolutionUp to 1080p
Max DistanceUp to 15m
Audio
Input3 x HDMI Type A Female
Output1 x HDMI Type A Female
Control
IR1 x Mini Stereo Jack Female
Power
Connectors1 x DC Jack
Consumption5V DC, 3W
Environmental
Operating TemperatureVE829R: 32°-122°F (0°-40°C)
VE829T: 32°-104°F (0°-40°C)
Storage TemperatureVE829R: -4°-140°F (-20°-60°C)
VE829T: -4°-140°F (-20°-60°C)
HumidityVE829R: 0-80% RH, Non-Condensing
VE829T: 0-80% RH, Non-Condensing
Physical
HousingPlastic
Weight0.15 lb (0.07 kg)
Dimensions L x W x H3.78 x 2.02 x 0.88 in. (9.60 x 5.12 x 2.24 cm)
