Aten 4 Port HDMI Audio/Video Switch

VS481A

$98.00$85.44
Save $12.56
FREE Shipping on orders over $100

The Aten VS481 is a 4 port HDMI audio/video switch which features a multi-input, single output unit design to conveniently connect, four HDMI source units such as, DVD player, Set top box, Satellite receiver, etc. then direct that input to a single HDMI monitor. With the VS481 HDMI switch, device selection can be accomplished by manually pressing a button on the front panel, or from across the room with the included remote unit.   This audio/video switch has a single input port mounted on the front panel for connecting mobile or temporary devices, such as digital cameras, while your permanent device connections are out of sight on the rear of the unit.

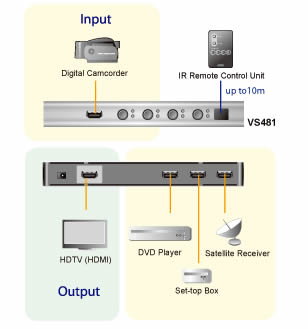

Aten HDMI Video Switch Application Diagram
Aten HDMI Video Switch Application Diagram

Aten HDMI Switch Features:

  • Easy switching among 4 digital video signals by remote control or front panel push buttons
  • LED indication of video source channels
  • Supports high resolution: supports HDTV resolution 480p, 720p, 1080i, 1080p & VGA, SVGA, SXGA (1280x1024) and UXGA (1600x1200)
  • Plug-and-play. No software installation required
  • HDMI 1.2 compliant
  • HDCP compliant

VS481 Package Includes:

  • 1x HDMI Switch
  • 1x HDMI Cable (5 ft.)
  • 1x IR Remote Control Unit
  • 1x Power Adapter
  • 1x User Manual
  • 1x Quick Start Guide

Aten VS481 Specifications:

Mechanical
Height 0.98 in. (2.5 cm.)
Width 3.15 in. (8 cm.)
Depth 7.87 in. (20 cm.)
Weight 0.99 lb. (0.45 kg.)
Housing Metal
Environmental
Operating Temperature 32~122F (0 ~ 50C)
Storage Temperature -4F ~ 140 F (-20C ~ 60C)
Humidity 0 ~ 80% RH, NC
Power Consumption DC 5.3V, 2W
LED's
Selected 4 (Green)
On Line 4 (Orange)
Connectors
Video Input 4 x HDMI Type A Female (Black)
Power 1 x DC Jack (Black)
Video Output 1 x HDMI Type A Female (Black)
Port Selection IR Remote Control; 4 x Push-buttons
Video Resolution 1600 x 1200 @ 60 Hz; DDC2B and 480p, 720p, 1080i, 1080p
UPC / EAN Barcode icon
UPC 672792115868
EAN 0672792115868
