Aten 8port Video Splitter 200 MHz

VS98A

$92.00$68.70
Save $23.30
FREE Shipping on orders over $100

ATEN VS98A 8-Port Video Splitter
ATEN's VS98A video splitters provides video and audio input signals to 8 video and audio outputs each at 200MHz after duplication and boosting. It also boosts signals for long-distance transfer (up to 65m). It can expand the number of monitors at its outputs via the daisy chain connection.

ATEN VS98A 8-Port Video Splitter Features and Benefits:

  • One video input to 8 video outputs.
  • Long distance transmission - up to 65 m (210').
  • Daisy chainable.
  • Supports up to 200 MHz bandwidths.
  • Suitable for XGA, SVGA, VGA and multisync monitors.
  • All metal casing.
  • OS Compatibility:DOS、WIN98、WIN ME、WIN NT、WIN 2K、WIN 2003、WIN XP、LINUX、Mac OS 8.6/9/10 and SUN Solaris 8/9.

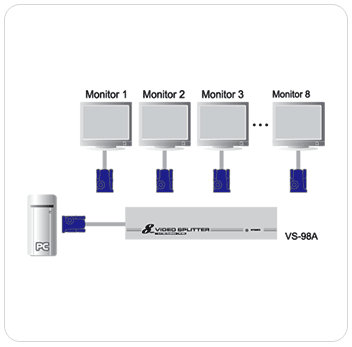

ATEN VS98A Function Diagram
ATEN VS98A 8-Port Video Splitter Function Diagram


ATEN VS98A 8-Port Video Splitter Package Content :
1x VS-98A Video Splitter
1x Power Adapter
1x User Manual

ATEN VS98A 8-Port Video Splitter Specifications:

Connectors Video In 1 x HDB-15 Male (Blue)
Video Out 8 x HDB-15 Female (Blue)
Power 1
VGA Bandwidth (-3db) 250MHz
VGA Res. /
Vertical Frequency
1792 x 1344 @ 60Hz
Signal Type VGA, SVGA, Multisync
Cable Distance 65 m [210'] (Max.)
Power Consumption DC 9V 3.42W (Max.)
Housing Metal
Weight 0.53kg
Dimensions
( L x W x H )
20 x 7.5 x 4.5 cm
UPC / EAN Barcode icon
UPC 672792000140
EAN 0672792000140
