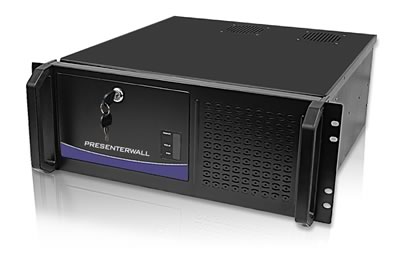

The SmartAVI VW-16XDS is a 4x4 video switch. End users have the ability to set up each monitor individually (such as resolution and color quality) and then can 'add' them to the PresenterWall system. For greater flexibility and simplicity, you can also define your video wall configuration within the software, and with one click, set all of the monitors in the group at the same time. This enables the software to communicate with each monitor separately or as part of a larger grouping for stretched/tiled images and video.

SmartAVI  VW-16XDS Features:

  • Import movies or files from a disc, sending it to a single screen or stretch it across multiple screens, depending on how large you want the image to display.
  • Presentations can be imported into PresenterWall from your PC, external hard drive or flash drive
  • The PresenterWall software recognizes everyday files, including JPEG, QuickTime and Adobe Flash
  • The PresenterWall server is based on the Windows XP platform, providing instant familiarity with SmartAVI's software, greatly reducing any learning curve while increasing creativity and productivity.
  • SmartAVI's use of common PC components make any necessary repairs or upgrades to the PresenterWall system simple, fast and affordable

SmartAVI  VW-16XDS Specifications:

Chassis-4U Rack Mount ATX Server Case
Height 7 in. (17.78 cm)
Depth 19 in. (48.26 cm)
Width 19 in.(48.26 cm)
Motherboard Intel based; Intel Core 2 Extreme, Quad and Duo processors in LGA775 package (FSB 1333/1066/800) Intel G45 + ICH10 chipset
Realtek ALC888 HD 7.1 channel audio
Operating System Windows XP Pro SP3
Video In Internal video card supports up to 1600 x 1200
Video Out PCI-Express
4-Port DVI-ATI Radeon HD3850 seres(RV670PRO)
Supports up to 1920 x 1200 for each port
Video In (Optional)
Maximum capture resolution per channel (768 x 288)
Supported video formats PAL, NTSC, SECAM
Inputs per overlay window 4 BNC for 4-port, DB25 for 8-port
Memory 2GB RAM (2 x 1GB) PC3-8500 240-pin DIMM DDR3
Hard Drive 100GB SATA hard drive
Power Supply Ultra LSP650-Watt power supply
