LCD Console Drawer: WUXGA - 1920 x 1200, 1U, 18.0"

X119

$2,653.00$2,449.00
Save $204.00
FREE Shipping on orders over $100

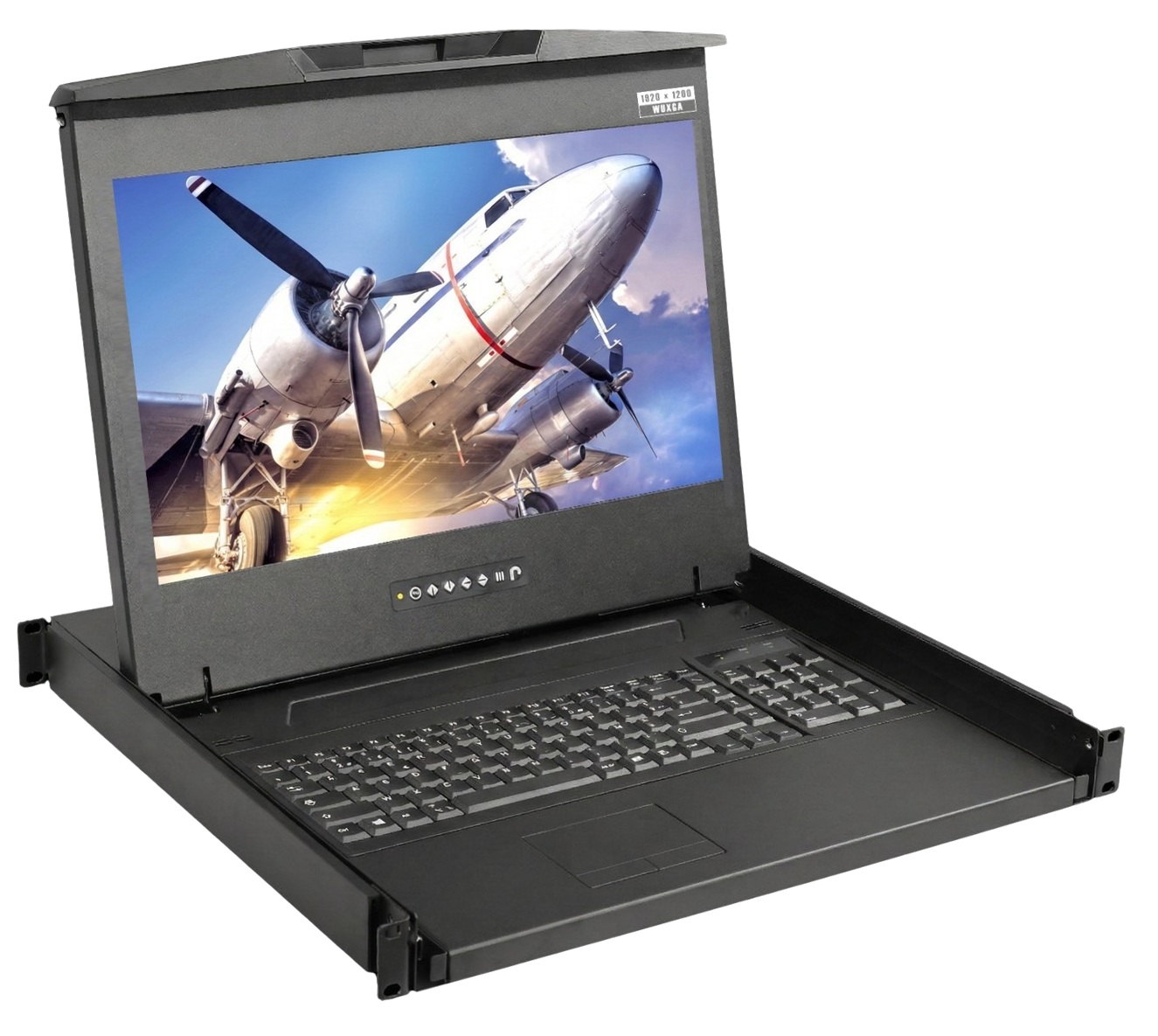

The CyberView X119 is an 18" 1U WUXGA (Widescreen Ultra Extended Graphics Array: 1920 x 1200) Rack Mount Monitor Drawer. Featuring a WUXGA 18.0" LED-backlit LCD display that supports resolutions up to 1920 x 1200 @ 60Hz with 16.7M colors (8-bit), and 104-key notepad keyboard, and either a touchpad or trackball, the CyberView X119 is the leading Widescreen Rack Console solution for data centers & other IT environments. Enhance your rack by integrating a monitor, keyboard, mouse, and KVM Switch with this state-of-the-art, modular rack console drawer.

Austin Hughes CyberView K119 Rack Mounted

X119 Features and Benefits

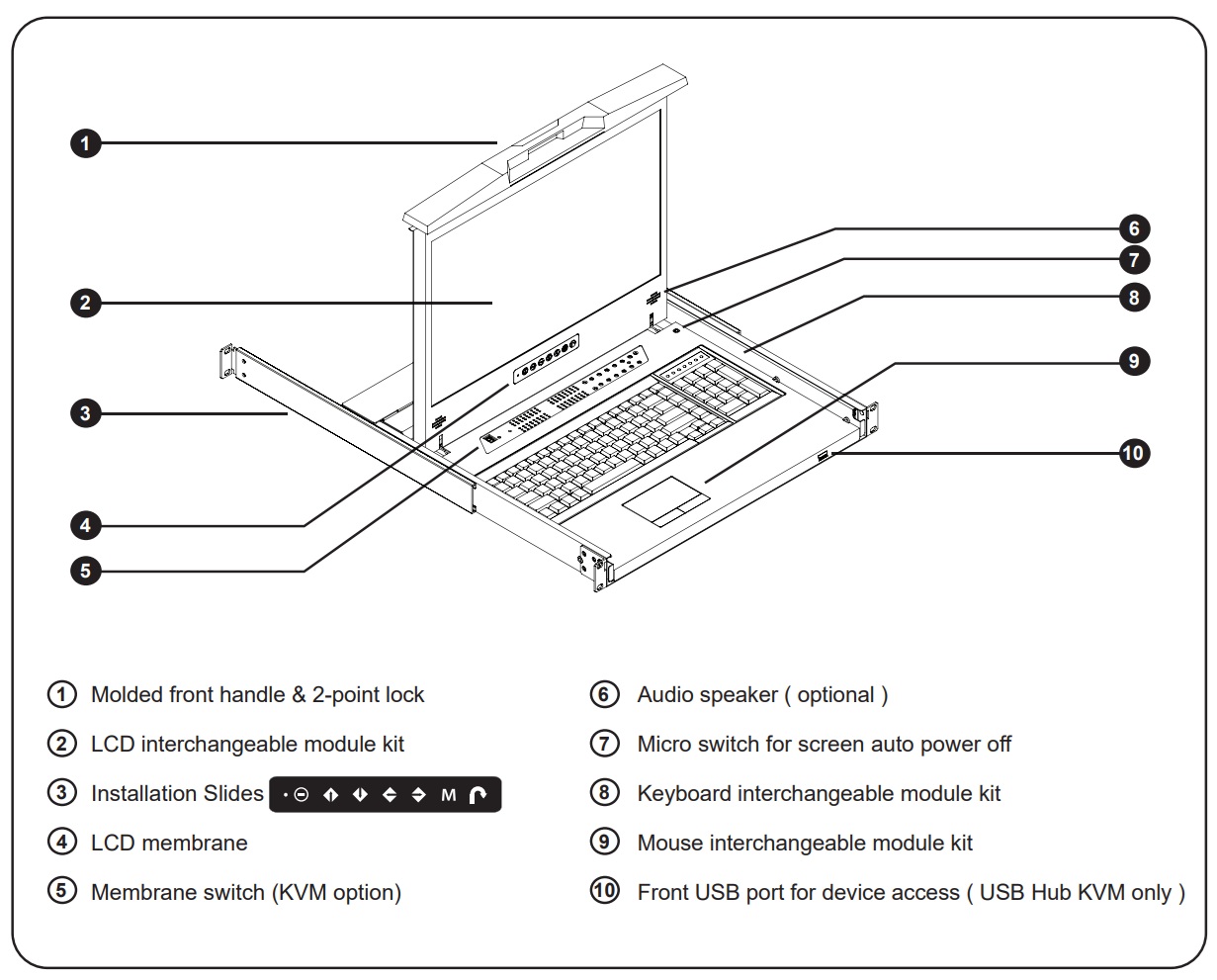

  • 1U 18.0" WUXGA LED-backlit LCD console drawer
  • 1920 x 1200 @60Hz native resolution / 16.7M colors
  • HDMI 1.4 + VGA video input / USB KB / MS
  • 104-key keyboard with either touchpad or trackball options

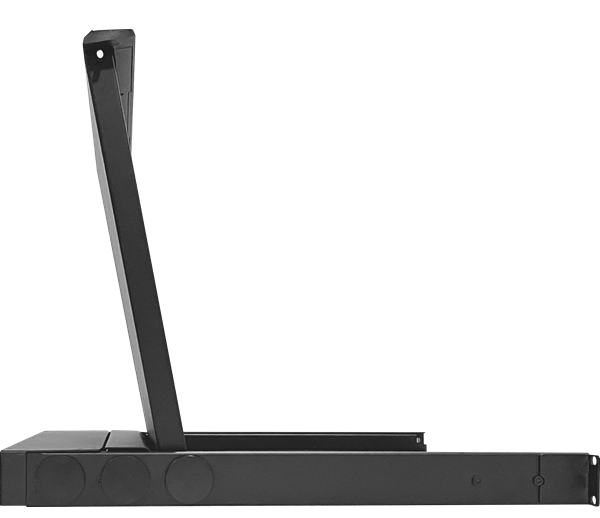

  • Short depth design of 470mm / 18.5"
  • One Man installation design
  • Enhanced aesthetics with 2-point lock
  • Modular for a highly customizable rack console - integrated KVM, peripherals & more
  • 6ft CX-6B HDMI /USB console cable included
  • TAA Compliant
  • 2-year standard warranty ( upgradable up to 5 years )

Optional Configurations (Contact us for availability)

  • Dual stereo speakers for HDMI (HS4.4)
  • DVI-D + Audio input & output + Speakers (DV4.4)
  • DP 1.0 + Speakers ( DP )
  • 3G / HD / SD-SDI Broadcast-grade input (SDI)
  • Front USB hub port for device access (USB)
  • DC Power: 12V, 24V, 48V, or 125V DC
  • Additional languages supported
  • Multiple Integrated KVM Switch Options

X119 Package Contents

CyberView X119 Package Contents
  • (1) X119 Console Drawer
  • (1) CX-6B 6'HDMI/USB Console Cable
  • (1) Power cord
  • (8) M6 screw, cage nut & cup washer
  • (1) 2-year standard warranty ( upgradable up to 5 years )

X119 Resources

CyberView K117 DiagramX119 Brochure (PDF)
X119 Manual (PDF)
X119 Integrated KVM Manuals (PDF)

CyberView X119 Specifications

Mechanical
Product Dimensions (W x D x H)
Single Console17.4 x 18.5 x 1.73 inch
(442 x 470 x 44 mm)
Console w/ KVM17.4 x 23.2 x 1.73 inch
(442 x 590 x 44 mm)
Package Dimensions (W x D x H)
Single Console /
Console w/ KVM		23.2 x 31.8 x 5.5 inch
(590 x 808 x 140 mm)
Net Weight
Single Console26.4 lbs. (12 kg)
Console w/ KVM28.6 lbs. (13 kg)
Gross Weight
Single Console36.5 lbs. (16.6 kg)
Console w/ KVM41.8 lbs. (19 kg)
Mounting Distance
Single Console18.3 ~ 27.6 inch
(465 ~ 700 mm)
Console w/ KVM18.5 ~ 31.5 inch
(470 ~ 800 mm)
Console Ports
Video InputVGA + HDMI 1.4 (HDCP 1.4)
Video Upgrade OptionsDVI: DVI-D, TMDS single link
Display Port: DP 1.0 / HDCP 1.3
KB / MS USB type A x 2

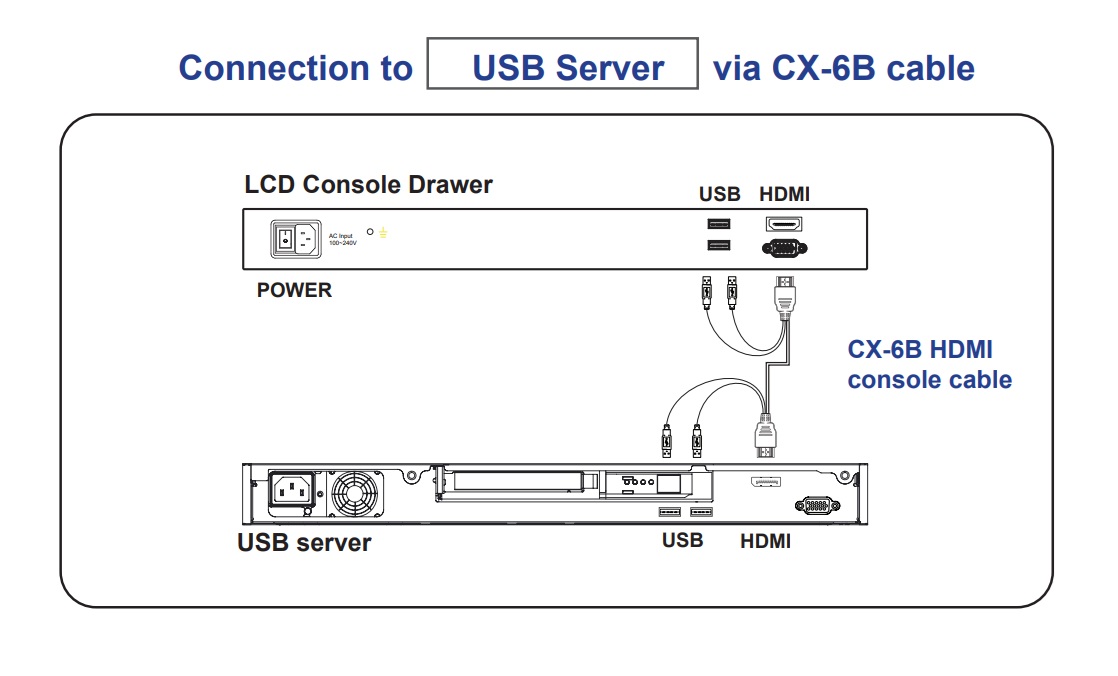

Console Cable: CX-6BDrawer end :HDMI + USB type A x 2
Server end : HDMI + USB type A x 2
LCD Screen

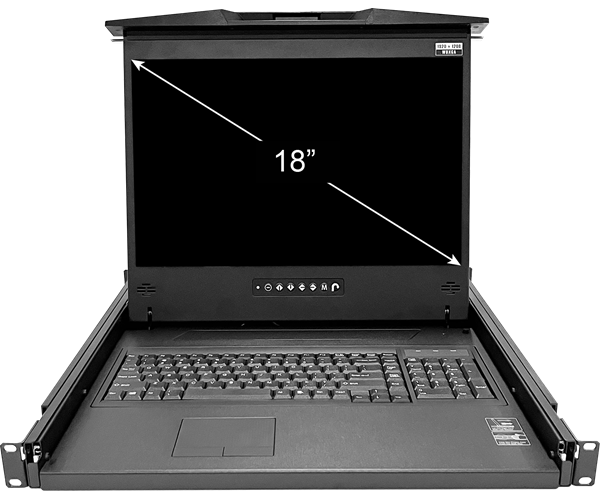

LCD panel size ( diagonal )18.0"
Backlight typeLED
Native resolution1920 x 1200 60Hz
Brightness (cd/m2)300
Colors16.7M
Contrast Ratio (typ)1000 : 1
Viewing angle ( L/R/U/D )89/89/89/89
Response time ( ms )9
Dot pitch ( mm )0.191
Display area ( mm )387.76H x 242.35V
Surface treatmentAnti-glare
Surface hardness3H
MTBF (hrs)15,000
Audio (optional upgrade)
Speaker2x 2W (Dual Stereo)
Power
Power InputAuto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
(Single Console / with KVM)
Screen onMax. 23W / Max. 48W
Power saving modeMax. 2W / Max. 34W
Power button onMax. 1W / Nil
Environmental
Operting Temperature-0 to 55°C degree
Storage Temperature-20 to 60°C Degree
Operating Humidity10~90%, non-condensing
Relative Humidity5~95%, non-condensing
Operating Altitude16,000 ft
Non-operating Altitude40,000 ft
Shock 10G acceleration (11ms duration)
Vibration10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMCFCC & CE certified
SafetyCE / LVD & UKCA certified
EnvironmentREACH & RoHS3 / WEEE compliant

The X119 series is also known as the X-119. The X119e comes with an integrated touchpad, while the X119b comes with an integrated trackball.


X119 models with Integrated KVM Switch (Contact us for pricing / availability)

Austin Hughes CyberView X117 with HDMI KVM
HDMI KVM		Local UserExtendedIP8-Port
100X119-801K

Austin Hughes CyberView X117 with DP KVM
DP KVM		Local UserExtendedIP8-Port
100X119-801DP

Austin Hughes CyberView X117 with DVI-D KVM
DVI-D KVM		Local UserExtendedIP12-Port
100X119-1201D

Austin Hughes CyberView X117 with Matrix CAT6 KVM
CAT6 Matrix KVM		Local UserExtendedIP8-Port16-Port32-Port
111-X119-MUIP1613X119-MUIP3213
112-X119-MUIP1624X119-MUIP3224
110-X119-MU1602X119-MU3202
120-X119-MU1603X119-MU3203
130-X119-MU1604X119-MU3204

Austin Hughes CyberView X117 with CAT6 KVM
CAT6 Combo KVM		Local UserExtendedIP8-Port16-Port32-Port
101X119-UIP802X119-UIP1602X119-UIP3202
110X119-U802X119-U1602X119-U3202
100X119-U801X119-U1601X119-U3201

Austin Hughes CyberView X117 with VGA DB-15 KVM
VGA DB-15 KVM		Local UserExtendedIP8-Port16-Port32-Port
101X119-IP802X119-IP1602-
110X119-802X119-1602-
100X119-S801X119-S1601-

Austin Hughes CyberView X117 with VGA DB-15 KVM
VGA DB-15 KVM		Local UserExtendedIP8-Port16-Port32-Port
101X119-IP802X119-IP1602-
110X119-802X119-1602-
100X119-S801X119-S1601-

Austin Hughes CyberView X117 with USB HUb VGA DB-15 KVM
VGA DB-15 KVM with USB Hub		Local UserExtendedIP8-Port16-Port32-Port
101X119-IP802H--
110X119-802H--
100X119-801H--
