ADDERLink XD-C650 Quad-Head 4K DisplayPort KVM Extender Pair
XD-C650P-DP-US
Save $237.36

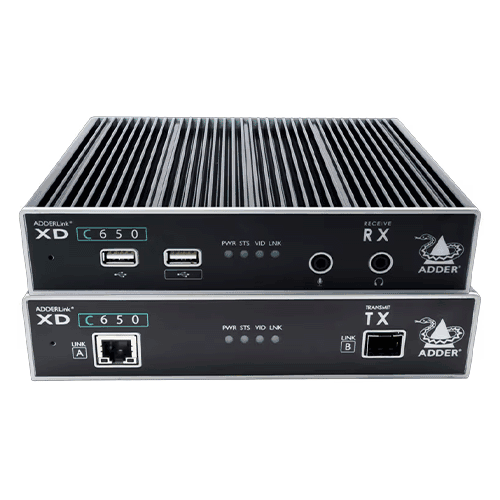

ADDERLink® XD C650
Quad-head KVM extender delivering high-resolution video, full-speed USB 2.0, and audio - all over a single CATx or fiber connection.
XD C650 Features
- Quad-Head High-Definition Video
- Supports quad-head 1920x1200@60Hz or single head 4096x2160@60Hz (DCI 4K60). Quad-head enabled over a single cable using DisplayPort 1.2 Multi-Stream Transport (MST) technology.
- Up to 4km Extension
- Supports both copper and fiber interfaces. Provides a range of up to 100m/328ft over a CAT6 cable link, and up to 4km/2.5 miles over an optical fiber link (Fiber SFP modules sold seperately).
- Emulated and Hi-Speed USB 2.0
- USB 2.0 emulation ensures reliable connection of full and low speed HID devices (mouse or keyboard). Mass storage devices and isochronous devices, such as webcams and audio headsets can also be used through the transparent USB 2.0 Hi-Speed port.
- Plug and Play
- Uses a low-latency point-to-point protocol over a single CATx or fiber cable that works as soon as it is connected. No network set-up, driver or software is required.
- Digital Audio over DisplayPort
- Supports two channels of 24-bit, 192kHz sampled PCM audio over the DisplayPort connection.
- Analog Audio
- Plug analog line in/out and headphones directly into the receiver. Audio is transmitted as bi-directional stereo 24-bit/96kHz using either an analog or USB connection to the host.
- Monitor Flexibility
- EDID management allows the monitor capabilities to be passed back to the host computer for optimum compatability. Additionally, a local monitor may be connected at the transmitter side.
- Serial Communications
- RS232 can be passed between the units to a maximum rate of 115200 baud with RTS/CTS flow control.
ADDERLink® XD C650 Technical Specifications
| Specification | XD-C650-T (Transmitter) | XD-C650-R (Receiver) |
| Maximum Resolution (1 Screen) | 4096 × 2160 @ 60 Hz, 8 bpc | 4096 × 2160 @ 60 Hz, 8 bpc |
| Maximum Resolution (4 Screens) | 1920 × 1200 @ 60 Hz, 8 bpc (Quad-Head MST) | 1920 × 1200 @ 60 Hz, 8 bpc (Quad-Head MST) |
| Video Standard | DisplayPort 1.2 MST - supports HD60 Quad-Head or 4K60 Single-Head | |

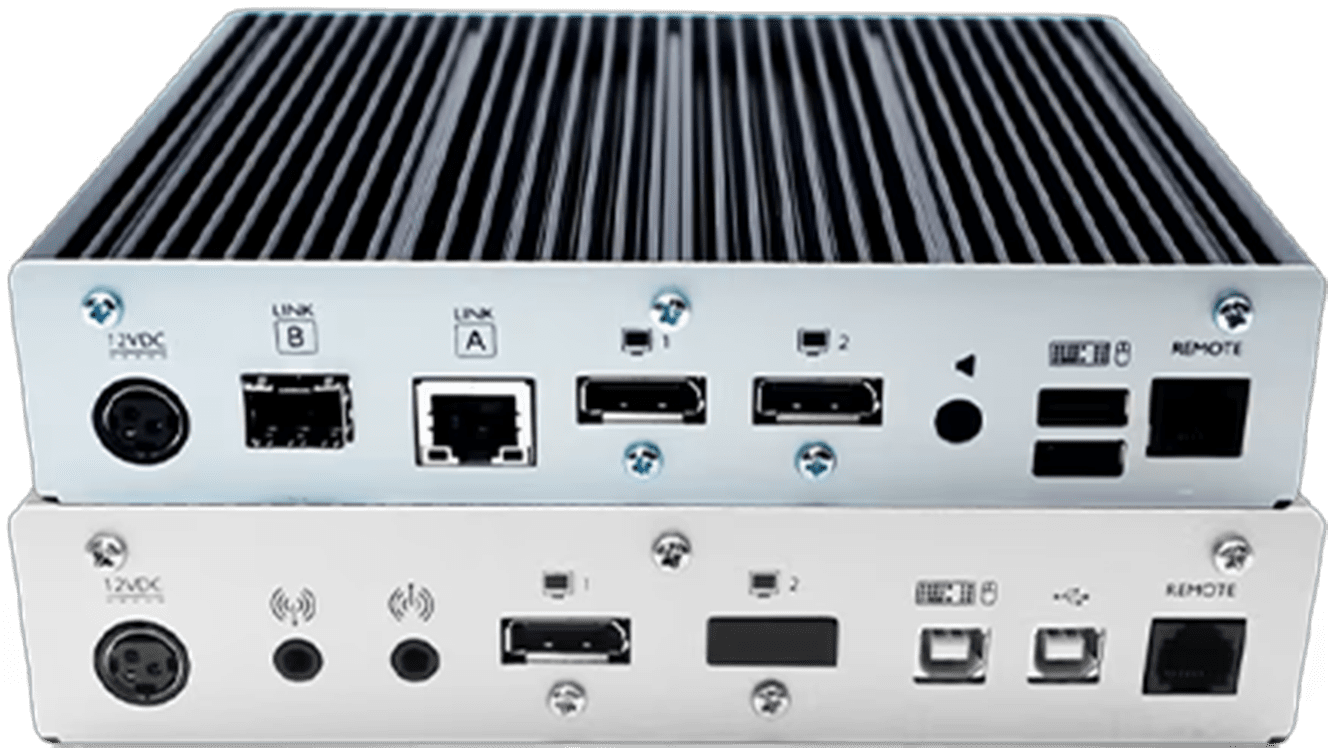

| DisplayPort Ports | 1 × Full-Size DP 1.2 | 2 × Full-Size DP 1.2 |
| USB Ports |
1 × USB-B 2.0 (True Emulation HID Only, Full Speed) 1 × USB-B 2.0 (Transparent, High Speed) |
3 × USB-A 2.0 (True Emulation HID Only, Full Speed) 1 × USB-A 2.0 (Transparent, Full Speed) |
| Serial Port | 1 × RS-232 (RJ12 6p6c) with RTS/CTS flow control, max 115200 baud | |
| Audio | Analog/Digital, 2 Channels, Bi-directional 24-bit / 96 kHz 1 × 3.5 mm In, 1 × 3.5 mm Out |
Analog/Digital, 2 Channels, Bi-directional 24-bit / 96 kHz 1 × 3.5 mm In, 2 × 3.5 mm Out |
| Digital Audio | 2 Channels of 24-bit / 192 kHz PCM over DisplayPort connection | |
| Link Ports | 1 × RJ45 (8p8c), 1 × SFP+ | 1 × RJ45 (8p8c), 1 × SFP+ |
| Supported Cable Distances |
CAT5e - 50 m (164 ft) CAT6 (SFTP) - 100 m (328 ft) Fiber (MM) - 400 m (1,312 ft) Fiber (SM) - 4 km (2.5 mi) |
|
| Power |
1 × 12 V 3-pin input (18 W PSU included) 100-240 VAC 47/63 Hz input, 12 VDC 18 W output |
|
| Construction | Robust metal enclosure with multi-color status LEDs | |
| Dimensions (W × H × D) | 186 × 39 × 148 mm (7.3 × 1.5 × 5.8 in) | 186 × 39 × 148 mm (7.3 × 1.5 × 5.8 in) |
| Weight | 1.29 kg (2.8 lb) | 1.24 kg (2.7 lb) |
| Compatibility | Compatible with all known operating systems | |
| Included Accessories |
TX & RX pair, (2) Power supplies with mains cables, (1) DisplayPort cable (VSCD18), (1) USB cable (VSC24), (1) Audio 2 m cable, Quick Start Guide |
|
