SmartAVI UXGA/Audio Point CAT5 Extender

XTAVS

$299.00$232.99
Save $66.01
FREE Shipping on orders over $100

The SmartAVI XTAV is a Video Extender which uses a single cat5 cable to broadcast high resolution SXGA, and Stereo Audio up to 1000ft away.

SmartAVI XTAV Features:

  • Uses easy to install, inexpensive CAT-5/5e/6/7/8.
  • Output reaches up to 1,000 feet (300 m).
  • Resolutions up to 1900x1200.
  • 300 MHz Bandwidth.
  • Sends high-resolution UXGA and Stereo Audio
  • Compatible with VGA, XGA, Sun, MAC and SGI
  • Sync Format / Polarity Preservation.
  • Compatible with Line Level Stereo Audio Signals.
  • High ground loop immunity.
  • Built-in lightning, power surge and transient protection.
  • Designated trimmer in the remote unit to compensate for cable length.
  • Compact Metal Case Enclosure.

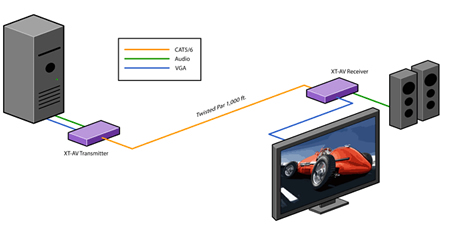

SmartAVI XTAV Video Extender Application Diagram
SmartAVI XTAV Video Extender Application Diagram

Applications for the XTAV include:

  • Data Broadcasting - Data such as news, stock prices, sports results, and flight information can be broadcast in real time to various monitors and/or speakers.
  • Learning and Training - XT-AV can be used in educational presentations to multiple locations, in schools and in other training facilities.

Package Includes:

  • XTA-TXS
  • XTA-RXS
  • CCVGAMM06
  • 2 X PS5VD1A

SmartAVI XTAV Specifications:

Mechanical
Dimensions 3.5 x 3.5 x 0.9* in.
(90 x 90 x 23 mm.)
* 1.0 in./ 26 mm. with pegs)
Weight 0.6 lb. (0.2 kg.)
Power
Requirements 5VDC @.5A
Connector 2.1mm DC jack (center +ve)
VGA Data
Format RGBHV, RGsB, YUV, Y/C, CVBS
Resolution Up to 1900 x 1200
VGA, SVGA, XGA, SXGA
Connector Type High density HD15
Audio
Signal Type Stereo unbalanced
Connector 3.5mm jack socket
UPC / EAN Barcode icon
UPC 813280024051
EAN 0813280024051
