SmartAVI UXGA/Audio/RS232/IR Point to point Wall Plate CAT5 Extender (1000ft)


Save $93.83
FREE Shipping on orders over $100

SmartAVI's XTWALL is a wall mounted HD VGA, stereo audio, IR, and RS-232 extender system that broadcasts signals up to 1000 feet away via twisted-pair (UTP) CAT5 cabling.

SmartAVI XTWall Features:

  • Sends high-resolution VGA, stereo audio , RS232 or IR
  • Wall plate design for custom integrated look.
  • Choose from a variety of colors and styles.
  • Supports dual screens on receiver.
  • Uses easy to install, inexpensive CAT-5/5e/6/7/8.
  • Each output reaches up to 1000 feet (300 m).
  • Supports high resolution video up to 1900x1200
  • HD compatible (720p, 1080i,1080p)
  • 300 MHz bandwidth.
  • Compatible with Line Level Stereo Audio Signals.
  • High ground loop immunity
  • Designated trimmer in the remote unit to compensate for cable length.
  • Compact metal case enclosure.
  • External power supply.
  • IR command to single or multiple displays.
  • Compatible with VGA, XGA, Sun, MAC and SGI
  • Sync Format / Polarity Preservation.

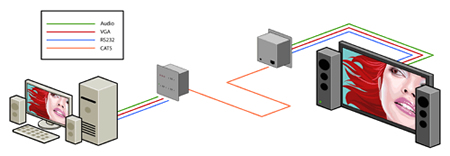

SmartAVI XTWall Video Extender Application Diagram
SmartAVI XTWall Video Extender Application Diagram

Applications of the XTWall include:

  • Presentations - presentation from commercial products to corporate financial data. It can be used in show rooms, board rooms, trade shows and window displays.
  • Data Broadcasting - Data such as news, stock prices, sports results, and flight information can be broadcast in real time to various monitors and/or speakers.

Package Includes:

  • XTW-TX Transmitter Unit
  • XTW-RX Receiver Unit
  • 2 X (PS5VD1F)

SmartAVI XTWall Specifications:

Requirements 5V DC @500mA
Connector 5x2.1 DC Jack
Bandwidth 400MHz
Analog signal Level 1 volt
Impedance 75 ohms
Connector High density HD15
Sync TTL horizontal SyncRange: 15 to 130 KHz Vertical Sync Range 30 to 120 Hz
Bandwidth 20 KHz
Signal level OdB
Impedance 10K ohms
Connector 3.5mm jack socket
System Cable
Type Cat5 UTP EIA 568A
Connector RJ45
