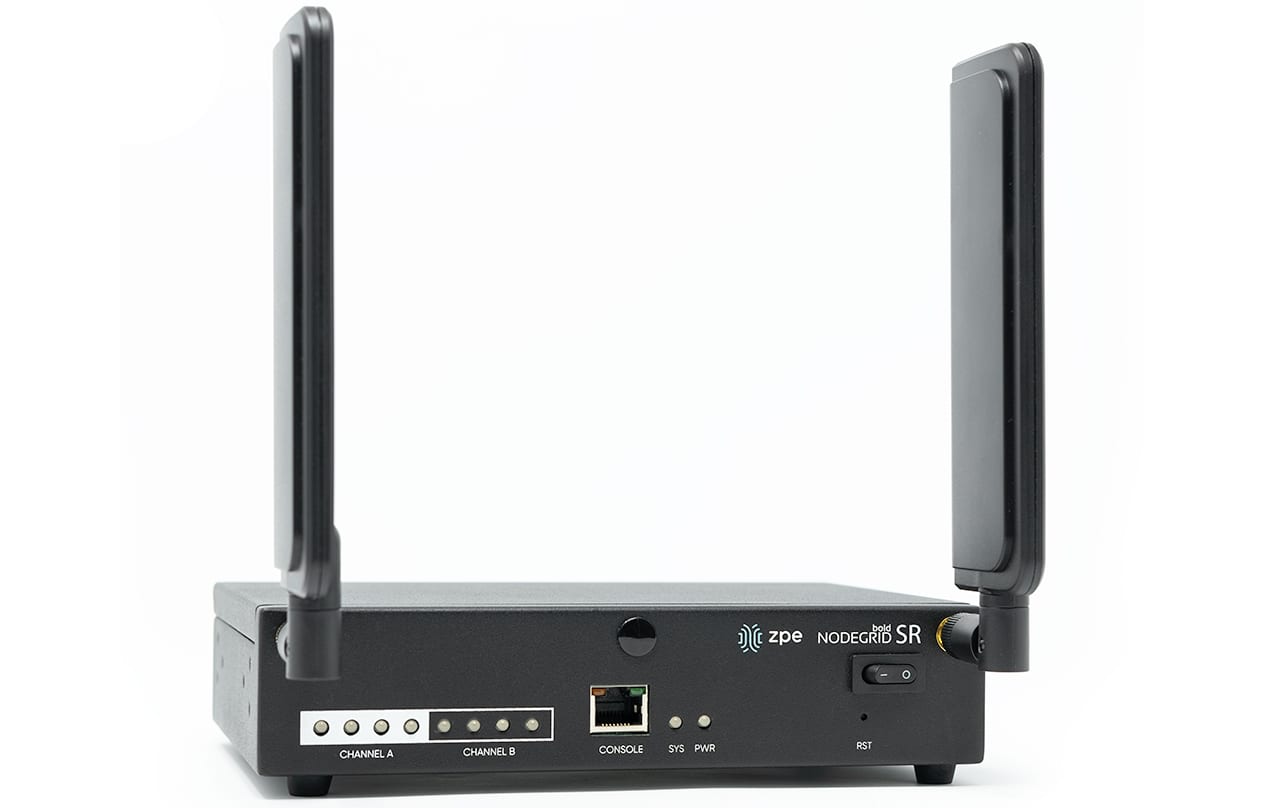

8-port Services Router Serial Console with Internal Wi-Fi 5 Card
ZPE-BSR-24-W5
Save $161.00
The ZPE-BSR-24-W5 Nodegrid Bold SR™ (BSR) with internal Wi-Fi 5 card is an open platform appliance designed for secure access and control over remote devices at the edge of your network. BSR offers out-of-band management and supports virtualization, application hosting, and containerization via Docker, Kubernetes, and LXC. Minimize your stack for critical cost and space savings at edge locations.

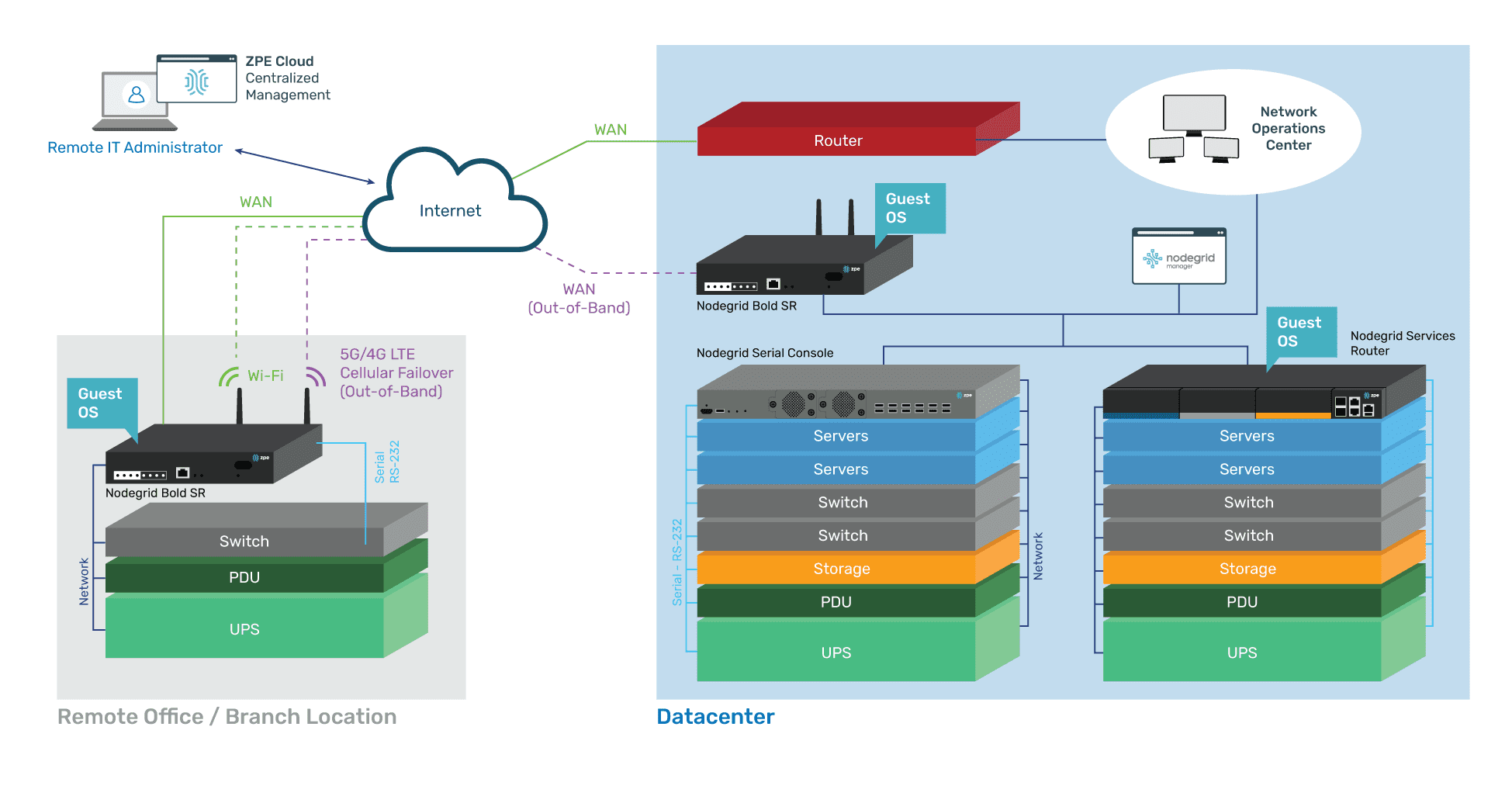

Services Router & Out-of-Band IT Infrastructure Management for Branch, Edge, & Colocation Network Devices.
Whether you're in telecom, retail, or oil & gas, deploy the ZPE-BSR-24-W5 for the functionality & control you need. This lightweight box with Wi-Fi access allows you to connect more than a dozen devices & add-ons, so you can deliver robust capabilities throughout your enterprise. This 8-port serial console / services router puts you in charge with remote out-of-band management, Secure Access Service Edge, and SD-Branch capabilities.
- Reduce CAPEX & OPEX expenses with a consolidated, extensible solution & automated management
- Reduce downtime & trips to remote locations with instant remote access
- Minimize MTTR, downtime, & expenses with secure, centralized remote device access & control
- Increase site reliability with open industry standard hardware & easy-to-use software

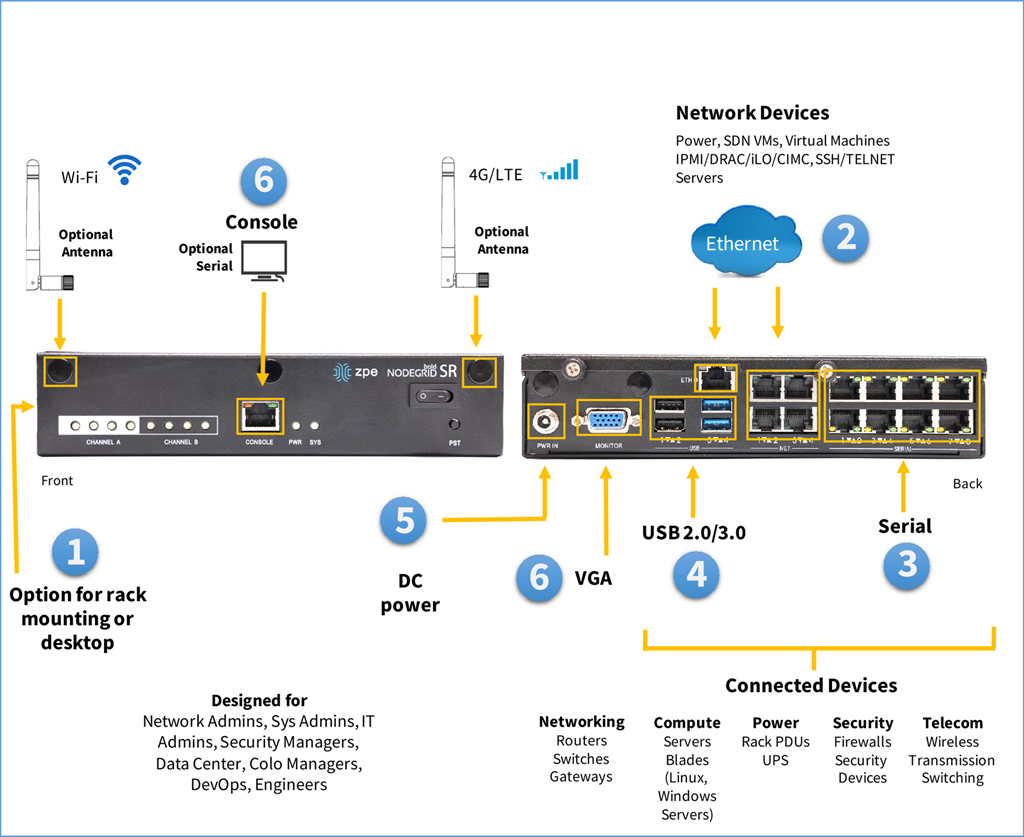

Nodegrid Bold SR with Wi-Fi is fast, secure, versatile and reliable. Bold in features and capabilities, BSR supports a variety of connection methods: serial, network, and USB. You get in-band and out-of-band remote access, power control, sensors and IT device health monitoring, alert notifications, actionable data, network backup, and more!

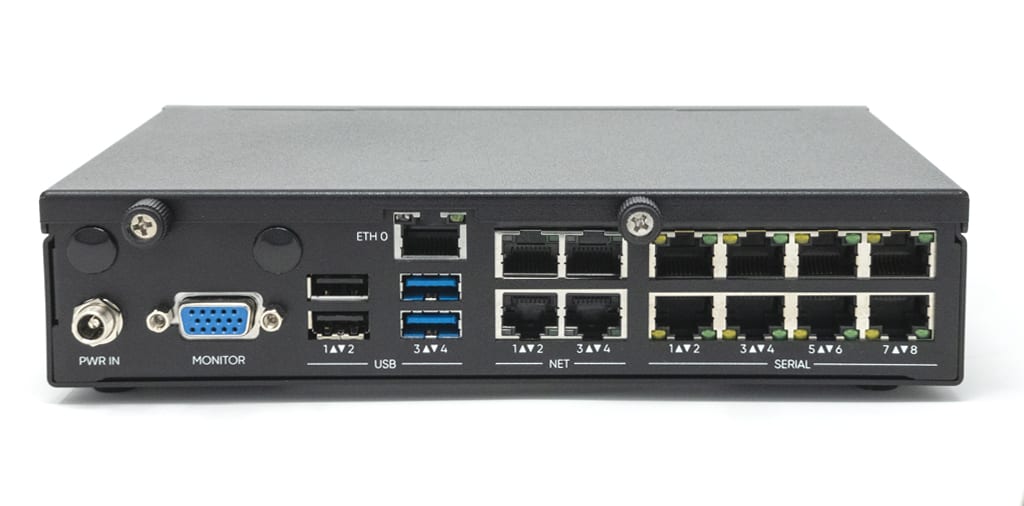

ZPE-BSR-24-BASE Rear
The ZPE-BSR-24-W5 is the direct replacement for the Raritan Dominion SX II DSX2-4M and DSX2-8M. The ZPE-BSR-24-W5-DC is an optional Replacement for the DSX2-4M-DC and DSX2-8M-DC. Get the same dependable SX II features, now with Nodegrid's advanced security & flexibility.
ZPE-BSR-24-W5 Package Contents
- (1) ZPE-BSR-24-W5: ZPE Nodegrid Bold SR, 8x RJ45 Serial rolled, 5x GbE, 2-Core Intel 64-bit CPU, 4GB DDR3, 32GB SLC, Wi-Fi 5. Single AC Power supply and cord included.
or (1) ZPE-BSR-24-W5-DC: ZPE Nodegrid Bold SR, 8x RJ45 Serial rolled, 5x GbE, 2-Core Intel 64-bit CPU, 4GB DDR3, 32GB SLC, Wi-Fi 5. Single DC-in power supply included. - (1) Wi-Fi Antenna
- (1) User Guide
- (1) Warranty Card - 2 Years
ZPE-BSR-24-W5 Resources & Support
ZPE Systems Nodegrid Bold SR Datasheet (PDF)Nodegrid Bold SR online Help
Prevalidated Virtualized Applications
Migrating from Raritan's Dominion SX II to ZPE Systems
ZPE Systems ZPE-BSR-24-W5 (ZPE-BSR-24-W5-DC) Specifications
| CPU | Intel x86_64 Multi-Core |
| Memory & Storage | 4 GB of DDR3 DRAM, 32 GB SATA SSD |
| Interfaces | 8 x RJ45 Serial ports 1 x RS-232 serial console port on RJ45 1 x Gigabit (10/100/1000BT) Ethernet interfaces on RJ45 4 x Gigabit (10/100/1000BT) Ethernet interfaces on RJ45 with Built-in Switch 2 x USB 3.0 Host on Type A 2 x USB 2.0 Hosts on Type A 1 x Wi-Fi 1 x VGA port |
| Software Specifications | |
| Port Access | Direct access by port name, TCP port, device name and IPv4/IPv6 High performance port login: <1 sec on SSH, <3 sec on Telnet 1,000+ simultaneous sessions Port sharing Command line interface (CLI) Port custom field support, port icon configuration, port search Device clustering across multiple Nodegrid units DeviceURL™ bookmarks, FireTrail™ secure tunnels Break-over SSH support |
| System Management | Extensible automated control based on actionable real-time data Web GUI management portal, command line interface (CLI), Linux root shell Zero Touch Provisioning for configuration and firmware updates Multiple and customizable user levels of access Auto-discovery via network scan NTP support, global time zone support SNMP |
| Access Protocols | HTTPS, SSHv1 and SSHv2, optional HTTP and Telnet |
| Device View Options | Tree, Table, Geo Map, Node and WEB with NodeIQ™ natural language search |
| Security | X.509 SSH certificate support, 4096-bit encryption keys Selectable cryptographic protocols for SSH and HTTPS (TLSv1.2, TLSv1.1, TLSv1) Selectable cypher suite levels: high, medium, low, custom SSL VPN - Client and Server IPsec with support for multi sites Local, AD/LDAP, RADIUS, TACACS+, Kerberos authentication Local, backup-user authentication support User-access lists per port Group/role-based authorization: AD/LDAP, RADIUS, TACACS+ Fine grain and role based access control Firewall - IP packet and security filtering, IP forwarding support MD5 / SHA System Configuration Checksum™ System event syslog Custom security settings Strong password enforcement |
| Operating System | Built-in 64-bit Linux kernel 4.x and Yocto-based CustomKit™ SDK |
| Infrastructure Specifications | |
| Power | 12 VDC via external 100-240 VAC, 50/60 Hz adapter or Optional DC power input (ZPE-BSR-24-W5-DC) Power consumption 25 W typical |
| Physical | Front-Rear mounting brackets Size (L x W x H): 142 x 201 x 44 mm (5.5 x 7.9 x 1.73 in) Weight: 1.2 kg (2.6 lb) Shipping weight: 2.3 kg (5.0 lb) Shipping (L x W x H): 313 x 313 x 140 mm (12.3 x 12.3 x 5.5 in) |
| Environmental | Operation: -20 to 50° C (-4 to 122° F), 20-90% RH, non-cond. Storage: -20 to 67° C (-4 to 153° F), 10-90% RH, non-cond. |
| Warranty | Two Years |
This page includes options for both the AC and DC versions of the Nodegrid Bold SR Wi-Fi 5 enabled unit. For DC power input applications, choose the ZPE-BSR-24-W5-DC, For the standard AC power input, select the ZPE-BSR-24-W5.
