Icron Ranger 110 USB Extender

00-00005G

$462.00$345.00
Save $117.00

Discontinued
Recommended replacement: Icron USB 2.0 Ranger 2104
Alternative options: Contact Us

International Version
Yes (+$40.00)

The Icron 00-00005 USB Ranger is designed for end user applications. It provides all the flexibility of extended range USB in a ready-to-use package. The Icron 00-00005 extender is fully compliant with the USB 1.1 Specification and supports all USB benefits, including remote device powering, plug and play, and increased bandwidth.

Icron's products use standard Category 5 UTP cable (the same wiring used in Ethernet). The technology behind the product, ExtremeUSB does not require additional software for either the computer or target devices.

Icron Ranger 110 USB Extender (00-00005) products have two separate units: the Local Extender (LEX) and the Remote Extender (REX); both of which come in this package. Conventional USB cables are used to connect the LEX to the host computer and to connect one or more remote USB devices to the REX. The Category 5 UTP cabling connects the LEX and the REX can be up to 100 metres in length.

The Icron Ranger 110 USB Extender (00-00005) offers the flexibility of locating the power at either the LEX or the REX. Depending on where the power is supplied the Icron USB Ranger 110 can support both high-power and low-power USB devices.

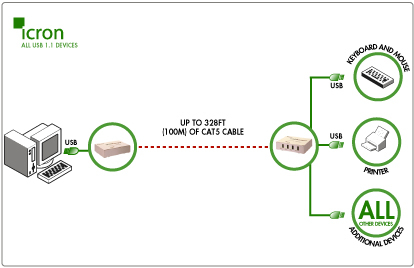

Icron Ranger 110 USB Extender (00-00005) Function Diagram
Icron Ranger 110 USB Extender (00-00005) Function Diagram

Icron Ranger 110 USB Extender (00-00005) Features and Benefits:

  • Flexibility of locating the power at either the LEX or the REX
  • Icron USB Ranger 110 will support 1 high-powered USB device
  • Comes with a USB cable, power supply and User Guide
  • Fully compliant with USB 1.1 Specification
  • Number of devices can be expanded using standard USB hubs
  • Total system shipping weight 1.1 kg (2.4 lb)

Icron Ranger 110 USB Extender (00-00005) Specifications:

Mechanical LEX unit REX unit
Dimensions 107mm x 84mm x 34mm (4.25" x 3.4" x 1.4") 107mm x 84mm x 34mm (4.25" x 3.4" x 1.4")
Weight 0.3 kg (0.6 lb) 0.3 kg (0.6 lb)
Connectors
Upstream 1 x USB Type B 1 x RJ-45
Downstream 1 x RJ-45 4 x USB Type A (Ranger 410) 1 x USB Type A (Ranger 110)
Temperature range 4°C to 40°C
Range (over Category 5 UTP cable) 100 meters (330 ft)
Power available to USB at each REX port 1 x 500mA (Ranger 110)
4 x 100mA (Ranger 410 with power at LEX)
4 x 500mA (Ranger 410 with power at REX)
Power adapter capacity 15V DC @ 1A (connected at LEX or REX)
USB cable (included) 2 meters (6.6 ft)
Regulatory testing FCC, CE Class A
Question: NEED AVAILABILITY OF 1 EACH USB RANGER 410 AND VOPEX-2V-H PLEASE.
Answer: Thank you for your inquiry. Unfortunately, the USB RANGER 410 is no longer available. However, the replacement USB Ranger 2104 is in stock and can ship out as soon as Monday.

Question: Do you have any Icron 00-00005G's in stock
Answer: Thank you for you inquiry. We do not have any of this discontinued product in stock. Icron recommends the USB Ranger 2201 (P/N:00-00297) for replacement. https://www.kvm-switches-online.com/00-002971.html.

For additional Stocking questions please contact your KVM Switches Online representative at 1-877-586-6654.
