Icron Fiber Ranger 422i USB Extender



Replaced by: Icron Ranger 2224
Alternative options: Contact Us

The Icron USB Ranger 422 (00-00037) extends the benefits of ExtremeUSB technology to greater distances! The fiber-optic transmission system built into the Icron USB Ranger 422 enables you to place USB devices 500 meters away from their host. Since the Icron USB Ranger appears to the operating system to be a generic USB hub, it is compatible with all operating systems that support hubs - Windows 98, ME, 2000, XP, Apple, Linux and more. No additional software is required!

IIcron USB Ranger 422 (00-00037) products have two separate units: the Local Extender (LEX) and the Remote Extender (REX). Conventional USB cables are used to connect the LEX to the host computer and to connect one or more remote USB devices to the REX. The LEX and REX units are interconnected with up to 500 meters of 2-strand multimode fiber (not included).

Icron USB Ranger 422 (00-00037)

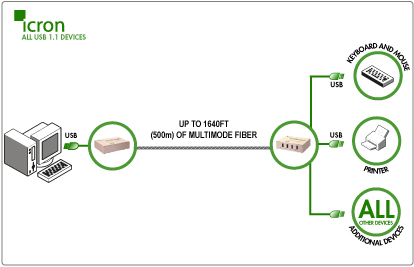

Icron USB Ranger 422 (00-00037) Function Diagram

Icron USB Ranger 422 (00-00037) Features and Benefits:

  • ExtremeUSB technology extends the range of USB devices up to 500 meters using fiber-optic cable
  • Remote Extender (REX) is equipped with 4 USB ports
  • Provides support for both low-power and high-power USB devices
  • Comes with a USB cable, power adapters and User Guide
  • Power adapters are available for North American (110V) and International
    (110-240V) applications
  • Fully compliant with USB 1.1 Specification as certified by the USB Implementer's Forum
  • Number of devices can be expanded using standard USB hubs

Icron USB Ranger 422 (00-00037) Specifications:

Mechanical LEX unit REX unit
Dimensions 114mm x 106mm x 38mm (4.5" x4.2" x 1.5") 114mm x 106mm x 38mm (4.5" x4.2" x 1.5")
Weight 0.3 kg (0.6 lb) 0.3 kg (0.6 lb)
Upstream 1 x USB Type B 1 x MT-RJ
Downstream 1 x MT-RJ 4 x USB Type A
Temperature range 4°C to 40°C
Range (over Category 5 UTP cable) 500 meters (1600 ft)
Power available to USB at each REX port 4 x 500mA (Ranger 410i with power at REX)
Power adapter capacity 15V DC @ 1A (connected at LEX and REX)
USB cable  2 meters (6.6 ft)
Regulatory testing FCC, CE Class A
