Minicom Smart IP KVM Extender



Recommended replacement: Adder IPEPS
Alternative options: Contact Us

Raise Productivity, Reduce Costs The Smart IP Extender extends your keyboard, video and mouse to provide sophisticated remote KVM access via IP to servers. Working from their desks, homes, or any location in the world, network administrators can manage, configure, troubleshoot and reboot remote servers. With the Smart IP Extender, businesses can increase the productivity of their IT staff while saving the costs of downtime, travel, and expensive service calls.

Secure Data Protection
The industry 's most secure encryption guards your corporate data through every kind of remote access, to efficiently prevent hacking and security breaches.

Browser-Based Access
Featuring integrated system management, the Smart IP Extender fits easily into existing IT environments. And its browser-based functionality avoids the need to install proprietary software on client or server.

BIOS-level, Multi-Platform
The Smart IP Extender lets you connect directly to servers on the BIOS level, and is compatible with all major KVM switching systems. Together with the Minicom Phantom, it can remotely access and control mixed environments, including PS/2,SUN,and USB devices.

Choose Access via Internet, LAN, or Modem
The Smart IP Extender gives you convenient access using standard TCP/IP connections to mission-critical servers through the Internet or LAN. And if the network is down, you can reach remote servers via DSL, ISDN, modem, or back-up LAN.

Multiple Remote Access Applications
The Smart IP Extender can be used for a wide range of applications:

  • Remote KVM access to any single computer or racks of servers
  • Network administrators maintaining servers across the campus or the world
  • Technicians troubleshooting remote PCs from their own offices or homes
  • Call Centers providing remote computer support for home workers
  • Help desks supplying technical support to customers
  • Software vendors providing remote support

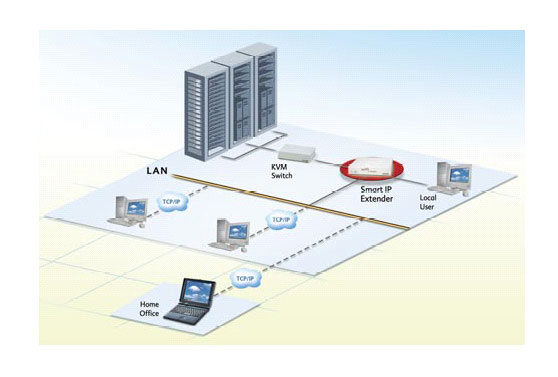

Technical Diagrams

Features and Benefits
  • Extend your KVM via IP across the building or across the world
  • Remote KVM access to any single computer or racks of servers
  • Highly secure encryption protects sensitive corporate data
  • BIOS-level access gives complete network and OS independence
  • Slash the costs of downtime, travel expenses, and service calls
  • Choose access via Internet, LAN, or modem
  • DSL, ISDN or analog modem back up in case of network failures
  • Browser-based access
  • 1 year warranty
Technical Specifications
Operating System Novel, Linux, Windows 98, ME, 2000, XP and later Windows 98, ME, 2000, XP and later, Linux (Local Computer)
Internet browser with full Java support (Remote Computer)
Resolution Up to 1280x1024 @60Hz (recommended resolution should be higher than resolution on local computer)
Local Mouse Driver Microsoft Driver or Operating System default mouse driver
Smart IP Unit to Local KVM Connection Screen - HDD15 Keyboard/Mouse MiniDin6
Smart IP Unit to Local KVM Connection 3 in 1 Cable 1.8m
HD15-MiniDIN6-MiniDIN6(both supplied with system)
Line Connection RJ45 - LAN, Autosensing 10/100 Mbit/s
RJ45 - Euro ISDN (EMEA Version only) 2x64 kbit/s
Serial connection 2 x DB9 COM1 for initial configuration and external modem, COM2 for power management only
Product Weight 1.48 Kg/3.26 lb
Dimensions 225x220x43 mm
Power Supply 85 - 265 VAC
50/60 Hz
Warranty 1 year
Operating Temp 0°C to 40°C
Storage Temp -40°C to 40°C
