Minicom Smart 16 Port IP/CAT5 KVM Switch



Recommended replacement: Adder AVX1016IP-USA
Alternative options: Contact Us

The Minicom Smart 0SU21025 is a 16 port, multi-platform, single user Smart 16 IP KVM switch, which gives secure local and remote IP access and multiple management options of up to 16 servers at a time; hundreds when cascaded. It features remote power management functionality. The rack mountable, 1U sized Smart 16 IP features the innovative CAT5 RIC cable to eliminate cable clutter and powerful OSD, serial and push button control.

The Minicom 0SU21025 Smart 16 IP is an ideal solution for computer or server rooms that are operated by one administrator and need the flexibility to work from a local or remote location.  The industry's most secure encryption, using 128-bit SSL protocol, guards your corporate data through every kind of remote access, to efficiently prevent hacking and security breaches.  As an out-of-band solution, the Smart 16 IP lets you connect directly to servers on the BIOS-level to access and control mixed environments, including PS/2, SUN, USB and RS-232 devices.

The Smart 16 IP gives you secure access using standard TCP/IP networks to your critical data. The Smart 16 IP's browser-based functionality avoids the need to install proprietary software on client or server.

The Minicom 0SU21025 Smart 16 IP can be used for a wide range of applications:

  • Local or remote KVM access to computer rooms or server racks
  • Whenever businesses require constant contact with servers, wherever they are
  • Network administrators maintaining servers across the campus or the world
  • Technicians troubleshooting remote PCs from their own offices or homes

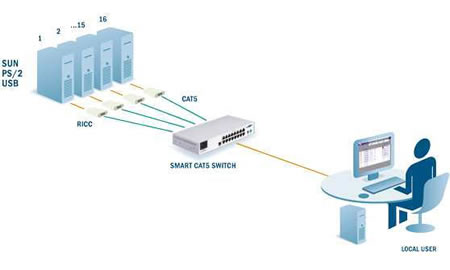

Minicom Smart CAT5 KVM Switch Diagram

Minicom Smart CAT5 KVM Switch Diagram

Minicom 0SU21025 Features and Benefits:

  • Single user 16 port KVM Switch - with IP access
  • Local analog access for multiple servers at the rack
  • Remote digital access over LAN, WAN or Internet
  • Remote power management functionality
  • Powerful control - OSD, serial or push button
  • Innovative CAT5 RIC cable technology- eliminate cable clutter at the rack
  • Extend distance between computers and switch up to 10 meters, or remotely via IP
  • Space saving - sleek, 1U rack mountable KVM switch
  • 128-bit SSL encryption - secure data transfer
  • Multiple control options - on-screen display with serial or push button control
  • Flexible - scalable, modular solution lets you buy extra RIC cables, as you need them
  • Multi-platform - PS/2, SUN, and USB support
  • 3 year warranty

Minicom Smart IP 0SU21025 Specifications:

Height 1.62 in. (41.5 mm.)
Width 8.44 in. (215 mm.)
Depth 4.34 in. (122 mm.)
Weight 2.2 lbs. (1000 g.)
Operating Temperature 0°C to 40°C / 32°F to 104°F
Storage Temperature  -40°C to 70°C/-40°F to 158°F
Supply 85 - 265 VAC 50/60 Hz
System RJ45
Serial RJ11
Local KVM HDD15/MinDin6/MiniDin6
Number of Ports 16
Resolution Up to 1600x1200@75Hz
Maximum Distance 33 ft. (10 m.)
System Cable CAT5 FTP or UTP 2x4x24 AWG solid wire
Management OSD, Hot Key, Push Button, Serial
Mouse PS/2, Wheel mouse, Intellimouse, 5-button mouse
Operating System Dos, Windows (3.1, 9x, 2000, NT4, ME, XP, 2003 Server) Linux, Unix, QNX, SGI, FreeBSD, BeOS, Open VMS, Novell 3.12-6, Alpha UNIX, HP UX, SUN
