Minicom Smart 16-Port CAT5 KVM Switch



Recommended replacement: Adder AVX1016IP-USA
Alternative options: Contact Us

The Minicom Smart 0SU22003 is a 16 port, single user Cat5 KVM switch.  This sleek, 1U sized Smart CAT5 switch features CAT5 cable to eliminate cable clutter, and powerful on-screen display control and management. The 16 port CAT5 Switch supports up to 16 computers letting you control and operate your server room racks with just one keyboard, monitor and mouse.  Rack mounting kit is included.

Note: Buy platform-specific Minicom RIC (Remote Interface Connection) cables to support PS/2, SUN, and USB, as and when you need them.

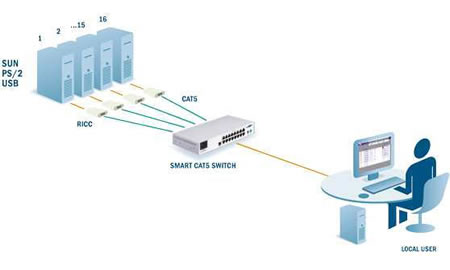

Minicom Smart CAT5 KVM Switch Diagram

Minicom Smart CAT5 KVM Switch Diagram

Minicom 0SU22003 Features and Benefits:

  • Control 16 computers from one KVM console
  • RIC (Remote Interface Connection) cable technology
  • Extend distance between computer and switch up to 10 m/33ft.
  • Rack mountable: 1U space saving KVM switch
  • Innovative CAT5 technology
  • Multi-layer security protects your corporate data
  • Better server management: choice of On Screen Display, serial port or push button control
  • Multi-platform: PS/2, SUN, and USB support

Minicom Smart 0SU22003 Specifications:

Height 1.62 in. (41.5 mm.)
Width 8.44 in. (215 mm.)
Depth 4.34 in. (122 mm.)
Weight 2.2 lbs. (1000 g.)
Operating Temperature 0°C to 40°C / 32°F to 104°F
Storage Temperature  -40°C to 70°C/-40°F to 158°F
Supply 85 - 265 VAC 50/60 Hz
System RJ45
Serial RJ11
Local KVM HDD15/MinDin6/MiniDin6
Number of Ports 16
Resolution Up to 1600x1200@75Hz
Maximum Distance 33 ft. (10 m.)
System Cable CAT5 FTP or UTP 2x4x24 AWG solid wire
Management OSD, Hot Key, Push Button, Serial
Mouse PS/2, Wheel mouse, Intellimouse, 5-button mouse
Operating System Dos, Windows (3.1, 9x, 2000, NT4, ME, XP, 2003 Server) Linux, Unix, QNX, SGI, FreeBSD, BeOS, Open VMS, Novell 3.12-6, Alpha UNIX, HP UX, SUN
