Minicom DX832 8-User 32-Server Cat5 KVM Switch

0SU60003A

$4,950.00

Discontinued
Recommended replacement: Raritan P2-UMT832M
Alternative options: Contact Us

The Minicom 0SU60003 is a Matrix DX 8 User, 32 CPU, KVM Switch for the DX matrix system.  The Minicom DX system gives you a highly secure, integrated, flexible and supremely scalable solution for 24x7 BIOS-level control and management of high-density mission critical server environments.  It enables up to eight IT managers to simultaneously access hundreds of servers and network devices from any location.

The DX system provides five functions in one unified solution: KVM switching and control, Serial control, power management, user management and remote access. These functions are unified by Minicom's Advanced Integrated Management interface (AIM). AIM is a hardware embedded, Windows-like interface providing out-of-band BIOS level access, topology-independent viewing, and point-and-click management for all KVM and Serial hardware in the server environment.

The Minicom DX allows you to seamlessly cascade additional switch layers, allowing you to add hundreds of servers, all controlled from the same AIM interface. AIM ensures that users experience a transparent, topology-independent view of their servers and devices, without the complication of viewing the additional hardware or physical connections.

The DX features user-name and password authentication including up to 32 user profiles and 4 levels of user access rights for increased protection. Additional security is provided by the ability to relate user names to their designated servers regardless of changes to their port configuration.

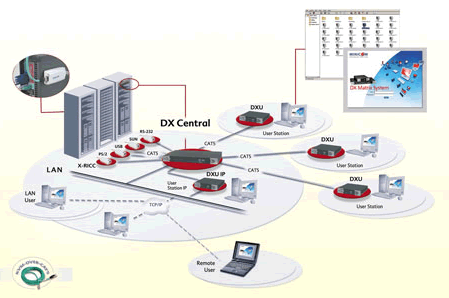

Minicom DX Matrix System Application Diagram
Minicom DX Matrix System Application Diagram

Minicom DX832 Specification:

Mechanical
Height 1.6 in. (4 cm.)
Width 11 in. (27 cm.)
Depth 17 in. (43 cm.)
Rack Mountable Yes
Power
Consumption 100 - 250 VAC 50/60 Hz
Cables/Connectors
Computer Ports 32 x RJ45
User Ports 8 x RJ45
Serial Ports 2 x DB9
LAN RJ45
