Minicom Power On Cable, Bulk Kit of 4

0SU60024

$595.00

Discontinued
Replaced by: Minicom by Tripplite PoC 0SU60020
Alternative options: Contact Us

The Minicom 0SU60024 is a 4 pack of the Minicom Power on Cable.  Power on Cable (PoC) is a single port power control (SPPC) device that enables remote power control (power on/off/reboot) of any connected device.  The PoC is complementary to Minicom's line of OOB remote KVM access solutions, which together provide the complete remote support package.  The PoC is serially controlled via a Minicom KVM IP gateway thus preventing costly mistakes and ensuring the power commands are sent only to the required device.

The PoC is targeted at any IT environment that includes mission critical computers, servers or network and monitoring devices, which require 24/7 remote power management to ensure systems are up and running at all times. These include computer rooms, server rooms, data centers, production lines, distributed intelligent devices, industrial applications and more. Minicom's PoC solves the problem of power control to remote IT infrastructure in cases where a PDU cannot provide enough electrical current or when the number of ports are not optimized to the application.

Its unique and robust "power cord" design meet the stringent requirements of cable management in IT environments and make it extremely easy to slide several units together and control several devices through the same interface.

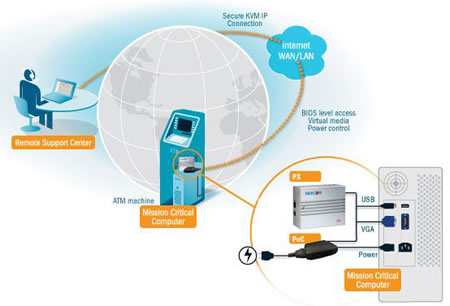

Minicom Power on Cable Application Diagram
Minicom Power on Cable Application Diagram

Minicom 0SU60020 Features:

  • Seamless integration with Minicom KVM/IP devices
  • Modular design allows expandability
  • 90 - 260 VAC 44 - 66 Hz International coverage
  • Current consumption up to 10A
  • Customer's Real Needs add to install base as and when needed
  • Flexible power redundancy
  • Unique design & zero U footprint
  • Easy 3rd party integration with open standard protocol
  • Galvanic Separation - no physical connection between management and power device

Minicom 0SU60020 Specifications:

Mechanical
Dimensions 3.62 x 1.68 x 1.16 in.
(92 x 42 x 29.50 mm.)
Environmental
Operating Temperature 0°C to 50°C
Storage Temperature -15°C to 50°C
Relative Humidity 0 - 95%
Electrical Rating
Input Voltage 90 - 260VAC
Input Frequency 44 - 66Hz
Max. Output Current 10Amp
Connectors
Input Receptacle C14
Output Power Cable C13 + 150cm Cable
Communication Ports IrDA Transmit & Receive
Communication
Protocol Standard RS232
Baud Rate 1200bps
Distance 4 - 8m
LED Indicator
Green LED Input Power Status
Red LED Output Power Status
