Minicom by Tripplite Smart 116 IP: 16 Port Single User Digital KVM Switch

0SU70030A

$1,396.98

Discontinued
Replaced by: Tripp Lite B072-016-1-IP
Alternative options: Contact Us

The Minicom by Tripplite Smart 116 IP 0SU70030 is a 16 port single user digital KVM switch which gives a system administrator secure, BIOS level access and control to a rack of up to 16 servers either remotely or locally. The rack mountable, 1U sized IP KVM switch features innovative ROC (RICC on Cable) dongle technology that directly connects the Smart 116 IP to each server in the rack, eliminating cable clutter and providing 30m/100ft of range between the server and switch.  For bigger applications such as globally distributed servers or data centers, Smart 116 IP can be managed seamlessly under Minicom by Tripplite's KVM.net centralized management system - making it the ideal solution for forward looking corporations requiring a versatile, high-performance KVM switch today, and centralized management tomorrow.

The industry's most secure encryption, using 128-bit SSL protocol, guards your corporate data through every kind of remote access, to efficiently prevent hacking and security breaches.  As an out-of-band solution, the Smart 116 IP KVM switch lets you connect directly to servers at the BIOS-level and gives access and control over mixed platforms, including PS/2 and USB devices.

Minicom by Tripplite Smart 116 IP Backside
Minicom by Tripplite Smart 116 IP Backside

Minicom by Tripplite Smart IP KVM Switch Features:

  • Remote digital access over LAN, WAN or Internet
  • Local analog access to multiple servers at the rack
  • Compatible with KVM.net centralized management system
  • Innovative CAT5 ROC technology eliminates cable clutter at the rack
  • Extends distance between servers and switch up to 30 meters/100ft
  • Space saving - sleek, 1U rack mountable
  • Multi-platform - PS/2, and USB support

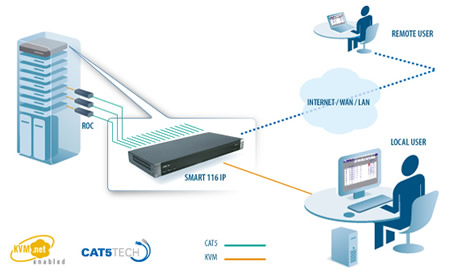

Minicom by Tripplite IP KVM Switch Application Diagram
Minicom by Tripplite IP KVM Switch Application Diagram

Minicom by Tripplite 0SU70030 Specifications:

Mechanical
Height 1.6 in. (41 mm.)
Width 17 in. (431 mm.)
Depth 6.93 in. (176 mm.)
Weight 5.6 lbs. (2.54 kg.)
Shipping Weight 6.6 lbs. (3 kg.)
Environmental
Operating Temperature 0°C to 40°C / 32° to 104°F
Storage Temperature -40°C to 70°C / -40° to 158°F
Power Supply 85 - 265 VAC 50 / 60 Hz
Connection Type
RJ45 LAN Auto sensing 10/100 Mbit /s
DB9 RS232 Application
RJ11 Service
HDD15/MiniDin6/MiniDin6 Local KVM Connection
Number of Remote Units 16
Operating System Host & Remote:
DOS, Windows (3X, 9X, 2000, NT4, ME, XP), LINUX, QNX, FreeBSD, BeOS, Novell 3.12-6, SUN
Resolution
Host 1600x1204@85Hz
Remote Recommended, resolution should be higher than local computer resolution
Maximum Distance 100 ft. (30 m.)
System cable CAT5 UTP/FTP Solid Wire 2x4x24 AWG
Host Mouse Driver Microsoft Driver or Operating System default mouse driver
Question: What is the warranty?
Answer: Thank you for your inquiry. Te Minicom by Tripplite Smart 116 IP comes with a 3-year limited warranty.
