Minicom Classperfect Kit w/ Transmitter, Line Splitter and 3 Remote Units

0VS22039A

$950.00

Discontinued
Recommended replacement: ADDER INFINITY Digital KVM Matrix
Alternative options: Contact Us

The Minicom 0VS22039 is the Minicom ClassPerfect Kit which includes a Transmitter, Line Splitter and 3 Remote Units.  ClassPerfect is the only CBT system that lets you broadcast rich multimedia in real-time, yet also utilize the full range of classroom management tools you can only get from CBT software.  Minicom's ClassPerfect enables you to send graphically rich screens to all your student computers in real-time without experiencing the frustrating delays and crashes of network-dependent communication.

ClassPerfect lets you take control of your students' keyboard, video and mouse, darken all your students' screens, and set groups of students to different tasks. The ClassPerfect system also lets class members enjoy chat, two way audio, and messaging systems. And the two most widely used functions, darken all and master to all, can be operated either by computer mouse click or by the hand operated ClassPerfect control.

With ClassPerfect 0VS22039, the teacher can monitor student screens and view their active tasks. To achieve complete classroom interaction, the teacher can demonstrate concepts or show a student's solution by broadcasting any screen in the class to any other, in real-time.  ClassPerfect's wide range of functions make it the ideal solution for schools, colleges, universities, and corporate, military and government training centers.

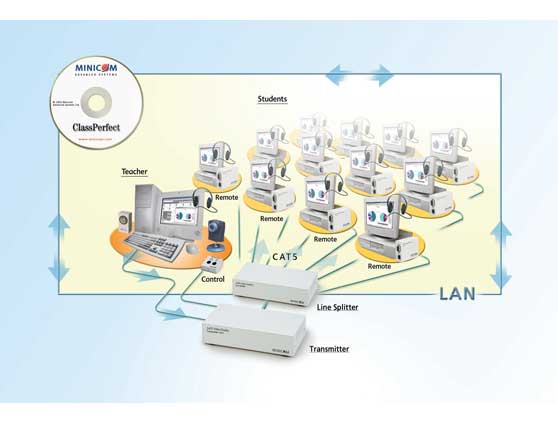

Minicom ClassPerfect Application Diagram
Minicom ClassPerfect Application Diagram

Minicom ClassPerfect Features & Benefits:

  • Help a student solve a problem by taking full control of their computer
  • Blackout student screens for undivided student attention
  • Transmit files to/from student computers - distribute and collect tests or hand out grades
  • Run a program simultaneously on all student computers with one click of the teacher's mouse
  • Divide a class into groups and assign separate curricula

ClassPerfect System Requirements:

  • Teacher Computer:
    • Pentium III - 450 Mhz or higher
    • Windows Me or 98, NT4, Windows 2000, XP, Windows 2003 Server
    • 128 MB RAM or higher recommended
    • 10 MB free Hard disc space
    • 10/100 Mbps Network Card
  • Student Computer
    • Pentium II - 350 Mhz or higher
    • Windows Me or 98, NT4, Windows 2000, XP, Windows 2003 Server
    • 128 MB RAM or higher recommended
    • 10 MB free Hard disc space
    • 10/100 Mbps Network Card
  • Network Requirements
    • TCP/IP Protocol
    • 10/100 Mbps Hub, 100 Mbps Network Switch is recommended
  • Graphic Requirements
    • Any graphic adapter supported by Windows
  • Audio Requirements
    • Windows Compatible sound device
    • Microphone
    • Speakers or headphones

Minicom 0VS22039 Kit Specifications:

Mechanical Transmitter Line Splitter Remote
Height 1.6 in. (4.2 cm.) 1.6 in. (4.2 cm.) 1.34 in. (3.4 cm.)
Width 5.9 in. (15 cm.) 4.76 in. (12 cm.) 3.31 in. (8.41 cm.)
Depth 3.7 in. (9.4 cm.) 3.78 in. (9.6 cm.) 2.87 in. (7.29 cm.)
Power External Power Adapter 12VDC 2A External Power Adapter 12VDC 2A From Previous Unit
Cables & Connectors
Video In HDD15M N/A N/A
Video Out HDD15F N/A N/A
CPU VGA N/A N/A HDD15M
Screen N/A N/A HDD15F
System In N/A RJ45 RJ45
System Out 1 port RJ45 8 ports RJ45 N/A
Mic / Headphone / Sc
In/Out
Jack N/A N/A
Audio In/Out N/A N/A Jack
Controller MiniDin8F N/A N/A
Serial Control DB9 N/A N/A
Environmental
Operating Temperature  0° C to 40° C/32° F to 104° F
Storage Temperature -40° C to 40° C/-40° F to 104° F
Sync
Horizontal/Vertical Sync Polarity Positive/Negative
Sync TTL compatible
Resolution Up to 1600x1200 @ 75Hz
Input/Output Video Signals Analog signal red, green, blue 0.7v p-p 75 Ohm
System Cable CAT5 Shielded FTP Cable 2x4x24AWG
Maximum Distance 110m/360ft
Audio Mono
