Minicom Digital Signage CAT5 Video Display Dual Remote Receiver



Recommended replacement: Adder ALAV100P
Alternative options: Contact Us

The Minicom Digital Signage by Kramer VDS-RD is a dual port remote video receiver unit which is a part of the Minicom DS Video Display System.  The VDS  is the quickest, most efficient way to move multimedia content from player to multiple displays.  A one-to-many, point-to-multi-point system for transmission of high quality video (VDS) or audio and video (AVDS), the system distributes rich multimedia content in real-time from any type of player to multiple display devices.

Minicom DS's VDS provides the flexibility you need for a customized digital signage installation, allowing you to position your display devices up to 110m/360ft from the player. Mount displays strategically in public view; keep the hardware needed to run multimedia content out of public reach.  VDS is one of the more cost effective ways to get a digital signage system up and running in your place of business. For large displays, the cost of plasmas with built-in CPU can be prohibitive. A dedicated, out-of-band system like the VDS lowers the cost of displays significantly.

This VDS Remote Dual Screen remote receiver provides simultaneous support for two display units at the same location.  The VDS Remote Dual Screen lets you double the monitors in the system and saves on CAT5 cable and installation costs. Like the VDS Remote, it can be connected to either a VDS Broadcaster or VDS Line Splitter and receives its power from the CAT5 cable.

The Minicom DS VDS consists of the following components (each sold separately):

  • Broadcaster/Transmitter (8 port) and Compact Control Unit
  • Line Splitter (8 port)
  • Remote for every display device

Minicom DS VDS Features:

  • Max Resolution - 1080p.
  • System Range - 110m (360ft).
  • Cost Efficient Transmission - Transmit to two back−to−back screens via a single (dual screen) remote.
  • Out-of-Band System - For fast image transfer.
  • Local PC Input - On remote for classroom control applications.
  • Power Over CATx - No need for power supply at the remote side.
  • No Player or Computer Needed at Display End.
  • Optional Remote - On/off screen control.
  • 3 Year Warranty

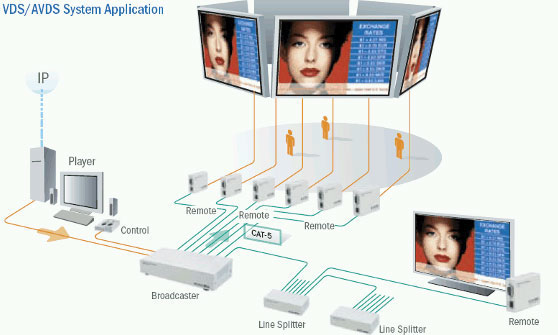

Minicom DS Video Display System Application Diagram
Minicom DS Video Display System Application Diagram

Minicom DS VDS Dual Remote Receiver Unit Specifications:

Height1.7 in. (42 mm.)
Width4.6 in. (118 mm.)
Depth3.8 in. (96 mm.)
Operating Temperature 0° C to 40° C/32° F to 104° F
Storage Temperature -40° C to 70° C/-40° F to 158° F
Humidity 80% non condensing relative humidity
Power12V DC, 2A (broadcaster & splitter); via CAT 5 cable (remote units)
System In1 x RJ45
VGA Out2 X 15-pin HD (F)
Horizontal/Vertical Sync PolarityPositive/Negative
SyncTTL compatible
ResolutionUp to 1920x1080 @ 60Hz, 1080p
(depending on the cable length)
Input/Output Analog signal red, green, blue
0.7v p-p 75 Ohm
Maximum Distance110m/360ft

The Minicom DS VDS-RD was formally known as the 0VS23022, 0VS23022A, OVS23022 or OVS23022A
