Adder Audio Video Extender Pair, Point-to-Point



Replaced by: Adder ALAV100T
Alternative options: Contact Us

The AdderLink AV Series ALAV100P consists of AV-series transmitter (ALAV100T) and receiver (ALAV100R). This KVM extender system delivers high video resolutions and quality audio up to 300m/1000 feet using standard CATx cable (x= 5,5e,6,7). Designed for use in Digital Signage applications, the design of this extender allows for flexible distribution that can grow in line with project developments and ensures direct delivery of crystal clear communication to consumers at the point of decision.

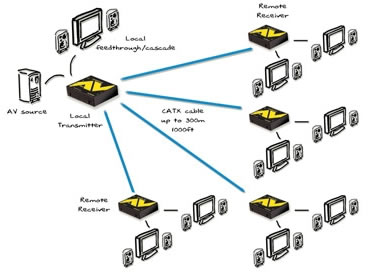

Adder AV-Series KVM Extender System Diagram
Adder AV-Series KVM Extender System Diagram

Adder ALAV100P Features:

  • Extends high-resolution video and high fidelity audio up to 300m
  • Local port on transmitter to connect local screen and speakers or for cascading other AdderLink AV 100T transmitter units
  • AdderLink AV 100R duplicates input from transmitter allowing for 2 video and 2 audio outputs
  • Can be used as a receiver up to 300m from AdderLink AV 100T or AdderLink AV 104T transmitters
  • Extends video and audio across a single CATx cable
  • Extra fine video quality at resolutions up to 1600 x 1200 at 200m and 1280 x 1024 at 300m
  • High fidelity click less digital audio (16bit, 44.1 kHz, stereo)
  • Independent sharpness and brightness control
  • DDC support
  • Feed through / cascade port at transmitter
  • Dual video and audio outputs at receiver
  • Use stand alone or rack mount 16 modules across 3U
  • Advanced spike suppression circuits for reliability in 'noisy' installations
  • All metal construction
  • Power / video indication confirm correct operation
  • Adjustable cable equalization amplifiers
  • Audio transmitted as digital signals to ensure high fidelity and low noise levels

Adder ALAV100P Package Includes:

  • AV100R receiver unit
  • AV100T transmitter unit
  • IEC style power supply and power cord
  • Safety and installation leaflet
  • CD manual
  • Stick on rubber feet

Note: the rack panels are not included and need to be purchased separately as required

Adder ALAV100P Specifications:

Height 0.98 in. (25 mm.)
Width 3.8 in. (98 mm.)
Depth 3.7 in. (95 mm.)
Temperature Tolerance 0-40°C (32 to 104°F)
Humidity Tolerance 5 to 60% non-condensing
Operating Voltage 100-240VAC
Power Frequency 50-60Hz
Usage 5VDC at 500mA
Video Resolutions
1600 x 1280 up to 200 meters/650 feet
1280 x 1024 up to 300 meters/1000 feet
Distance Up to 300 meters/1000 feet using CATx (x=5,5e,6,7)
Technology Differential analogue signaling for video signals
Approvals FCC class A, CE marked

This product is the replacement for the CatLinc VGA-L.
