SwitchView PC 2-Port PS/2 KVM Switch



Recommended replacement: Avocent Cybex SV220
Alternative options: Contact Us

The Avocent SwitchView PS/2 KVM (2SVP10-001) desktop switches are a perfect buy for small offices and home offices. This affordable KVM switch adds both control and flexibility to your desktop. The Avocent SwitchView PS/2 KVM (2SVP10-001) switch lets you control two PS/2 computers from one keyboard, monitor and mouse --- adding valuable desktop space for other peripherals. Lighted LED indicates which computer you are accessing and audible indicators confirm channel switching. With color-coded cables for easy installation, customizable channel selections and error free boot up, the  Avocent SwitchView PS/2 KVM (2SVP10-001) switch offers you the most complete desktop KVM features at the industry's most affordable price.

 Avocent SwitchView PS/2 KVM (2SVP10-001)

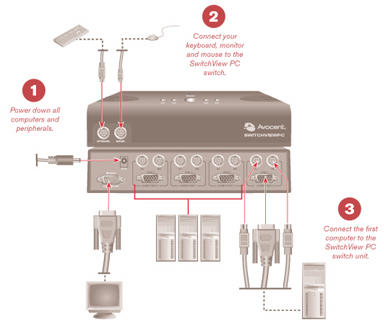

 Avocent SwitchView PS/2 KVM (2SVP10-001) Function Diagram

 Avocent SwitchView PS/2 KVM (2SVP10-001) Features and Benefits:

  • Compact, space-saving KVM switches eliminates desktop clutter
  • Supports two PS/2 computers
  • 2048 x 1536 VGA resolution ideal for desktop graphical applications
  • Push-button or keyboard hotkeys for channel selections
  • Auto scanning allows easy monitoring of attached computers
  • Easily add computers without powering down the KVM switch or attached computers
  • No additional power supply required
  • Error free boot up with keyboard and mouse emulation
  • Backed by Avocent 2 year warranty and technical support
  • Also available in a 4-port model

 Avocent SwitchView PS/2 KVM (2SVP10-001) Specifications:

Height 1.7 in (4.3 cm)
Width 5.0 in (12.7 cm)
Depth 3.0 in (7.62 cm)
Weight 1 lb (.45 kg)
Power Frequency Input 9V DC @1A external transformer (adaptor is optional) normally power is drawn from the PC PS/2 port.
Supported Hardware
Computers PS2
Monitor (VGA, SVGA, XGA, QVGA, SXGA, UXGA, QXGA) Maximum resolution of 2048 X1536
Peripherals USB (2.0) Keyboard and Mouse or PS/2 Keyboard, PS/2 Mouse, IntelliMouse (PS/2 only), IBM Scroll Point, Logitech 2 Button, Logitech Trackball Scroller, Microsoft Trackball Scroller, Microsoft Scroller, Microsoft Intelleye Five Button
Approved Agency En55022 Class B, EN55024,61000-3-2,6100-3-3, FCC 15 Class B, CE
