Avocent SwitchView 1000 8 Port KVM Switch Cables Included



Recommended replacement: Cyberview CV-S801
Alternative options: Contact Us

The Avocent 8SV1000BND1-001 is a bundle that  includes the 8-port SwitchView 1000 rack mount KVM switch and four 6-foot CBL0029 and four 9-foot CBL0030 KVM cables.  This single user 8 port switch has an on-screen display (OSD) and supports a 2048 x 1536 high video resolution that is ideal for graphical applications. With a 1U high design, the compact SwitchView 1000 8-port switch does not compete for valuable rack space in SMB server rooms.  The SwitchView KVM switch password protection feature gives you the benefit of added security access to your business-critical servers.

Avocent SwitchView 8SV1000-01 Backside
Avocent SwitchView 8SV1000-01 Backside

Avocent 8SV1000BND-001 Features & Benefits:

  • On-screen display (OSD): Simple control through an on screen menu
  • Password protection Secure: access is based on password protection
  • Programmable autoscan: Customize scanning times between attached systems
  • Flash upgradeable: Convenient upgrades mean that the product never goes out of date
  • USB hot key switching: Switch via USB keyboard sequence
  • Daisy chain - auto initialization: Connect multiple units together without complicated configuration
  • USB & PS/2 system/target support: Supports both PS2 and USB systems
  • USB & PS/2 peripheral/user support: Supports PS/2 or USB peripherals to control a mix of PS/2 or USB systems
  • 1U height: Fits perfectly into a standard rack. Does not use a large amount of valuable rack space
  • Video resolution: 2048 x 1536 video resolution supports the most demanding server room applications
  • Ships with 8 Combo cables: Uses a three-in-one KVM cable that supports USB or PS/2 target devices (4 x 6 foot and 4 x 9 foot)

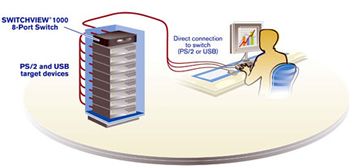

Avocent SwitchView 1000 KVM Switch Diagram
Avocent SwitchView 1000 KVM Switch Diagram

Avocent 4SV1000BND1-001 Package Content:

  • 1 8SV1000 4-port PS/2-USB KVM Switch
  • 4 CBL0029 6' Cables
  • 4 CBL0030 9' Cables
  • 1 User Manual

Avocent 8SV1000BND-001 Specifications:

Height 1.75 in. (4.45 cm.)
Width 16.14 in. (41 cm.)
Depth6.49 in. (16.5 cm.)
Weight4.19 lbs. (1.9 kg.)
Operating Temperature32 to 104 F (0 to 40 C)
Storage Temperature-4 to 140 F (-20 to 60 C)
Operating Voltage5V
Power Frequency60 Hz
InputDC 9V
Supported Hardware
ComputersPC, Mac, Sun [with USB or PS/2 interface]
Monitor2048 x 1536 maximum
PeripheralsPS/2 keyboard, PS/2 mouse, USB keyboard, USB mouse, VGA monitor
Approved Agency FCC, CE, C-Tick, UL, cUL
UPC / EAN Barcode icon
UPC 636430042176
EAN 0636430042176
Question: the price USD391.76 is included free shipping to Hong Kong ?
Answer: Thank you for your inquiry,

Free shipping is only available for orders shipped within main-land USA (not including Alaska and Hawaii).

For more information on ordering to Hong Kong, please refer to our International Order Policy and our Free Shipping Policy
