ATEN Port Compact Bitronics Parallel Auto Switch



Recommended replacement: Rose Porter PO-4P Data Switch
Alternative options: Contact Us

ATEN AF142 Port Compact Bitronics Parallel Auto Switch
The ATEN AF142 is a reversable Bitronics Auto Switch that will operate in either, one computer to two printers mode, or two computers to one printer mode, called respectively 1 to 2 mode and 2 to 1 mode. ATEN AF142 switches operate in 2 to 1 mode without software drivers and deliver print jobs to the printer on a first come, first served basis. This means that if one computer is printing to the printer the other computer must wait for the Auto Switch to finish the current print job. The ATEN AF142, when operating in 1 to 2 mode, uses the AS Ware driver to select which printer of the attached to the Auto Switch will print the print job. You can only be printing to one printer at a time unless both printers are identical and you wish to rapidly produce many copies of the same document. The ATEN AF142 can go into a unique "broadcast" mode and both printers will print the exact same document, leaving you with two copies.

ATEN AF142 Features:

  • Supports IEEE-1284 nibble mode
  • Capable of File Transfer between attached computers
  • Select port through manual button or remote port setting through the as ware port selection
  • Selectable timeout; 15 or 45 second
  • Operates on a First-come First-served basis
  • Capable of non-powered operation
  • Reversible, will operate in either 1 to 2 mode or 2 to 1 mode
  • Supports unique broadcast mode

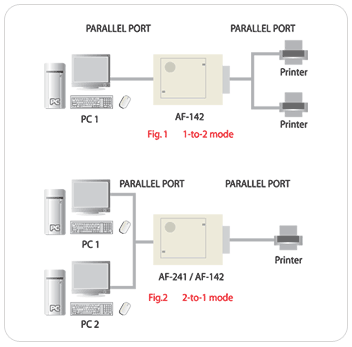

ATEN AF142 Function Diagram
ATEN AF142 Function Diagram

Package Content:
1 x AF-142
1 x User Manual
1 x 3.5" Floppy


Width 11.0 in. (28.0 cm)
Height 10.0 in. (25.4 cm)
Length 20.5 in. (52.1 cm)
Case Qty. 40
Package Dimensions
Depth 5.2 in. (13.2 cm)
Height 1.3 in. (3.2 cm)
Width 4.8 in. (12.1 cm)
On Line 2 (Printer Activity)
Case Plastic
Package Wt. 0.5 lb. (0.3 kg)
Unit Wt. 0.5 lb. (0.3 kg)
Case Wt. 19.8 lb. (9.0 kg)
Width 3.4 in. (8.5 cm)
Length 4.0 in. (10.2 cm)
Height 1.0 in. (2.6 cm)
Cable Length 19.7 ft. (6.0 m) (HP 24542D Recommended)
Input Arbitration First Come First Served
Broadcast Yes
Timeout selection 15, 45 seconds
Power Consumption DC 9V 100mA (Max.)
Port Selection Input 2 --> 1: Auto / Manual PC Selection; Output 1 --> 2: Software / Manual Printer Selection
Peripheral Sharing Yes
File Transfer Yes
UPC / EAN Barcode icon
UPC 672792150449
EAN 0672792150449
