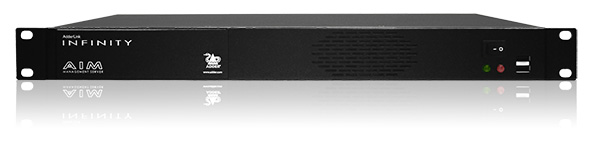

ADDERLink INFINITY 192-Channel Manager Device

AIM-192-US

$11,895.00

Discontinued
Replaced by: Adder AIM-24
Alternative options: Contact Us

Model: AIM-192-US

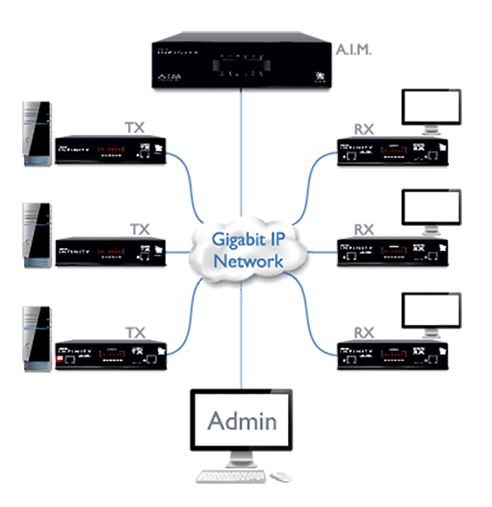

The A.I.M. management server is a control suite which transforms AdderLink Infinity extenders into a digital matrix solution. Using standard IP infrastructure it is possible to route any user station to any computer attached to the network without any compromises to video quality or control. It allows co-operative sharing of computers and the multicasting of video to any destination.

  • Supports 192 End Points
  • Intuitive, multi-lingual user interface
  • Multiple switching methods
  • Configurable user access rights
  • Full audit trail
  • Easy centralized management
  • Open API for 3rd party control
  • Sun, PC and Mac compatible
  • RJ45 Interface
  • Hourly to Weekly automatic database backups
  • Centeralized Firmware Updates - Push updates to hundreds of devices, system-wide in minutes

AdderLink Infinity

Learn More About Adder INFINITY Series

Product Specifications

HardwareIndustrial spec server with solid state memory.
SoftwareClosed system operating Linux
Physical Design19 in. 1U rack mountable chassis in a robust metal construction.
DimensionsWxHxD 17 x 1.73 x 9 inches (432x44x230 mm)
6 lbs. (2.75kg)
PowerExternal power IEC input unit, 100-240 VAC 50-60Hz
1.5A input to power adapter. 12VDC, 60W output.
Operating Temperature32° to 104°F (0° to 40°C)
ApprovalsCE, FCC
