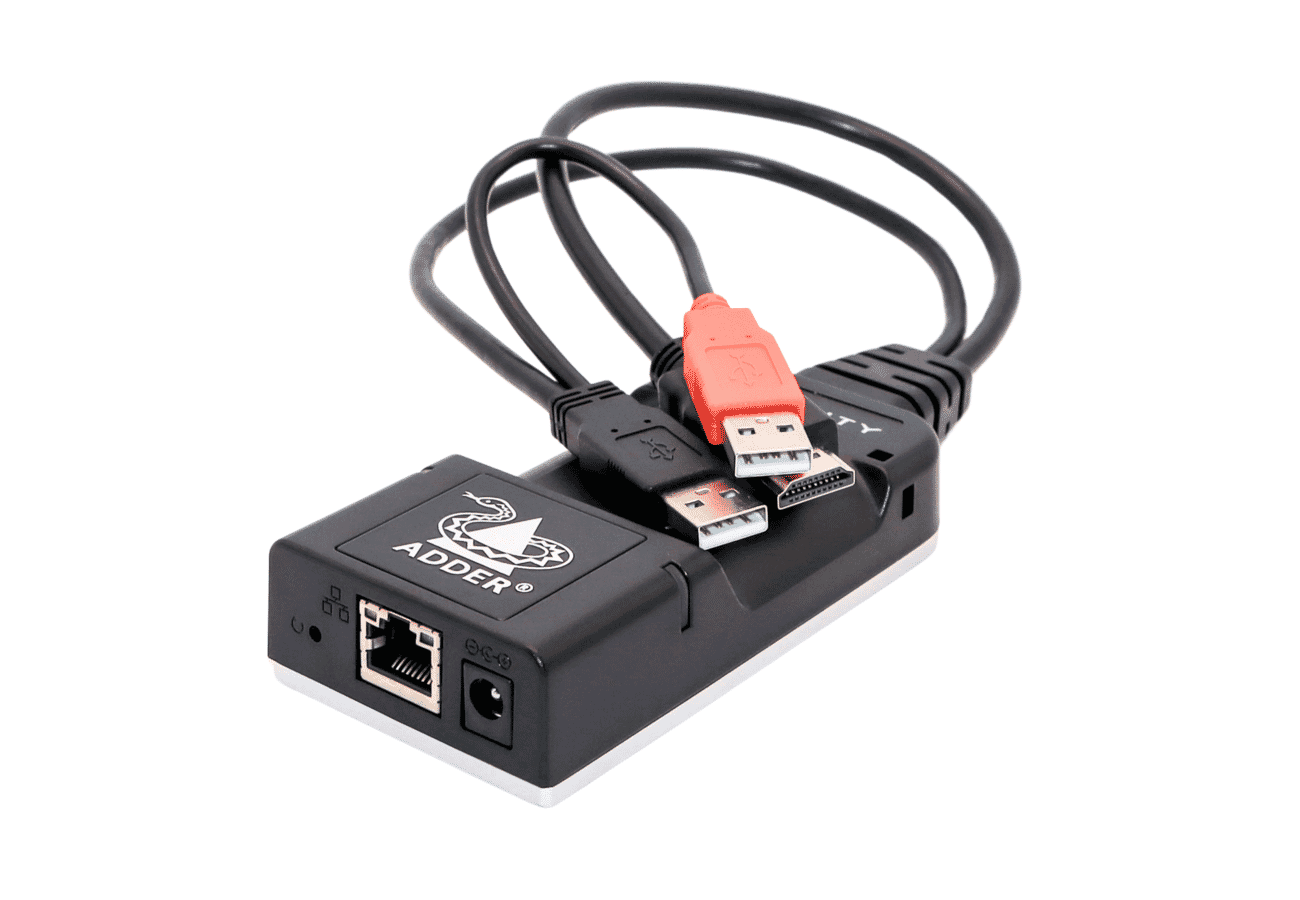

ADDERLink INFINITY 102T HDMI High performance ZeroU IP KVM dongle for extension or matrix of video, audio and USB over a single cable.

ALIF102T-HM

$1,265.00$1,201.75
Save $63.25
FREE Shipping on orders over $100
For Government Pricing
Contact Us

ADDERLink Infinity ALIF102T-HM is a Zero-U, high performance single-cable HDMI KVM Transmitter with USB and Audio. The ALIF102T-HM transmitter requires at least one ALIF RX receiver to operate.

Part of the ADDERLink INFINITY series, the ADDERLink Infinity 102T is the world's smallest high performance KVM extender transmitter that enables you to locate your critical computing hardware in a secure and temperature controlled environment, isolated from the user work station. This KVM extender can be used as a point-to-point extender, or integrated into a wider matrix system when combined with the ADDERLink INFINITY Manager (A.I.M.).

ALIF102T-DP Transmitter Diagram
ALIF102T-HM Transmitter Application

See Detailed Layout

  • DisplayPort configuration: 2560x1600@60Hz (or 1920x1080@120Hz), 8-bpc color depth
  • Zero-U form factor - takes ZeroU of rack space in the server room allowing for ultimate flexibility and ease of installation.
  • Perfect Digital Video, Real-Time Control - Using a spatially lossless encoding system, with 1:1 pixel mapping, the ALIF102T provides pixel-perfect and color accurate video with no artifacts. The digital video received is the same as the digital video leaving the remote computer.
  • USB 2.0 with Class Control - Supports USB devices including graphics tablets, jog shuttles, joysticks and 3D explorers, alongside mass storage devices. For secure applications, the system can disable the use of non-HID devices, meaning there is no need to physically block USB ports to prevent the use of mass storage devices.
  • Support for Dithered Video - Allows analog or noisy video to pass through the system, along with computers, that dither the video to enhance the perceptive image quality. Some Mac computers use this technique.
  • Flexible and Scalable Extender or Switch - Each ALIF102T model can be configured as part of a simple extender or self-managed distributed KVM switch. Each receiver can see up to 16 sources and rapidly switch between them.
  • ADDERLink® INFINITY Matrix - With the addition of the ADDERLink® INFINITY Management (AIM) system, you can turn multiple point-to-point extenders into a scalable digital KVM matrix system that allows any workstation to link with any computer connected to the network.

Adder ALIF102T-HM Features

  • Digital Audio - The system can deliver USB stereo audio (bi-directional) or embedded video standard stereo audio (uni- directional).
  • USB powered - Using under 3 Watts, the device can be powered from USB. This means there is no need to provision for an external PSU. Options for powering from an external PSU or redundant PSU are available.
  • EDID Management - Intelligent EDID management allows the true characteristics of the monitor to be passed back to the computer. This ensures perfect video display without additional configuration.
  • Plug and Play -ADDERLink INFINITY devices are delivered in a zero configuration state so you can plug them in and start working on them straight away. There is no need for drivers or software to be installed.
  • Flexible solution - from point-to-point extender to an infinitely extensible matrix used for IT administration or broadcast

ALIF102T-DP Package Contents

Adder ALIF100T-DP Package Contents

  • (1) ALIF102T-HM Transmitter
  • (1) Information wallet containing: Quick start guide and Safety document
  • (1) 2-Year Limited Warranty & Lifetime World Class Support

Optional Extras

ALIF102T-HM Resources

Adder Infinity ALIF100T-DP Manual Screenshot Adder ALIF102T-HM Datasheet (PDF)
Adder ALIF102T-HM Quick Start Guide (PDF)
Adder ALIF102T-HM Manual (PDF)


Adder ALIF102T-HM Specifications

Mechanical
Length 4.3 in. (110 mm.)
Width 2.2 in. (55 mm.)
Depth1.0 in. (25 mm.)
Weight0.4 lbs. (0.2 kg.)
ConstructionABS and aluminum construction
Environmental
Operating Temperature0 to 50°C / 32 to 122°F.
Storage Temperature0 to 40°C / 32 to 104°F.
Operating / Storage Relative Humidity10-90% non-condensing
Altitudeto 2000m
Power
USB Power2 x USB 2.0 (2x 500mA @5V) 5W
External Power (optional)5VDC, 1A
Typical power consumption3W
Feature Specification
USBSupports USB2.0 devices (low, full and high speed). Security feature allows the blocking of non-HID devices. Extending isochronous devices is not supported (e.g. USB audio or video devices)
Max video resolutionup to 1x 2560x1600@60Hz (or 1920x1080@120Hz), 8-bpc color depth
AudioUSB audio stereo 2-channel 16-bit 48kHz (bi-directional)
HDMI Audio 2 channel linear PCM
EthernetSupport for 1GbE CATx (no 10/100 support)
Cable length rulesEthernet specifications rules apply 328 feet (100 meters) maximum run
Peripheral connectionsComputer: 1 x HDMI, 2 x USB 2.0 type A,
Ethernet: 1 x 8p8c (RJ45) for AdderLink Infinity network connections
Power: 2.5mm socket
CompatibilityAll computers with DisplayPort, USB, Cat5e and above - requirement dependent.
Does not support HDCP or CEC control
ApprovalsCE, cULus - E476334, FCC, ICES, RCM, UKCA
StandardsANSI 63.4, EN55032 /CISPR 32, EN55035/CISPR 35, EN61000-3-2, EN61000-3-3, EN63000, FCC pt15B, ICES003
OthersCal Prop 65, China ROHS, EU REACH, UK REACH

This part is the replacement for the Adder ALIF101T-HDMI.
