Avocent Desktop User Station



Replaced by: Avocent AMX5111-001
Alternative options: Contact Us

The Avocent AMX5100 desktop user station adds an additional RJ45 port to connect a local computer using an AMIQ server interface module. The user station provides access from your desk to an Avocent AMX KVM switch.  The AMX5100 connects to the user's multi-platform peripherals and sends the KVM signals over an industry standard CAT 5 cable to the AMX matrix switch. AutoTuning technology is an Avocent exclusive. The AutoTuning technology automatically compensates for varying cable types and lengths and adjusts for signal losses each time a switch is made to the server. The AMX5110 user station works with the patented OSCAR GUI. The OSCAR interface uses multi-lingual, intuitive menus for click and connect system configuration and server selection.

Avocent AMX5100

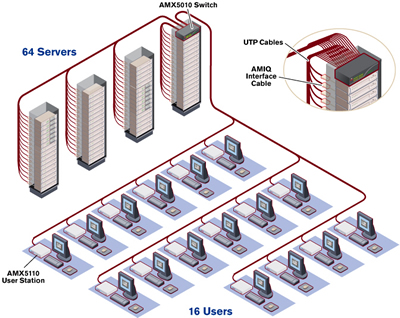

Avocent AMX5100 Function Diagram

Avocent AMX5100 Features and Benefits

  • Allows a desktop user to access a local computer, using an AMIQ server interface module, and matrix computers - all from one user interface
  • Ships with the AMIQ server interface module for convenient connections from PS2-based servers to the AMX switch
  • Supports multi-platform peripherals: PS/2 and Sun
  • Provides high-quality video
  • Automatically compensates for varying cable types and lengths: CAT 5 and CAT 5e including GigaFlex
  • Offers video resolutions up to 1024 x 768 at 1,000 feet
  • Works with patented OSCAR GUI to assist with configuration and server selection

Avocent AMX5100 Specifications:

Height 1.74 in. (4.4 cm)
Width 10.9 in. (27.9 cm)
Depth 11.5 in. (29.2 cm)
Weight 5 lbs. (2.0 kg)
Operating Temperature 32F (0C) to 122F (50C)
Storage Temperature 4F (-20C) to 122F (50C)
Operating Voltage 100 - 240 VAC
Power Frequency 50 - 60 Hz
Input 1 Amp MAX
Supported Hardware
Computers PS/2 and Sun
Monitor VGA, SVGA, XGA, SXGA, up to 1600 x 1200 @ 75Hz resolution
Peripherals PS/2 keyboard, PS/2 mouse, IntelliMouse (PS/2 only), Sun Type 5 and Type 6
Approved Agency UL,CUL,FCC,VCCi,CE
