Avocent Desktop User Station



Replaced by: Avocent AMX5121-001 AMX User Station
Alternative options: Contact Us

The Avocent AMX5120 desktop user station doubles as a monitor stand and provides access from your desk to one AMX KVM matrix switch and one local computer. The Avocent AMX5120 system connects to your multi-platform KVM peripherals and sends the KVM signals over an industry-standard UTP cable to an Avocent AMX5120 matrix switch. Avocent exclusive AutoTuning technology allows the Avocent AMX5120-AM user station to automatically compensate for varying cable types and lengths, including CAT 5, CAT 5e and CAT 6. AutoTuning technology adjusts for signal losses each time a switch is made to a server.  The AMX5120-AM user station works with the patented OSCAR on-screen interface. The OSCAR interface uses multi-lingual, intuitive menus for click and connect system configuration and server selection.

Avocent AMX5120-AM Features & Benefits:

  • Ships with the AMIQ server interface module for convenient connections from PS2-based servers to the AMX switch
  • Supports multi-platform peripherals: PS/2 and Sun
  • Allows you to access and control one local computer
  • Provides high-quality video:
  • Automatically compensates for varying cable types and lengths: CAT 5, CAT 5e and CAT 6 including GigaFlex
  • Adjusts for skew between RGB signals each time a switch is made to a server
  • Offers video resolutions up to 1280 x 1024 at 1,000 feet
  • Works with patented OSCAR on-screen graphical interface to assist you with configuration and server selection

Avocent AMX5120-AM

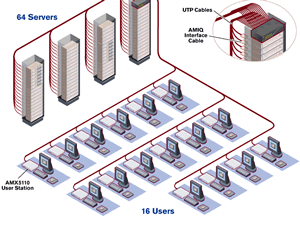

Avocent AMX5120-AM Diagram

Avocent AMX5120-AM Specifications:

  • Mechanical
    Height 1.74 in. (4.4 cm)
    Width 10.9 in. (27.9 cm)
    Depth 11.5 in. (29.2 cm)
    Weight 5 lbs. (2.0 kg)
    Operating Temperature 32F (0C) to 122F (50C)
    Storage Temperature 4F (-20C) to 122F (50C)
    Operating Voltage 100 - 240 VAC
    Power Frequency 50 - 60 Hz
    Input 1 Amp MAX
    Supported Hardware
    Computers PS/2 and Sun
    Monitor VGA, SVGA, XGA, SXGA, up to 1600 x 1200 @ 75Hz resolution
    Peripherals PS/2 keyboard, PS/2 mouse, IntelliMouse (PS/2 only), Sun Type 5 and Type 6
    Approved Agency UL,CUL,FCC,VCCi,CE
