SmartAVI RS232 & Stereo Sound Point to Point CAT5 Extender
AR-100S
The SmartAVI AR100 RS232 audio CAT5 extender allows you to extend any full Duplex RS232 with any stereo sound up to 3000ft using a single unshielded CAT5 cable.

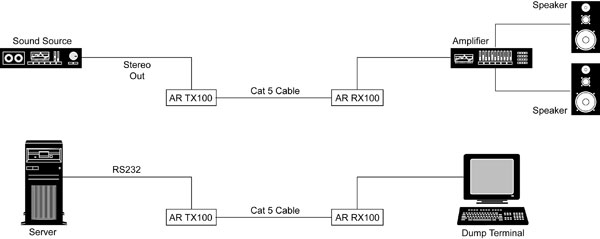

SmartAVI Cat5 Extender Diagram
- Unbalanced stereo line level analogue audio to be transmitted via UTP CAT5 Hi-fidelity audio frequency response
- Extend any touch screen up to 3000ft
- Extend any sound system up 3000ft
- Supports all protocol and baud rates
- Uses easy to install inexpensive CAT5
- Output reaches up to 3000 feet
- Compatible with line level stereo audio signals
- High ground loop immunity
- Built-in lightning, power surge and transient protection
- Remote units come with buffered outputs
- Compact enclosure
- Fully transparent path for all protocols and data transfers
SmartAVI AR100 Package Includes:
- ARTX100 Transmitter
- ARRX100 Receiver
- 5VDC power supply (PS5VD1AU) 2units
SmartAVI AR100 Specifications:
| Mechanical | |
| Height | 0.08 in. (2 mm.) |
| Width | 2.75 in. (69.85 mm.) |
| Depth | 3.4 in. (86.3 mm.) |
| Weight | 0.20 lb (0.09 kg.) |
| RS232 | (TX - DB9Female) (RX - DB9Male) |
| Protocol | Full duplex, transparent to all baud rate |
| Audio | |
| Signal Type | Stereo Audio |
| Bandwidth | 15MHz, 0dB |
| Impedance | 100 Ohm |
| Connector | 3.5mm mini jack, Femal |
| Cat5 | UTP CAT5, up to 3300ft |
| Power | 5VDC |
UPC 813280020695
EAN 0813280020695
