ATEN Flash/Net Parallel Printer Receiver



For upgrade or replacement options: Contact Us

ATEN AS248R Flash/Net Parallel Printer Receiver (w/ 25)
The Flash/Net system is a printer sharing network in which up to 24 computers (as many as 64 when adapters are used), can easily share up to 8 printers using inexpensive 4-wire straight-through RJ-11 cabling in a Bus, Star, or Tree topology. Printers are selected either with a manual controller or by software. With a throughput of up to 22 Kbytes per second (making it faster than any similar network), this advanced, power-free printer network eliminates the need for multiple auto switches and heave, tangled, cables. Easy installation and ease of operation make Flash/Net™ suitable for users of all levels. Simply plug a transmitter unit into the PC's parallel port; a receiver unit into the printer; connect the units with 4-wire straight-through RJ-11 cabling; and you are ready to go. Transmitters and receivers can be daisy chained allowing up to 24 PCs (as many as 64 with adapters) to connect with up to 8 printers.

ATEN AS248R Features:

  • Centronics and RS-232 Models can be intermixed
  • Works in Bus/Star/Tree topologies
  • Software or ManualPrinter selection (Requires optional EA-100 unit)
  • Simultaneous Printing Capability
  • Data Transfer Rate: 22 Kbytes per second
  • Distance: up to 366m (1200')
  • No external power required
  • FCC Approved

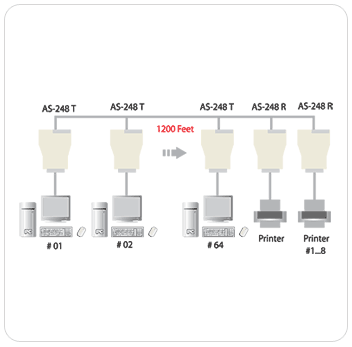

ATEN AS248R Flash/Net Parallel Printer Receiver Function Diagram

ATEN AS248R Flash/Net Parallel Printer Receiver Function Diagram

ATEN AS248R Specifications:

Width 18.3 in. (46.4 cm)
Height 8.3 in. (21.0 cm)
Length 22.0 in. (55.9 cm)
Case Qty. 20
Package Wt. 1.0 lb. (0.5 kg)
Case Wt. 16.5 lb. (7.4 kg)
Input Arbitration First come first served
Connectors (Output) 1 x Centronics C-36 Male
Connectors (Input) 2 x 6P4C Jacks
Cable Length 1200 ft. (365.76 m.)
UPC / EAN Barcode icon
UPC 672792150258
EAN 0672792150258
