ATEN Flash/Net Parallel Printer Transmitter

AS248T

$49.00
FREE Shipping on orders over $100

ATEN AS248T Flash/Net Parallel Printer Transmitter (w/ 25)
The ATEN AS248T Flash/Net system is a printer sharing network in which up to 24 computers (as many as 64 when adapters are used), can easily share up to 8 printers using inexpensive 4-wire straight-through RJ-11 cabling in a Bus, Star, or Tree topology. Printers are selected either with a manual controller or by software. With a throughput of up to 22 Kbytes per second (making it faster than any similar network), this advanced, power-free printer network eliminates the need for multiple auto switches and heave, tangled, cables. Easy installation and ease of operation make Flash/Net suitable for users of all levels. With ATEN's AS248T, simply plug a transmitter unit into the PC's parallel port; a receiver unit into the printer; connect the units with 4-wire straight-through RJ-11 cabling; and you are ready to go. Transmitters and receivers can be daisy chained allowing up to 24 PCs (as many as 64 with adapters) to connect with up to 8 printers.

ATEN AS248T Flash/Net Parallel Printer Transmitter Features and Benefits:

  • Centronics and RS-232 Models can be intermixed
  • Works in Bus/Star/Tree topologies
  • Software or ManualPrinter selection (Requires optional EA-100 unit)
  • Simultaneous Printing Capability
  • Data Transfer Rate: 22 Kbytes per second
  • Distance: up to 366m (1200")
  • No external power required
  • FCC Approved

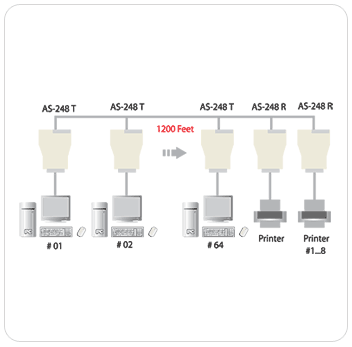

ATEN AS248T Function Diagram
ATEN AS248T Flash/Net Parallel Printer Transmitter Functions Diagram

ATEN AS248T Flash/Net Parallel Printer Transmitter Specifications:

Case
Width 18.0 in. (45.7 cm)
Length 22.0 in. (55.9 cm)
Height 8.5 in. (21.6 cm)
Case Qty. 20
Package Dimensions
Height 2.3 in. (5.7 cm)
Width 5.8 in. (14.6 cm)
Length 5.8 in. (14.6 cm)
Weight
Case Wt. 13.5 lb. (6.1 kg)
Package Wt. 0.5 lb. (0.3 kg)
Unit Wt. 0.5 lb. (0.3 kg)
Dimensions
Length 1181 ft. (360 m.)
Connectors (Output) 2 x 6P4C Jacks
Input Arbitration First come first served
Timeout selection 5 ~ 60 seconds
Power Consumption DC 9V 5mA
Connectors (Input) 1 x DB-25 Male
Cable Length 1181 ft. (360 m.)
UPC / EAN Barcode icon
UPC 672792150265
EAN 0672792150265
Question: do you have a similar produkt. The computer has no parallel port only usb or serial
Answer: Thank you for your inquiry. Unfortunately, there is not a similar product for USB or serial. There are however some products that will share a USB device amongst several computers. For instance, this product will share one USB device with up to four computers: https://www.kvm-switches-online.com/gub431.html.

Or, if you are just looking to extend the USB connection from printer to computer over a long distance, you may be looking for a USB extender. There are several USB extenders found on this page: https://www.kvm-switches-online.com/misc-extenders.html. Icron also makes a number of USB extenders which might be appropriate. https://www.kvm-switches-online.com/icron.html
