SmartAVI UXGA Router, 16 UXGA to16 Remote Monitors

AV16X16S

$5,999.00$4,674.55
Save $1,324.45
FREE Shipping on orders over $100

The SmartAVI AVRouter AV16X16 routes 16 UXGA to 16 Remote Monitors.  All signal formats are catered for including VGA, SVGA, XGA and UXGA. Standard VGA connectors (HD15 sockets) are used on the rear for ease of installation for video connectivity.  The AV16X16 contains a high bandwidth (400MHz) routing matrix for the Red, Green and Blue video channels and separate switching layers for stereo audio. The color signals and are then balanced internally and combined with the audio signals. The combined signal is then driven out through boosted signals.

The AV16X16 router can be controlled via a RS422 port connecting via a RJ45 on the front of the main chassis. Two connectors are provided for expansion, allowing a simple Cat5 patch cable to link to additional units. An adjustable rotary switch allows each unit to be assigned a unique ID read when the unit is first powered up. An optional Windows application (SmartNetControl) is available including a RS232 to RS422 converter.   In addition to the centralized control from a computer, each output can be selected individually at the remote receiver location.  There is an option for local audio output on the front of the unit to help accommodate multi-room audio systems. The audio is presented as Jack stereo pair. Output drivers allow the audio to be connected to any amplifier input at line level. The audio will follow whichever source device is selected.

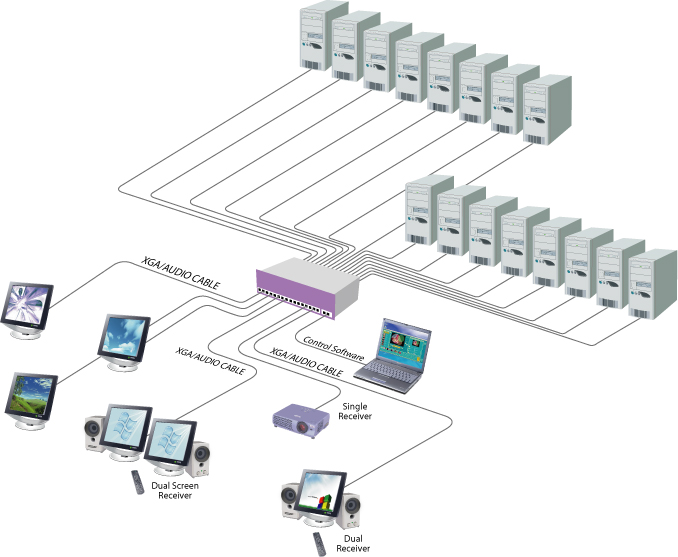

SmartAVI AVRouter Functional Diagram
SmartAVI AVRouter Functional Diagram

SmartAVI AV16X16 Features:

  • High quality video & audio switching
  • High resolution up to 1600 x 1200
  • Infra Red and RS422 control
  • PC Windows software control
  • Can be mixed with other video signal (RGB, YUV, RGBS)

SmartAVI AV16X16 Package Includes:

  • AV16X16 router
  • CC-PWR06-US
  • SM-R232R422
  • SM-RJ45RS422
  • CC-CAT5-05
  • Smart CONTROL software (SM-CSW )

SmartAVI AV16X16 Specifications:

Mechanical
Height 5.24 in. (13.30 cm.)
Width 19 in. (48 cm.)
Depth 11.25 in. (28.57 cm.)
Weight 20 lbs. (9 kg.)
Rack Space 3U
Power
Voltage 90-230V IEC 1A A/S 50/60 Hz
Video
In HD15 Female
Out HD15 Female
Bandwidth 400MHz
Input Signal Level 1Volt pk-pk into 75R
Output Impedance 100 Ohms
Input Impedance 75R Ohms
Connector HD15 socket
Format VGA/SVGA/XGA/RGBHV/
RGsB/CVBS/YC/YUV/RGBS
Syncs TTL5VDC
Bandwidth Horizontal Sync up to 85KHz
Audio
In 3.5m Stereo Jack
Out 3.5m Stereo Jack
Signal 15KHz 0dB unbalanced 100ohms impedance
Connector RCA or 3.5mm Stereo Jack
IR Individual control
RS422 Dual RJ45 sockets
UPC / EAN Barcode icon
UPC 813280020756
EAN 0813280020756
