Avocent AutoView 3100 Digital KVM Switch
AV3100-001
The Avocent Autoview AV3100-001 switch is a 16-port KVM system providing server access for one remote digital user and one local analog user. The AV3100-001 Digital KVM Switch includes local USB peripheral support and provides convenient access to PS/2, Sun, and USB servers and serial-based devices. The Avocent AutoView AV3100-001 on-board Web interface means that no additional software is required for remote server access.

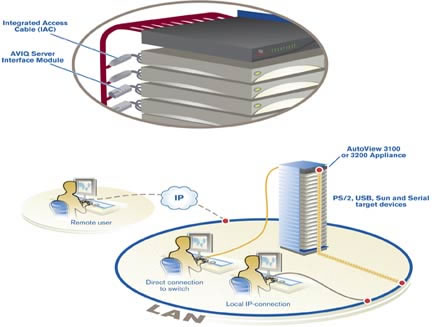

Avocent AutoView 3100 Diagram
AV3100-001 Features and Benefits:
- Access--16-port KVM switch provides flexible remote server access with one remote digital path and one local analog user.
- On-board Web interface--The user's PC requires no additional software for remote server access.
- Multi-platform support--Local PS/2 and USB connections and multi-platform target devices, including PS/2, USB, Sun and serial support
- Integrated access cabling or AVRIQ support--Lowers overall cost with CAT 5-designed integrated access cables for PS/2 or USB connectivity
- Encrypted IP communication--Switch supports SSL-128bit, DES, 3DES or AES encrypted communication
- Powerful user access control--64 user accounts with access control lists for each user classified by:
- User - KVM access only
- User Administrator - KVM access, and ability to configure users and user admin.
- Appliance Administrator - KVM, ability to configure user, user admins, and appliance administration and configuration
Avocent AutoView 3100 Technical Specifications:
| Mechanical | |
| Height | 1.72 in. (4.37 cm) |
| Width | 17.00 in. (43.18 cm) |
| Depth | 10.98 in. (27.98 cm) |
| Weight | 7.3 lbs (3.31 kg) |
| Style | Rack mount |
| Environmental | |
| Operating Temperature | 32 to 104 F (0 to 40 C) |
| Storage Temperature | -4 to 158 F (-20 to 70 C) |
| Power | |
| Operating Voltage | 100 - 240 VAC |
| Power Frequency | 50/60 HZ autosensing |
| Input | 40 W maximum |
| Supported Hardware | |
| Computers | PS/2, Sun, USB |
| Monitor | VGA, SVGA (XGA, XGA-II with adaptor), Maximum Local Port: 1600 x 1200; Maximum Remote Port using a DSRIQ module: 1280 x 1024 @ 75 Hz |
| Peripherals | USB keyboard and mouse, PS/2 keyboard, PS/2 mouse, IntelliMouse |
| Standards | |
| Approved Agency | UL, FCC, cUL, ICES-003, CE, GS, VCCI, MIC, C-Tick, GOST |
Question: is it possible to stack(electronically) the 3016 or 3100 units
Answer: Thank you for your inquiry. AutoView switches can be cascaded together, where one unit works as the master to access and control the attached switches. Some models have a dedicated port, while other models simply use an IQ module.
You can read more on the cascading feature and setup in the AV3016 manual posted here: Avocent AV3016 Manual
Answer: Thank you for your inquiry. AutoView switches can be cascaded together, where one unit works as the master to access and control the attached switches. Some models have a dedicated port, while other models simply use an IQ module.
You can read more on the cascading feature and setup in the AV3016 manual posted here: Avocent AV3016 Manual
