AdderView Secure 4 Port EAL4+, EAL2+ & Tempest KVM Switch with USB, and VGA


Save $52.50
Series: Analog: Standard
Ports: 2-Ports
FREE Shipping on orders over $100
For Government Pricing
Contact Us

The ADDERView Analogue Standard SecureSwitch (AVSV1002) allows a keyboard, monitor and mouse to be shared between high and low security systems, "red and black networks". The high density, highly robust, small form factor unit ensures maximized security to prevent the compromise of critical data.

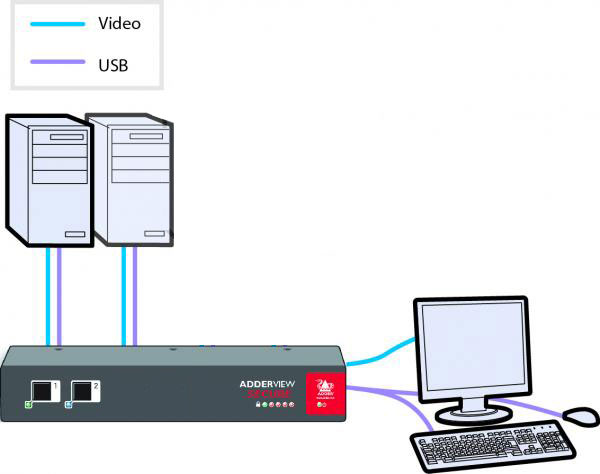

Adder AVSV1002 Application Diagram

  • Switch between two computers in secure environment
  • High definition VGA video up to 1920 x 1200 @ 60Hz resolution
  • USB keyboard & mouse - PS/2 with optional adapter
  • Tempest Certified (USA NSTISSAM Level I and NATO SDIP-27 Level A)
  • NIAP 3.0 Common Criteria EAL 4+ Certified (augmented by ALC_FLR.2 and ATE_DPT.2)

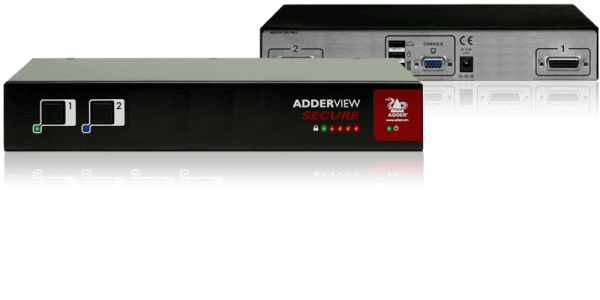

Adder AVSV1002 Front back

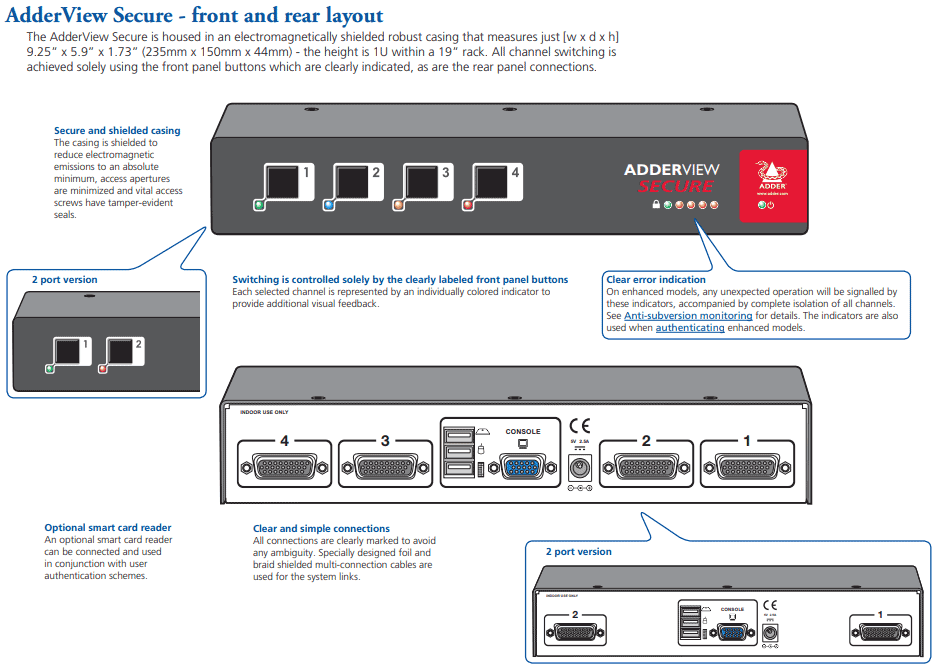

See Detailed Layout

Adder AVSV1002 Features

  • Adder AVSV1002 Tempest Certified by NSA & NATO

    Tempest, EAL2+ & EAL4+ (NIAP 3.0) certified

    Tempest testing is a strict NSA specification and a NATO certification to ensure that sensitive equipment doesn't leak information. Adder's new secure switch has been tested and qualified to the strictest Tempest standards (USA NSTISSAM Level I and NATO SDIP-27 Level A). This and 80dB crosstalk isolation means that the switches are amongst the lowest leakage KVMs in the world.

  • Adder AVSV1002

    AdderView Analogue Standard Secure switch checks its own operation

    The hardware and software must agree before data flow is enabled. The switch constantly checks its own operation and will stop operating and flash its error light if an unanticipated event occurs.

  • Adder AVSV1002 Minimal emissions profile - 80dB crosstalk isolation

    Minimal emissions profile - 80dB crosstalk isolation

    The AdderView Analogue Standard Secure switch is heavily shielded with double shielding in critical areas to minimize the risk of eavesdropping equipment being able to pick up signals from the equipment. The switch boasts an amazingly high level of electrical crosstalk isolation that is greater than 80dB, giving further peace of mind.

  • Adder AVSV1002 No shared RAM between ports

    No shared RAM between ports

    The keyboard and mouse processor is powered down and reset at each switchover to thwart shared RAM leakages. Separate memories hold the num, caps and scroll states and are only accessible when the relevant channel is selected. All data buffers are actively cleared once they have been used.

  • Adder AVSV1002 Restricted USB

    Secure USB function

    The USB ports will only support keyboards, mice and SmartCard / Common Access Cards (CAC). Other devices, such as USB storage drives, are actively prohibited.

  • Adder AVSV1002 Independent power supplies block power line signalling

    Independent power supplies block power line signalling

    The circuitry for each port is independently powered from the USB lead. Power line signaling is therefore blocked because different port circuits don't share the same power feed.

  • Adder AVSV1002 Secure KVM Common Criteria

    Uni-directional data paths for keyboard and mouse

    One-way data paths ensure that data isolation does not rely on trusting microprocessor software, but is instead assured by hardware and prevents a hidden software weaknesses that could potentially cause data leakage. A unidirectional structure also protects against timing analysis or forced malfunction attacks and prevents computers influencing the operation of any common circuitry.

  • Adder AVSV1002 One time programmable microprocessors

    One time programmable microprocessors

    Data isolation is assured by hardware and so is not compromised by any changes to the microprocessor software. Microprocessors use one time programmable memory so flash upgrades are not possible

AVSV1002-US Package Contents

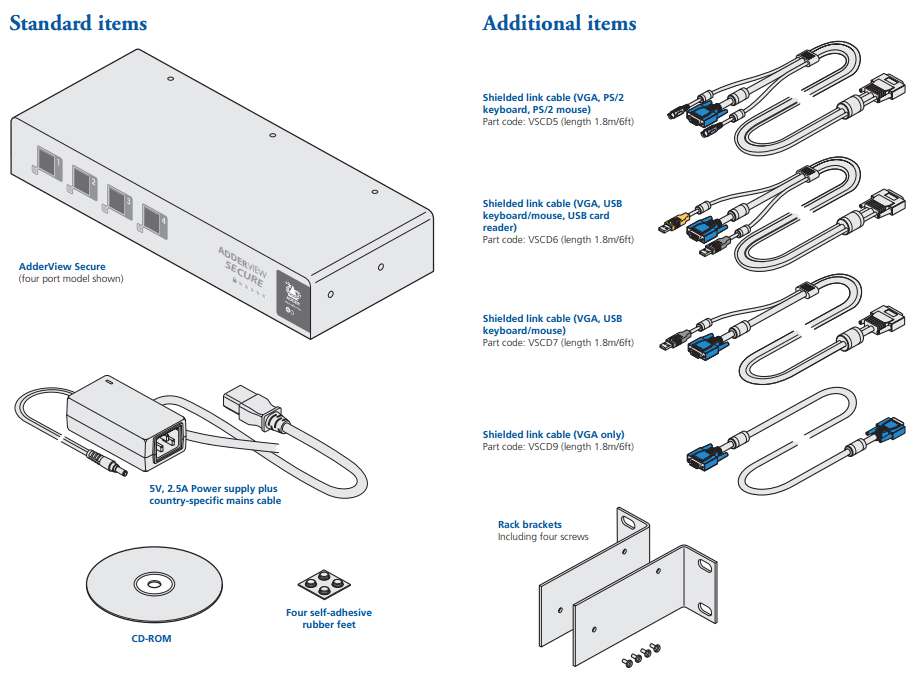

Adder AVSV1002 Package Contents

  1. (1) AVSV1002 KVM Switch
  2. (1) 5V, 2A Power supply and US-specific power lead
  3. (1) Information CD-ROM
  4. (4) Self-adhesive rubber feet
  5. (1) 2-Year Limited Warranty & Lifetime World Class Support

AVSV1002-US Resources

Adder AVSV1002 Manual Screenshot Adder AVSV1002 Datasheet (PDF)
Adder AVSV1002 Manual (PDF)

Adder AVSV1002-US Specifications

Physical1U High
Width9.25 in. (235 mm.)
Height1.73 in. (44 mm.)
Depth5.9 in. (150 mm.)
ConstructionCompact case, robust metal construction, extensive shielding
Hardware CompatibilityCompatible with all known platforms featuring VGA video and USB HID or PS/2 connectivity
Software CompatibilityAll known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare etc.
Video ResolutionAnalog: 1920 x 1200 @60Hz
Computer Connections at Switch2 x USB HID (Keyboard/Mouse), HD-15 VGA, 2 x system link connection, smart card USB
Local KVM Console Connection Video3x USB type A, 1 x VGA HD-15
Power100-240 VAC 47/63Hz
Operating Temperature0°C to 40°C / 32°F to 104°F
ApprovalsCE, FCC, Designed to meet Common Criteria EAL4+ & EAL2+ certified (certificates available), Tempest certified

AVSV1002 is also known as the AVSV1002-US and AVSV1002-USA.
