NetCommander 16-Port Cat5 1U Rack-Mount 1+1 User Console KVM Switch with 19-in. LCD and IP Remote Access


Save $784.00

Replaced by: Tripp Lite B021-000-19
Alternative options: Contact Us

Control up to 16 computers from virtually anywhere with one Cat5 KVM switch with integrated console. This KVM switch with IP remote access is a smart solution for efficient server control. Low-cost Cat5 cables let you locate servers up to 100 ft. away.

Features and Benefits

  • Saves Space and Money
    • Combines 16-port KVM switch, 19" LCD screen, keyboard and touchpad in a single 1U rack-mountable drawer
    • Mounts into 19"-wide rack, 27"-42" deep; to mount in a 2-post rack, use Tripp Lite's B019-000
    • Inexpensive Cat5e/6/6a cabling lets you locate servers up to 100 ft. from the switch
    • Use a Server Interface Unit, B078-101-USB-1(for USB) or 0SU51078(for PS/2) with each server that will be connected with Cat5 cable
  • IP Remote Access for Fewer Trips to the Server Room
    • Remote access means there's no need to travel to the server room or network closet
    • Java-based application allows access via web browser; non-browser client that can bypass browser-related Java Security prompts is available
    • 1 local + 1 remote user can access different ports concurrently; up to 5 users can share a single session
    • Supports both IPv4 and IPv6
  • Simplifies IT Tasks
    • On-screen display, hot keys and remote toolbar for easy use
    • 2 serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers
    • Add IP PDUs as devices that can be controlled by the KVM; assign individual ports to an IP PDU port to power on/off the server connected to that port
    • Virtual Media allows a.iso file to be mounted to a target server and accessed as if it were directly stored on it
    • System-sent messages to SNMP server notify you of LAN failures
    • Supports RADIUS and LDAP/S authentication
    • Log tracks events on your installation
  • Large 19" LCD
    • Supports video resolutions up to 1366 x 768; 1920 x 1080 remotely
    • DDC emulation allows for optimal output to LCD
  • Advanced Security Features
    • Multi-level password protection: create administrator accounts with full access and user accounts with limited access
    • 128-bit AES and HTTPS encryption for highest security standards
    • You can install SSL certificates to ensure secure transactions between web servers and browsers
  • Long-Lasting Reliability
    • Flash-upgradeable firmware over the network
    • Heavy-duty steel housing stands up to use
  • TAA Compliant
    • Complies with the Federal Trade Agreements Act for GSA Schedule purchases

Package Includes

  • B070-016-19-IP 1U rackmount console KVM switch with 19" LCD
  • C13 to 5-15P power cord
  • Rackmount hardware
  • CD with owner's manual
  • Quick start guide

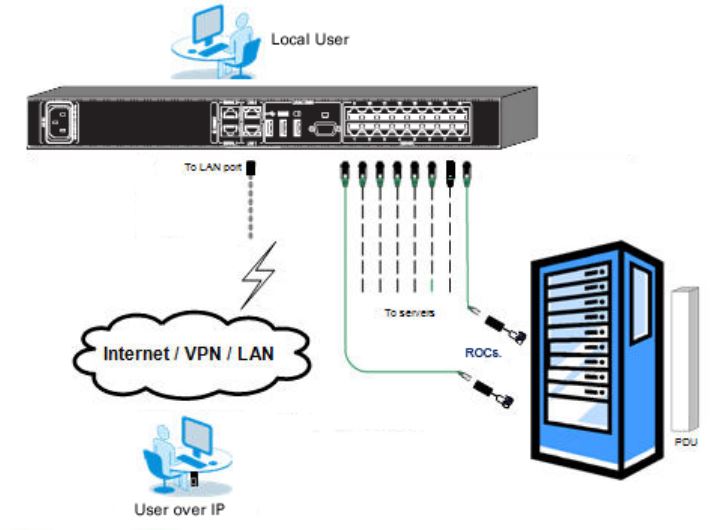

Use Diagram

System Requirements

  • Computer with HD15 port, and USB port or PS/2 keyboard/mouse ports
  • User-supplied Cat 5e/6/6a cabling
  • B078-101-USB-1(USB), B078-101-USB2(USB) or 0SU51078(PS/2) Server Interface Unit is required for each connected computer/server; the B078-101-USB2 is required for Fast Virtual Media speeds up to 12Mbps; the B078-101-USB-1 can be used for Virtual Media, but only at speeds up to 1Mbps
  • Compatible with Windows and Linux operating systems
  • Remote console computers require minimum Pentium 4 with 2 GB memory
  • Hardware versions: A new hardware version(v2) of the B070-016-19-IP was released in 2014, and it requires different firmware than was used in the previous version(v1). In the Support tab on this web page you will find a zip folder for the v1 KVM. In addition to including the applicable firmware, it contains a FW Notes file that will tell you how to determine which hardware version you have, and therefore, which firmware you need to use. If you have a v2 KVM, the latest firmware is that which came pre-installed on the KVM.
  • Power consumption: 120V, 60Hz, 30W
Dimensions1.71" H x 28.43" D x 17.36" W
Weight29 lbs
Ports16 CAT5
PC/ServerVGA, USB;PS/2
Input100V AC; 110V AC; 115V AC; 120V AC; 127V AC; 140V AC; 200V AC; 208V AC; 220V AC; 230V AC; 240V AC
Consumption(Line Mode) 30W / (Standby Mode) 5W
Input Current120V (1.2A) / 230V (0.7A)
Operating Temp.32 to 140°F (0 to 40°C)
Storage Temp.-4 to 140°F (-20 to 60°C).
Humidity0 to 80% RH (Non-condensing)
Warranty1 Year limited warranty
