Rose Electronics Extender Kit - Dual Video/PS2 w/ Audio & Serial

CRK-1P2V/AUD

$1,395.00$1,220.63
Save $174.37
FREE Shipping on orders over $100

Rose CrystalView Plus w/ Serial/Audio CRK-1P2V/AUD
The CrystalView Plus series of enhanced KVM Extenders allow you to position your KVM station up to 1,000 feet away from your computer using a single CATx cable. If your computer supports dual or quad video, the CrystalView Plus dual or quad model can fully support it. The CrystalView Plus has gone one step further and eliminated adjustment knobs and jumper switch settings. Integrated controls that adjust for skew, low and high frequency equalization, and RGB delay for each channel have been made easy by simple keyboard commands.

Rose CrystalView Plus CRK-1P2V/AUD Features & Benefits:

  • Extends keyboard, video, mouse, audio and serial up to 1,000' over CAT5/6 cable
  • Available with single, dual, or quad video support
  • Video resolutions up to 1600 x 1200
  • Supports PC, serial and audio
  • Configuration and video tuning is made easy by using simple keyboard commands
  • Single, dual, or quad video models available
  • Video resolutions up to 1600 x 1200 @ 60Hz (650')1280 x 1024 @ 75Hz (1000')
  • Integrated skew adjustments for compensating different CAT5 cable types
  • Independent low and high frequency equalization adjustments
  • All control and video adjustments are easily made with simple keyboard commands
  • Audio options:
  • Full stereo audio can be transmitted either direction across the link (simultaneously)
  • Digital CD quality audio
  • Supports stereo speakers and microphone
  • Serial option: Supports serial baud rates up to 19.2 baud; Supports four hardware handshaking lines
  • Full keyboard and mouse emulation
  • Compatible with Rose Electronics KVM switches
  • Compatible with Windows, UNIX, Linux, Solaris, and other operating systems
  • All settings stored in flash memory
  • Rack mount kits for 19", 23", 24" racks

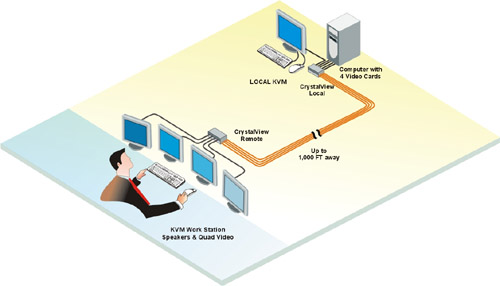

Rose CrystalView Plus CRK-1P2V/AUD Function Diagram
Rose CrystalView Plus CRK-1P2V/AUD Function Diagram

CrystalView Pro Fiber KVM Extender (CRK-1P2V/AUD) Specifications:

Mechanical
Dimensions/Weight

(in.) 8.8" x 6.3" x 1.75" -- 3.3 lbs
(cm) 224 x 160 x 445 -- 1.5 kg

Environmental

10°C - 45°C / 50°F - 113°F
Humidity 80% max, non-condensing

Power

4-Pin square

Wavelength / (MultiMode) - 850nm / 70--400μw
Power (SingleMode) - 1300nm / 180-2000μw

Video

Resolution Up to 1600 x 1200 @ 60Hz

Data

Serial - DB9F (TX), DB9M (RX)
Audio - 3.5mm stereo jack (2)

Connectors

Video - DVI
PC -Keyboard/Mouse - MiniDin6 (2)
USB - Keyboard/Mouse - Type A/B
