The Rose CrystalView USB2 CRK-1VH4U2TP-150 Video and USB extender  extends single video and USB devices up to 150 feet from the controlling computer. The CrystalView USB2 extender makes this possible by the use of standard CATx cable. You can view single video and fully operate and control your USB devices from as far away as 150 feet using standard CATx cable.

Remotely accessing your USB devices is made convenient in a variety of situations. You can locate users away from hazardous industrial environments where the USB device is located, locate devices away from areas vulnerable to theft of hardware and data, reduce noise and heat; increase desk and floor space.

Transmit high quality single video using CATx cable. Cable length is no problem. The CrystalView USB2 automatically adjusts the video compensation and gain based on the cable length. The auto skew model automatically adjusts the RGB video components to provide a crystal clear display regardless of cable type, patch panels or cable routing. Locate a video monitor(s) in remote control areas, classrooms, conference areas, video studios, and present the video from a computer 150 feet away.

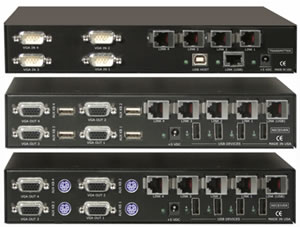

CRK-1VH4U2TP-150 Back

CRK-1VH4U2TP-150 Back
(top: transmitter, middle: Receiver with auxiliary USB Keyboard input, bottom: Receiver with auxiliary PS/2 Keyboard input)


CRK-1VH4U2TP-150 Features

  • Supports USB 1.1 (low and full speed) and USB 2.0 (high-speed)
  • Extend single video and USB 2.0 peripherals up to 150 ft (50m) from a CPU using CATx cable (CAT5, 5e, 6, or 7)
  • Cable length compensation adjustments (Equalization and gain) are automatically performed
  • Video equalization and gain can be fine tuned with simple keyboard commands
  • Automatic video skew adjustments (optional)
  • Supports:
        -SVGA, VGA, XGA, RGB video modes
        -Single or Dual head VGA video cards
        -USB keyboards and mice
        -USB 2.0 high-speed peripherals
        -Video resolutions up to 1920 x 1200 @ 60Hz
  • Up to 500 ma of power is available at each USB port for powering high-power USB devices
  • Operating system independent

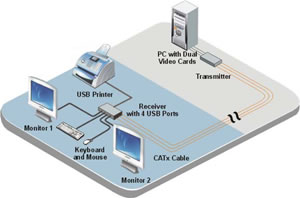

CRK-1VH4U2TP-150 Diagram

CRK-1VH4U2TP-150 Diagram

CRK-1VH4U2TP-150 Specifications

Height 1.75 in. (4.45 mm.)
Width 8.8 in. (22.4 mm.)
Depth 5.6 in. (14.2 mm.)
Weight 3.3 lbs (1.5 kg.)
Operating Temperature 32-113°F (0-45°C)
Humidity 0 - 80% non-condensing

- Transmitter USB Type B
- Interconnect - RJ45
- Video - HD15M
- Power - External 5VDC adapter


- 4 - USB Type A
- Interconnect - RJ45
- Video - HD15F
- Power - External 5VDC adapter
- Keyboard* - USB Type A or PS/2*
* AUX/KB for video adjustments only

Receiver output 500ma per USB output port
power at each USB port
Power +5V DC / 4A external adapter
Compatibility SVGA, VGA, XGA, RGB
USB 1.1 (low and full speed) / USB 2.0 (high-speed)
Resolution 1920 x 1200 @ 60 Hz
Levels 0.7V p-p
Sync Type Separate/composite TTL level
Distance 150 feet (50 m)
Approved Agency CE
