Rose Electronics CrystalView Mini Extender Dual Kit

CRK-M2P/AUD

$549.00$512.40
Save $36.60
FREE Shipping on orders over $100

The Rose Electronics CrystalView Mini (CRK-M2P/AUD) consists of a local unit that connects to a PC, server, or KVM switch and a remote unit that connects to a keyboard, monitor, and mouse, or KVM switch. The local and remote units are connected together with up to 150 feet of standard CAT5 cable.  The ideal way to apply the CrystalView Mini is to connect the Local unit to a Rose Electronics KVM switch. Expanding the switch allows access to 1,000 computers or servers. The Rose KVM switch can be connected between the Local unit and computers, the KVM station and the remote unit, or both.

Installing the CRK-M2P/AUD is as easy as connecting the KVM station to the remote unit, a computer to the local unit, and connecting the local and remote units together with CAT5 cable.  The CrystalView Mini uses a microprocessor to emulate the keyboard and mouse. This means that the keyboard and mouse on the remote unit does not have to be connected for the PC to boot. Only the Local unit must be connected to the PC.

Rose Electronics CRK-M2P/AUD Features & Benefits:

  • Extend keyboard, monitor, and mouse (KVM) up to 150 feet away with a single CAT5 twisted pair cable
  • Dual - Two KVMs to 1 CPU, one KVM near CPU and one KVM up to 150 feet away
  • Supports PS/2 keyboard and mouse and all PC video formats
  • Video resolutions:
    • 1600x1200 at 100'
    • 1280x1024 at 150'
  • Keyboard and mouse emulation allows plug and play operation
  • Compatible with Rose switches such as ServeView, UltraView, and UltraMatrix
  • Connector types use standard VGA (HD15) and PS/2 (Minidin6)
  • Compatible with Windows, NT, OS/2, UNIX, Linux, and other operating systems
  • Fully automatic KVM sharing on first-come first-serve basis using the dual version models

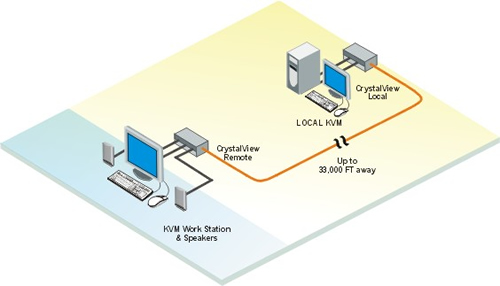

Rose Electronics CRK-M2P/AUD Diagram

Rose Electronics CRK-M2P/AUD Diagram



Rose Electronics CRK-M2P/AUD Specifications:

Mechanical
Height 1.75 in. (4.45 cm.)
Width 3.25 in. (8.25 cm.)
Depth 4.50 in. (11.43 cm.)
Environmental
Operating Temperature 32°F - 113°F (0°C - 45°C)
Humidity 0% - 80% non-condensing
Power
Local From PC
Remote 9V 1,00 ma external
Video
Resolution 1600 x 1200 @ 100 feet
1024 x 768 @ 150 feet
Compatibility SVGA, VGA, XGA, RGB
Levels 0.7V p-p
Sync type Separate/composite TTL level
Support
Keyboards PC/AT, PS/2
Mouse PS/2 two button
Microsoft IntelliMouse
Logitech three button
Connectors
CPU DB25F
Video HD15F
Keyboard PS/2- MiniDin-6F
Mouse PS/2- MiniDin-6F
Serial Local- DB9F
Remote- DB9M
Audio (2) 3.5mm stereo jacks
Interconnect CAT5 UTP/STP, EIA/TIA 568
Serial Data
Baud rate up to 19,200
Data flow Format independent
Flow control RTS, CTS, DTR, DSR
Audio Data
Signal level 5V p-p
Impedence 47K Ohm
Connectors 3.5mm stereo jack
Transmission 16 bit, 38.4KHz digitized audio
Microphone Powered or un-powered
Speakers Powered
Approvals CE
