Rose CrystalView Mini USB CAT5 Extender Kit

CRK-M2U2V/AUD

$899.00$839.07
Save $59.93
FREE Shipping on orders over $100

The Rose CrystalView CRK-M2U2V/AUD is a mini USB dual local, dual video with serial & audio KVM extender kit.  This system consists of two units, a Local Unit and a Remote unit. The Local unit connects to your CPU using a CPU adapter cable or a KVM switch. The Remote Unit connects directly to the keyboard, video monitor and mouse cables of a KVM station. The Local and Remote Units are connected together with up to 150 feet of industry standard CATx cable.  The CRK-M2U2V/AUD CrystalView Mini uses a microprocessor to emulate the keyboard and mouse for plug and play operation.  The keyboard and mouse on the Remote Unit do not need to be connected for the PC to boot; only the Local Unit must be connected to the PC.

The CRK-M2U2V/AUD serial/audio model allows stereo audio to be transmitted in either direction across the CATx link simultaneously.  Many serial devices like a Touchscreen can plug directly into the serial port on the Remote Unit The Mini model is small in size but loaded with state of the art technology. It is ideal for extending the distance between a CPU and a KVM station up to 150 feet.


Rose CrystalView CRK-M2U2V/AUD Backside
Rose CrystalView CRK-M2U2V/AUD Backside

The Rose CrystalView Mini is also available in the following models:

  • Single video (CRK-M2U1V)
  • Dual video (CRK-M2U2V)
  • Single video with Serial/Audio (CRK-M2U1V/AUD)

Rose CRK-M2U2V/AUD Features & Benefits:

  • Supports:
    • VGA to UXGA video modes
    • USB keyboards and mice
    • USB peripherals
  • Extend a KVM station up to 150 feet away from a CPU using CATx* cable
  • Video resolutions up to 1600 x 1200 @75Hz
  • Works with any Operating System
  • Fully automatic KVM sharing
  • DDC support
  • Rackmount kits available

* CATx cable = CAT5, CAT5e, CAT6, or higher

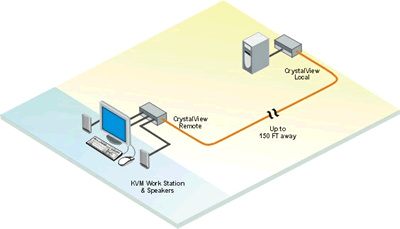

Rose CrystalView CRK-M2U2V/AUD Application Diagram

Rose CrystalView CRK-M2U2V/AUD Application Diagram

Rose CRK-M2U2V/AUD Specifications:

Mechanical
Height 1.70 in. (44 mm.)
Width 5.90 in. (150 mm.)
Depth 4.30 in. (110 mm.)
Weight 0.55 lb. (250 gm.)
Environmental
Temperature 32°F - 113°F (0°C - 45°C)
Humidity 0% - 80% non-condensing
Video
Resolution 1600 x 1200 @ 150 feet
Compatibility SVGA, VGA, XGA, RGB
Levels 0.7V p-p
Sync type Separate/composite TTL level
Support
Keyboard USB
Mouse USB
Connectors
Video HD15F
USB local USB B
USB remote 4 port USB A hub
Serial Local- DB9F
Remote- DB9M
Audio (2) 3.5mm stereo jacks
Interconnect CAT5 UTP/STP, EIA/TIA 568
Power
Local From PC
Remote 5V, 20W external
Serial Data
Baud rate up to 19,200
Data flow Format independent
Flow control TX, RX, RTS, CTS, DTR, DSR
Audio Data
Signal Level 4V p-p
Impedance 47KΩ
Connectors 3.5 mm stereo jack
Transmission 16 bit, 38.4KHz Digitized audio
Microphone Powered or un-powered
Speakers Powered
Approvals CE
