Rose Electronics CrystalView Plus Quad Video, Remote KVM Extender

CRV-R4V

$1,150.00$1,006.25
Save $143.75
FREE Shipping on orders over $100

The Rose Electronics CRV-R4V is a Quad video, remote KVM extender.  The CrystalView Plus series of enhanced KVM extenders allow you to position your KVM station up to 1,000 feet (300 meters) away from your computer using a single CATx cable. If your computer supports quad video, the CrystalView Plus quad model can fully support it.

The CrystalView KVM extenders have gone one step further and eliminated adjustment knobs and jumper switch settings. Integrated controls that adjust for skew, low and high frequency equalization, and RGB delay for each channel have been made easy by simple keyboard commands.
The quad channel can be adjusted independently or global settings can be applied for all. These adjustments make for a crystal clear image using CAT5, CAT5e, or CAT6 cabling. The stereo audio option produces low-noise CD quality sound. Speakers, headphones, or a powered or un-powered microphone can be connected to the remote unit. It's perfect for call centers, trader's desks, kiosks, TV stations, and other applications where multiple video sources are used and need to be extended from the computer.  The bi-directional serial option allows you to connect a touchscreen, digital tablet, serial printer or other supported serial device to the remote location. No set-up is needed; just connect the serial device to the serial port and it's ready to use.

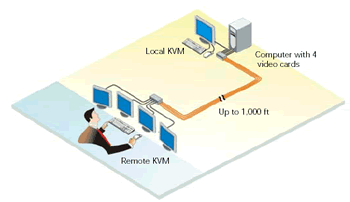

Rose Electronics CAT5 KVM Extender Application Diagram
Rose Electronics CAT5 KVM Extender Application Diagram

Rose CRV-R4V Features:

  • Video resolutions up to: 1600 x 1200 @ 60Hz (650'), 1280 x 1024 @ 75Hz (1000')
  • Integrated skew adjustments for compensating different CATx cable types
  • Independent low and high frequency equalization adjustments
  • All control and video adjustments are easily made with simple keyboard commands
  • Full keyboard and mouse emulation
  • Compatible with Rose Electronics KVM switches
  • Compatible with Windows, UNIX, Linux, and other operating systems
  • All settings stored in flash memory
  • Rack mount kits for 19", 23", 24" racks (sold separately)

Rose CRV-R4V Specifications:

Mechanical
Height 1.14 in. (29 mm.)
Width 10.8 in. (275 mm.)
Depth 5.71 in. (145 mm.)
Weight 3.75 lbs. (1.7 kg.)
Resolutions 1600 x 1200 (60Hz) @ 650'
1280 x 1024 (75Hz) @ 1,000'
Connectors
Keyboard / Mouse PS/2 - miniDin6
Video HD15M/F
Interconnect RJ45
Serial DB9M/F
Audio 3.5mm stereo jack
Power 9.0VDC adapter
Standards
Approved Agency FCC-A, CE
