1080p HDMI KVM Extender

CV-F101

$377.00$331.00
Save $46.00
Signal: HDMI over CatX
Connectivity: HDMI over CatX
Resolution: 1080p
FREE Shipping on orders over $100

1080p HDMI KVM Extender - Single HDMI, CATx
CV-F101

The CyberView CV-F101 1080p HDMI KVM Extender enables you to place your workstation up to 230 feet (70 m) away from a server a USB keyboard and mouse console. This KVM extender extends HDMI, analog audio (via 3.5mm AUX), & USB-based signals over a single CAT5/6/7 cable. And with up to 1080p resolution, you get sharp, clear video, even on large monitors.

CV-F101 Features

  • Support resolution up to 1080p at 60Hz
  • Supports point to point connection
  • Uncompressed and no latency
  • Transmission distance up to 70m / 230ft via CAT5/6/7 cable
  • Protection from surge / lightning / ESD

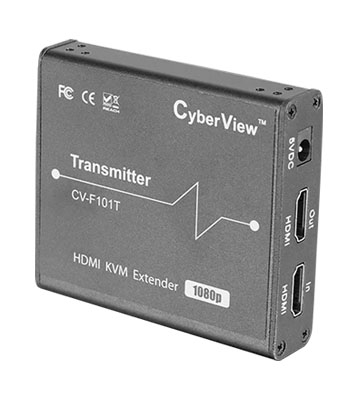

CV-F101 Transmitter Back Ports

Product Includes

  • Extender Local unit
  • Extender Remote unit
  • 5-VDC power supply with power cord
  • USB/Video Cable (3.3 ft) with USB connector and VGA video (HD15 M-F)
  • VGA M/F Cable (3.3 ft)
  • Quick Install Guide

Technical Specifications

General
CE Approval Yes
Power Supply: 5V, Consumption: 2.5W
Item Specifications
Connectors Local unit: (1) RJ-45, (1) USB-A, (1) barrel power jack, (1) RJ-45, (2) HDMI; Remote unit: (2) USB-A, (1) barrel power jack, (1) HDMI, (1) RJ-45
Dimensions Local unit: 1.7"H x 4.7"W x 4.3"D (4.3 x 11.9 x 10.9 cm); Remote unit: 1.1"H x 5.4"W x 3.9"D (2.8 x 13.7 x 9.9 cm)

CyberView CV-F101 Resources

CyberView CV-F101 Datasheet (PDF)

CyberView CV-F101 Manual (PDF)
