Low-Cost Composite Video + Audio to HDMI Converter


FREE Shipping on orders over $100

The Low-Cost Composite to HDMI Converter changes your Composite video and audio signals to a single HDMI stream with integrated audio. The converter generates compatible analog to digital conversion signals to make the connection between the Composite video input and the HDMI output work.

Product Features and Benefits

  • Connects video sources with analog RCA video connectors to HDMI monitors or projectors.
  • Supports 1080p or 720p HDTV output resolutions.
  • Supports embedded digital audio through HDMI compatible TVs or audio receivers.
  • Plug and play functionality - no new software or drivers required.

Package Includes

  • Low-Cost Composite Video + Audio to HDMI Converter
  • USB Mini Type A to USB Type A cable
  • Manual

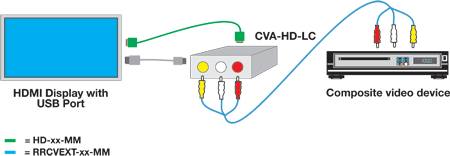

Product Diagram

ConnectorsThree female RCA phono jacks (video, R&L) for Composite video and stereo audio input.
One female HDMI connector for HDMI output.
One female Mini USB Type A connector for power.
VideoSupports HDTV resolutions of 1080p and 720p.
Select resolution using the switch on the unit.
DimensionsWxDxH: 2.17x2.60x0.94 in (55x66x24 mm).
Weight0.8 lb (0.36 kg)
