USB-C Adaptor Cable: USB-C to Dual-Head DisplayPort w/LAN, Power, and USB
DCBLN12CCL
Save $106.67

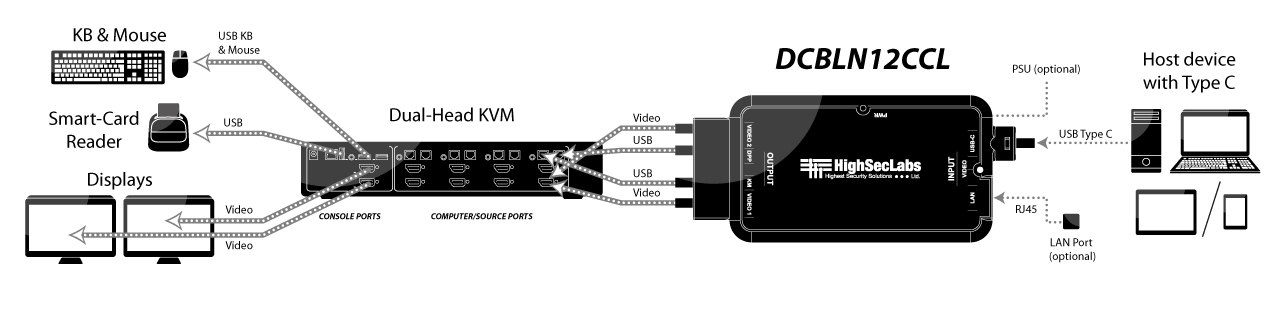

High Sec Labs DCBLN12CCL USB-C adapting cable is designed to connect USB-C devices to HSL's KVM Switches. USB-C is a single connector allowing the transfer of Video, USB, Power and Network. HSL's adapting cables leverage the flexibility of USB C to create an easy to use solution to connect devices to HSL's KVMs.
DCBLN12CCL Features and Benefits
- USB-C adaptor cables are used to connect to legacy equipment lacking a USB-C port
- Supports:
- Power distribution (PD 2.0, 100W)
- LAN (100mbps)
- Video (4K 30Hz Dual head; 4K 60Hz single-head)
- USB (KBD/mouse/peripherals)

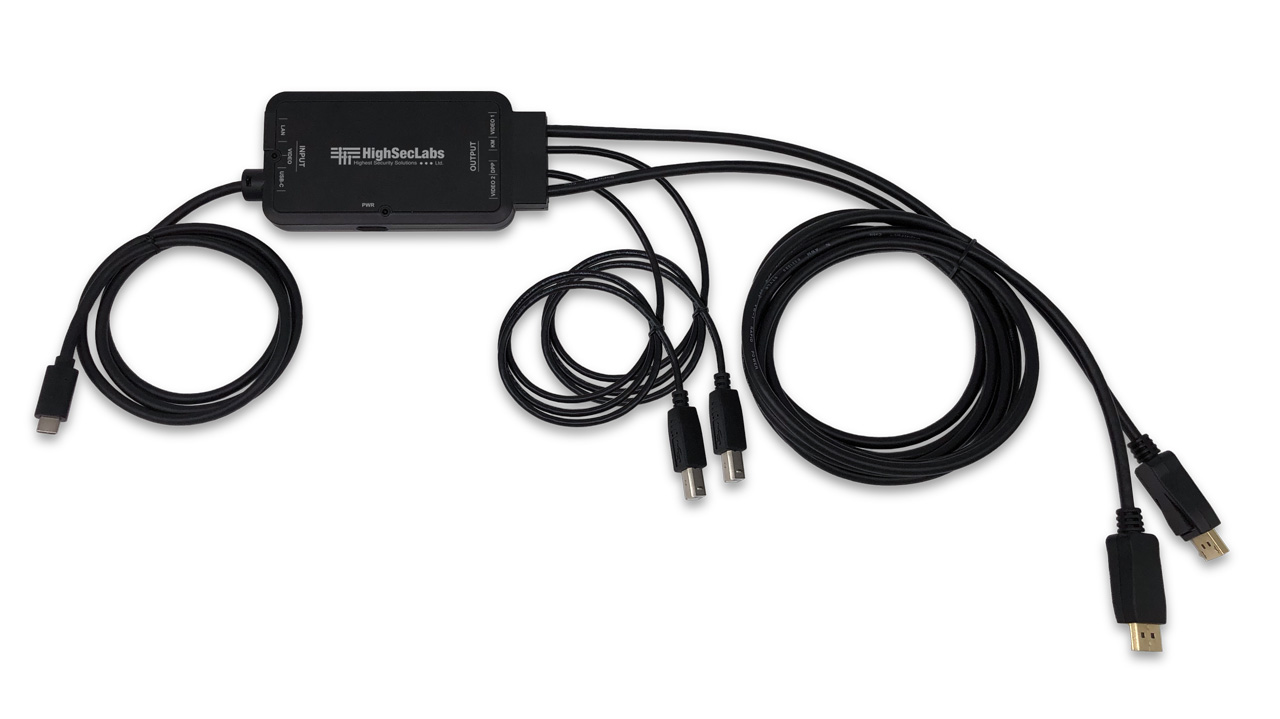

- 3-foot USB-C cable, 2 x 6-foot DP Video Cables, and 2 x 6-foot USB cables
DCBLN12CCL Resources
USB-C KVM Cable Datasheet (PDF)
USB-C Docking Solutions Brochure (PDF)
High Sec Labs DCBLN12CCL Specifications
| Mechanical | |
| Dimensions | 142.5 x 65.4 x 17 mm / 5.6 x 2.6 x 0.7 inch |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | Operating - 20% to 80% non-condensing; Storage - 10% to 90% non-condensing |
| Altitude | 0 to 10,000 ft |
| Input Interface (Host) | LAN + Type-C |
| Output Interface (Video) | 4K 30HZ Dual Head, 4K 60HZ Single Head |
| USB Compliance | USB 2.0 |
| Charging | PD 2.0 compliant up to 100W |
| Cable length | 3ft USB-C, 2 x 6ft Video, 2 x 6ft USB |
| Network | 100 MB |
| General Info | |
| Made In | TAA, BAA compliant |
| Product life-cycle | 10 years |
| Warranty | 2 Years |
The DCBLN12CCL USB-C to DualHead DisplayPort w/LAN, Power and KM interconnect cable is also known as the CPN24279.
