Raritan Dominion 1Port KVM Over IP Switch with Virtual Media

DKX2-101

$659.00$523.71
Save $135.29

Discontinued
Replaced by: Raritan Dominion IP KVM
Alternative options: Contact Us

The Raritan Dominion KX2-101 is a single port KVM-over-IP switch that gives you instant, secure access and control, which includes servers in remote and rugged locations.  Designed as a "zero-U," one port/one user IP KVM switch, it provides non-blocking BIOS level access and control of a single server via a dedicated IP address.

The Dominion KX II-101 works with the industry's widest range of browsers and operating systems, so you can use almost any combination of OS and browser. It also incorporates Raritan's Virtual KVM Desktop features to provide a user experience that is indistinguishable from an at the rack connection.  This KVM over IP switch  is incredibly scalable. And because it is CommandCenter certified a large number of Dominion KX II-101 units can be integrated through Raritan's CommandCenter Secure Gateway into a single logical network, with a single sign-on to a single IP address.

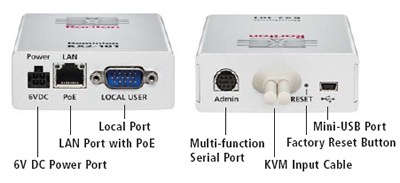

Raritan Dominion KX2-101 Backside
Raritan Dominion KX2-101 Backside

Raritan DKX2-101 Features:

  • Absolute Mouse Synchronization reduces installation time and sets a new standard for mouse synchronization
  • Virtual KVM Desktop creates a user experience virtually indistinguishable from a local server connection
  • PC Share mode lets up to eight users remotely access the same server for collaborative troubleshooting
  • Plug-and-play appliance is easily installed; up and running in minutes
  • Firmware upgradeable over IP network connection Supports Windows, Mac, Linux and Solaris platforms
  • Works with Raritan's Multi-Platform Client (MPC) Small form factor fits in many environments
  • Serial admin console port allows local configuration and diagnostics
  • Non-blocked KVM-over-IP access
  • "Zero-U" form factor
  • Powered via Power over Ethernet (PoE) or an external adapter
  • Supports external modem
  • 256-bit AES Encryption
  • Configurable Strong Password Checking
  • Group and port-level permissions
  • RADIUS and LDAP and Active Directory Authentication
  • Next Generation Common User Interface- browser-based user interface for enhanced usability and productivity
  • Remote Power Control- multi-function serial port that can be used to connect Raritan's intelligent PDU, the Dominion PX
  • SNMP Management and Syslog
  • Centralized management with Raritan CommandCenter Secure Gateway

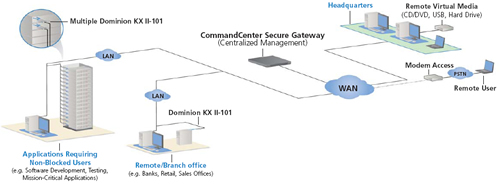

Raritan Dominion KX2-101 Application Diagram
Raritan Dominion KX2-101 Application Diagram

Raritan DKX2-101 Specifications:

Mechanical
Height 1.06 in. (27 mm.)
Width 2.91 in. (74 mm.)
Depth 4.06 in. (103 mm.)
Form Factor Zero-U form factor; rack mountable vertically or horizontally
(bracket kit included)
Weight 0.65 lb. (0.30 kg.)
Environmental
Operating Temperature 0° - 40°C (32° - 104°F)
Humidity 20% - 85% RH
Power AC/DC (100-240V~/ 6VDC) power adapter or
Power over Ethernet (PoE); compatible with IEEE 802.3af
- Mid-Span Power Insertion
- Signal-Pair Power Insertion
- Class 2 PoE powered device (under 7Wts)
Indicators
Blue Raritan back-lit logo Boot-up and power indicator
Yellow and Green LED Network activity and connection speed indicator
Local Connections
Mini USB 1 - Mini USB port for USB keyboard / mouse and virtual media connectivity to the target
MiniDIN9 1 - MiniDIN9 port for multi-function serial port of full RS-232 features, modem connection, and
Dominion PX connectivity
Remote Connection
Network 1 Ethernet (RJ45) port with activity status indicator
Protocols TCP/IP, telnet, SSH, HTTP, HTTPS, secure LDAP, RADIUS,
LDAP, DHCP and SNTP
Screen Resolutions
PC Graphic mode Up to 1600 x 1200 @ 60Hz
SUN Video mode 640 x 480 @ 60/72/75/85Hz,
800 x 600 @ 56/60/72/75/85Hz,
1024 x 768 @ 60/70/75/85Hz,
1152 x 864 @ 60/75Hz,
1280 x 1024 @ 60Hz,
1600 x 1200 @ 60Hz,
720 x 400 (for DOS)
