Raritan Enhanced User Station for Dominion KX III Switches - HD Single or Multi Monitor, USB 3.0, Dual Ethernet, and Audio support
DKX3-EUST
Save $129.12

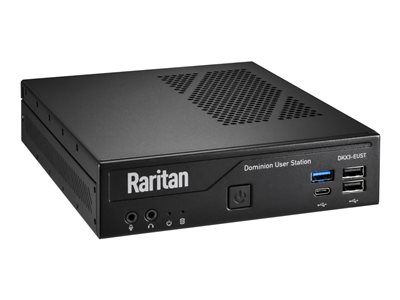

The DXK3-EUST Dominion KX Enhanced User Station is a standalone appliance for high performance IP access to servers connected to Dominion® KX III switches, accessed by DSAM, RDP, VNC, VMware virtual machines, web links and SSH connections, together with optional CommandCenter integration. The slim form factor allows it to easily sit on a desk, be mounted in a standard 19" rack, or VESA-mounted on the back of a monitor. Deploy using standard Cat5 cabling and Ethernet/IP technology.

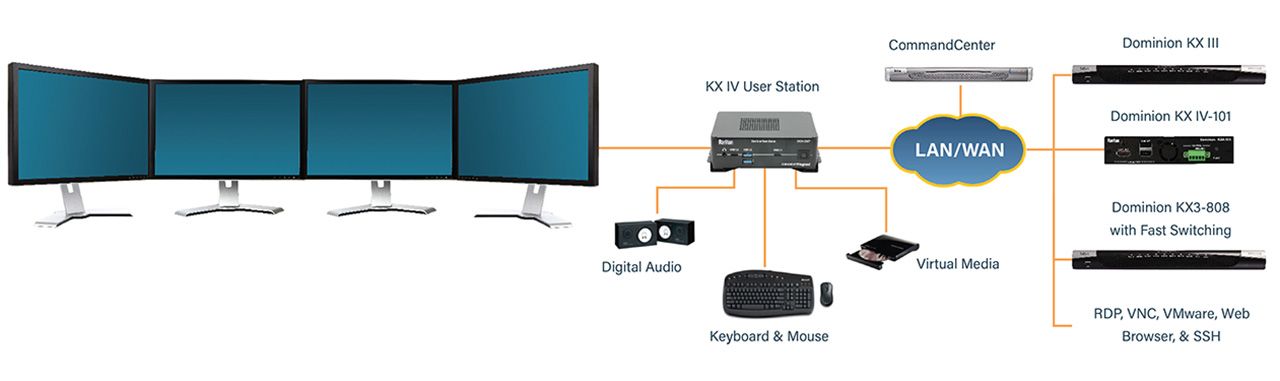

Simultaneously access, view, and control multiple servers, spread across up to three monitors with the KX III Enhanced User Station. Or use the innovative keyboard and mouse sharing feature to work across four, eight, twelve or more monitors! Use web-based remote control to expand the capability of User Stations to display walls and control rooms.
There are two Dominion Enhanced User Station appliances. The Dominion KX III Enhanced User Station is recommended for use with the KX III, up to three monitors, and servers up to 1080p. The Dominion KX IV Enhanced User Station is recommended for use with the Dominion KX IV-101.
The Dominion Enhanced User Stations can replace outdated analog matrix switches, supplement inflexible broadcast systems or be deployed anywhere hassle-free IP access is needed. They are perfect for broadcast, labs, studios, control rooms, offices, and data centers.
DKX3-EUST Features
HIGH PERFORMANCE KX III USER APPLIANCE
- Stream multiple video session up to 60 frames per second
- Ultra-fast connections and sub-second switching
- Video Supported: DVI, HDMI, USB-C & DisplayPort video
- Virtual media, USB audio, Smartcard
- Support for multiple video output systems
PRODUCTIVE AND POWERFUL USER INTERFACE
- Multiple simultaneous IP connections across one, two, or three monitors
- Mouse sharing feature supports multiple monitors
- Scan servers and optionally save screenshots.
- Favorites and hot key switching
- Productive window management
- Save & restore window layouts, even across multiple User Stations
- Chinese, French, German and Japanese language
FLEXIBLE IP SOLUTION - EASY TO DEPLOY
- Flexible dual LAN or WAN access
- Use corporate and/or separate LAN
- Connects with Cat5 cabling.
- Access hundreds of servers and devices
- PC/Laptop access also available
- Desktop, rack & VESA mountable
- Support for RDP, VNC, VMware virtual machines (ESXi), web links, SSH and DSAM connections
- CommandCenter for centralized login and access
- Web-based and API-based remote control
DKX3-EUST Specifications
| Description | Ultra high performance user station provides access for KX3 & KX4, 4K resolution, larger numbers of IP sessions and up to 3 monitors. 3X higher performance than DKX3-UST. |
|---|---|
| Hardware | Intel Core i3-13100 3.4GHz, 8GB RAM, 256GB Solid State Disk |
| Video | (1) HDMI 2.0b +(2) DisplayPort 1.4a, DP++ , Max resolution up to 4096x2160@60Hz, Max 3 display (1x HDMI 2.0b, 2x DisplayPort 1.4a @real) |
| Power | Input: 100-240/1.8A 50-60Hz Output: 19V/6.32A, Max 120W DCConnector:5.5/2.5mm (outer/inner diameter) / Level 6 Adapter |

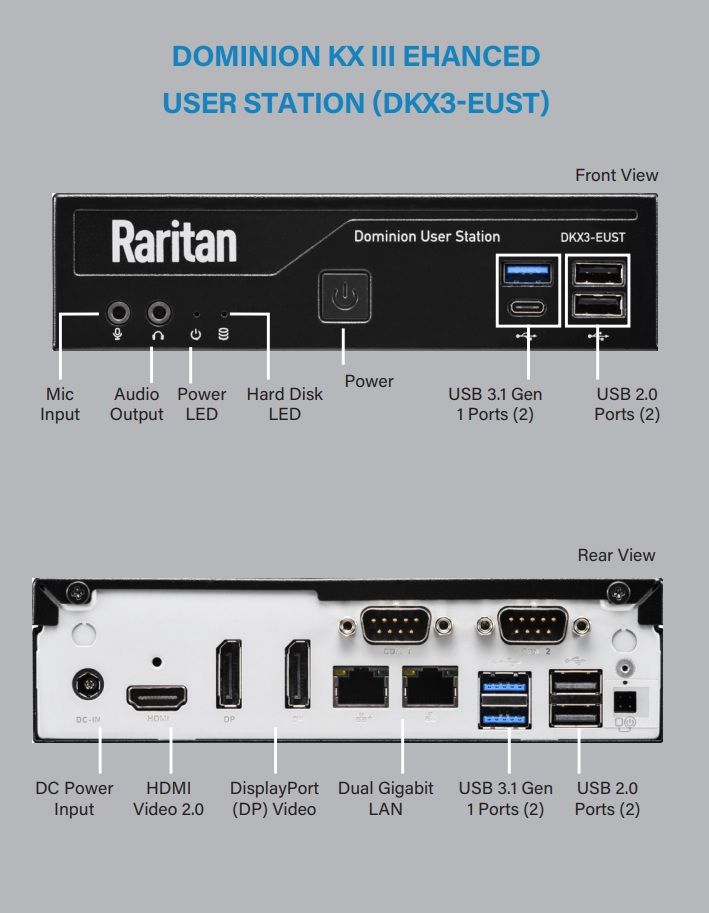

| USB | Front I/O: 2x USB 2.0, 1x USB 3.0 Type-C, 1x USB 3.1 Type-A, Rear I/O: USB 2.0 x2, USB 3.1 x2 |
| Audio | Microphone In, Speakers Out |
| Certifications | EMI - FCC, CE, VCCI, RCM, BSMI Safety - cTUVus, CB, CCC, BSMI |
| Dimensions (L x W x H) | 7.5 x 5.6 x 1.7 in (190 x 165 x 43 mm) |
| Weight | 2.9 Lbs (1.3 Kg) |
| Mounting | Desktop, VESA & Optional 1U Rack Mount bracket |
| Temperatures | 32-104 degrees Fahrenheit (0-40 degrees Celsius) |
| Humidity | Non-condensing 10-85% humidity |
| Altitude | 2,000 meters. |
