Raritan Dominion KX IV-101 Ultra High Performance 1-Port 4K KVM-over-IP Switch

DKX4-101

Dominion KX IV-101 - Raritan's fourth generation single-port KVM-over-IP switch Gateway, provides a new level of Ultra HD performance for KVM-over-IP remote management. More powerful than any other KVM-over-IP switch, it supports unblocked, Java-free anytime / anywhere, BIOS-level remote access of servers, PCs and workstations. The KX IV connects to a single computer, providing unblocked access to multiple users via laptop, PC or Dominion User Station.

The KX IV-101 supports access to servers with 4K video resolution (3840x2160), up to 30 frames per second with 4:2:2 color. It also supports HD resolutions up to 1920x1080 and 1920x1200 at up to 60 frames per second with high quality 4:4:4 color. The KX IV has an all-digital architecture for ultra fast video performance and high video quality, with virtual media transfers up to 3 times faster than the Dominion KX III. The KX IV has user-configurable bandwidth to operate across LAN, WAN and Internet.


Video Thumbnail - KX IV-101: Ultra High Performance, Single-Port KVM-over-IP Switch with 4K Video


The KX IV supports many of the popular Dominion features such as: virtual media, absolute mouse synchronization, LDAP/Radius/AD authentication, AES encryption, support for up to 8 simultaneous sessions, and much more. Users can use the Dominion KVM Clients for Java-free access, as well as the Dominion KX User Stations for high performance access in labs, studios and control rooms.

Dominion KX IV is incredibly scalable. A large number of KX IV switches can be integrated through the Dominion User Station and/or Raritan's CommandCenter Secure Gateway, with convenient single sign-on. The powerful Dominion User Station works standalone or with CommandCenter.

Raritan DKX4-101 Features

Raritan Dominion KX4-101 Application Diagram

  • Single-port, unblocked, BIOS-level, KVM-over-IP Access for up to 8 users

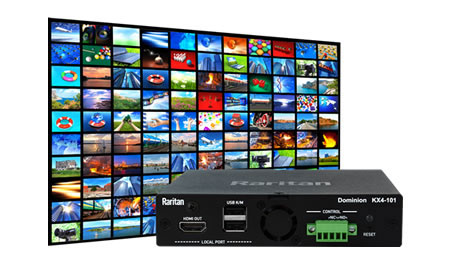

  • 4K Ultra HD (@30Hz) HDMI Video Performance
  • 1080p @ 60 frames-per-second & High Quality 4:4:4 Color
  • HDMI input with cables available for VGA, DVI, DisplayPort, Mini-DP & USB-C

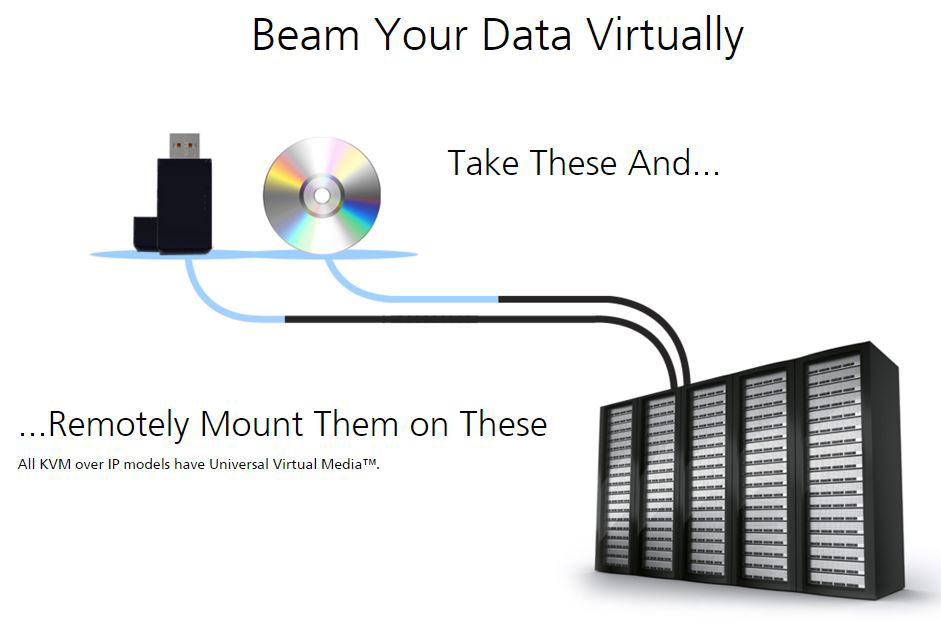

  • 3X Faster USB Virtual Media
  • HDMI Audio support
  • Java-Free, Anytime/Anywhere Access
  • Input / Output Device Control

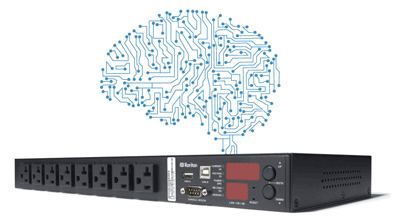

    • Power on/off PC/Server
  • Access from Laptop, PC, and optional User Station
  • New Platform / User Interface
  • Pass-through Local Port for local control
  • CommandCenter & User Station integration

Raritan DKX4-101 Highlights



The Broadest Array of Video Support in a Single-Port IP KVM



The most compatible IP KVMs in the market, the Dominion KX4-101 Over-IP Gateways support:

HDMI
HDMI KVM
DVI
product-kvm-dvi
Display Port
DisplayPort KVM
Mini-DP
Mini-DisplayPort KVM
USB-C
USB-C KVM
VGA
VGA KVM
Consolidate Data Center with Dominion KX 4 KVM-Over-IP Switch
iPad Access to Dominion KX 4 KVM-Over-IP Switch

Consolidate Your IT World

Secure remote management of your entire IT infrastructure from a single IP address.

Raritan DKX4-101 Web Browser IP KVM Client Access & Management

Remote Web Browser Access To Your Servers
From Anywhere in the World!

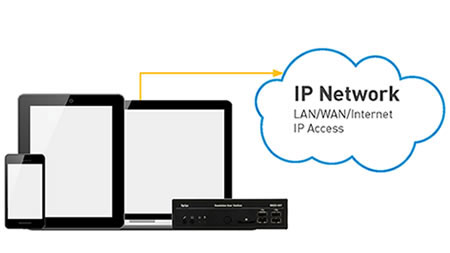

Dominion KX 4 KVMs allow local (in-bound) and remote (out-of-bound) operators the ability to monitor and access their servers, storage, and network devices over the network using a web-based browser (Java or HTTPS - IPv4, IPv6). Web based control methods employ high specification security techniques to ensure that only authorized users may gain access.

Raritan DKX4-UST User Station Application Diagram

Ultra High Performance IP User Station - Optional
Raritan DKX4-UST

  • Self-contained, hassle-free hardware appliance
    for applications without a standalone PC
  • 4K or 1080P streaming video sessions at up to 60 FPS
  • Single, Dual, and Triple Monitor sources
  • Ultra-fast connections and sub-second switching
  • Eight or more simultaneous IP sessions
  • Includes (2) DisplayPort & (1) HDMI video outputs
  • Perfect for broadcast, labs, studios, and control rooms
Raritan DKX4-UST User Station Application Diagram

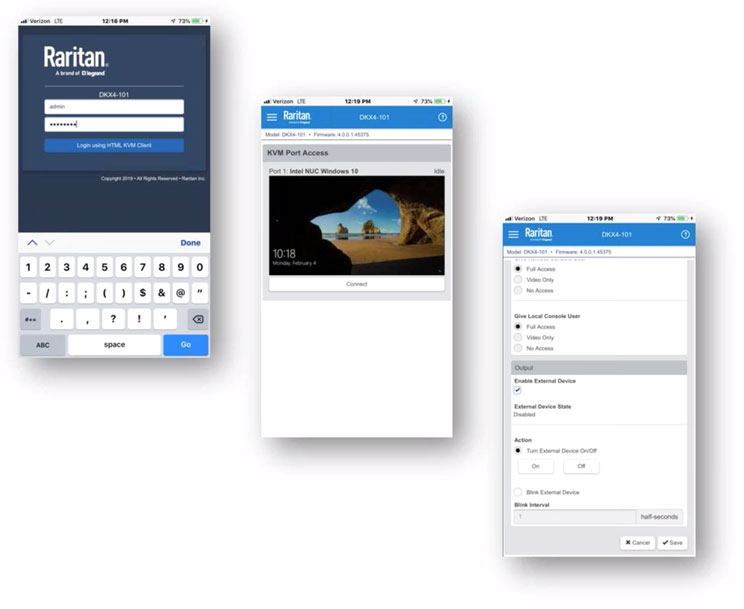

Raritan DKX4-101 Mobile iPhone App KVM Access

Mobile Access to KVM Sources
From iPhone or iPad!

Raritan Dominion KX 4 KVM model supports remote Mobile, BIOS-level access to your sources - Get emergency 24/7 out-of-hours access, as well as convenient everyday access and control of PC's and servers using Apple iPhones and iPads via a web browser (HKC - HTML KVM Client) or the Raritan CommandCenter Secure Gateway.

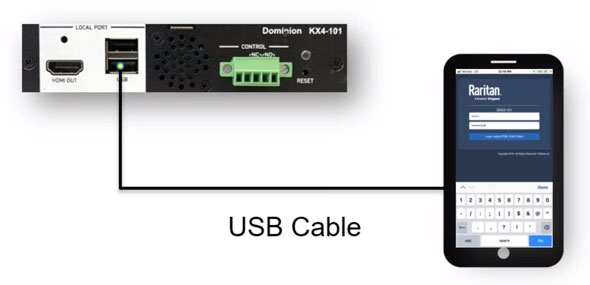

KVM View Mobile App for local Installation & Configuration

  • KVM version of Raritan PDView App
  • Connect to the KX4-101 via USB connection
  • Useful for configuring and administering the KX4-101
  • Available for Apple iOS devices (iPhone & iPad)
Raritan DKX4-101 Configuration via Mobile iOS App
CommandCenter (CC-SG) KVM Management Banner

Centralize Remote Management of Servers & Serial Devices
Raritan CommandCenter

Raritan's CommandCenter allows you to take total control of your enterprise by enabling centralized access to hundreds or thousands of IT devices connected through Raritan's KVM switches or serial console products.

CommandCenter aggregates access to multiple local or remote data centers by providing an intelligent, centralized gateway to monitor, diagnose and resolve problems on your entire network from one IP address. CommandCenter contains built-in diagnostics that provide status reports on the availability of all accessed devices, including system health updates and alarms.

CommandCenter combines powerful event management capabilities with full activity logging, user-defined status monitoring, alarms, audit trails and traceability-with multi-layer security and support for the most common authentication protocols including RADIUS, Active Directory, LDAP(S), and TACACS+.

Command Center Application Diagram - Dominion KX4-101

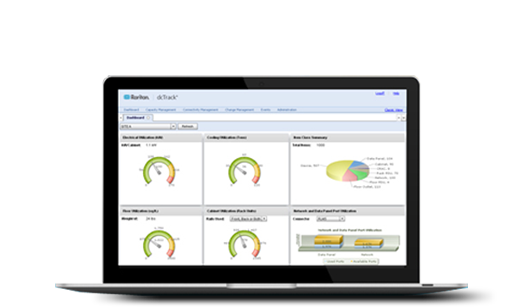

Raritan DCIM for DKX4-101 IP KVM


Raritan DCIM for DKX4-101 IP KVM

DCIM

Manage Data Center Complexity

Dramatically simplify data center operations management with DCIM software. Free yourself from multiple excel and visio files and improve asset, capacity, change management; power, energy, and environment monitoring.

Learn More About DCIM




Accessories & Optional Expansion

Resources & Support

DKX4-101 Package Contents

Whats included? Raritan DKX4-101 Package Contents(1) Dominion KX IV-101
(1) Locking power cord
(1) 6ft HDMI cable
(1) 6ft USB-B to USB-A cable
(1) "L" Mounting Bracket kit - PN 250-62-3011-00
- 1U Rack Bracket sold separately
(1) 2-Year Warranty

Raritan DKX4-101 Specifications

Mechanical
Width 5.51 in. (140 mm.)
Depth 5.67 in. (144 mm.)
Height 1.18 in. (30 mm.)
Weight 1.42 lbs. (0.65 kg.)
Form Factor Zero-U form factor (L bracket included).
Mount up to 3 units rack in 1U with optional RACK-KIT-DKX4-101-3
Remote Connection
Network Protocols
1 Gigabit Ethernet (RJ-45) port IPv6/IPv4 dual stack, TCP/IP, Telnet, SSH, HTTPS, RADIUS, LDAP, DHCP and SNMP v2 & v3
Server Connection HDMI Port with locking cord, USB-B to server USB-A port
Local Connection HDMI passthrough port. 2x USB-A port for keyboard and mouse control
Environmental
Operating Temperature 32°F (0°C) to 131°F (55°C)
Storage Temperature -4°F (-20°C) to -112°F (-80°C)
Operating Humidity 20% to 80% RH
Storage Humidity 10% to 90% RH
Power Single, auto-sensing power with locking cord, 100-240 Volt AC 50-60Hz, 12.5W/20W max/operating
Sample Video Resolutions 1024x768@60Hz, 1280x720@60Hz,1280x1024@60Hz, 1360x768@60Hz, 1400x1050@60Hz,1440x900@60Hz, 1600x1200@60Hz, 1920x1080@60Hz, 1920x1200@60Hz, 1680x1050@60Hz, 2560x1440@60Hz, 2560x1600@60Hz, 3840x2160@30Hz, 4096x2160@30Hz
Terminal Block Output Pins: Normally Open, Normally Closed, Common (Dry Contact).
Supported load: 2A/30VDC, or 0.5A/60VDC or 0.3A/125VAC
Input Pins: Input & Input Ground (Dry Contact). Does not support any power input
Warranty Two years standard warranty with advance replacement
Three Additional Years of Warranty is available
UPC / EAN Barcode icon
UPC 0785813077509
EAN 00785813077509
Question: Does the DKX4-101 have fans for cooling or is it just vented?
Answer: Thanks for reaching out to us,

The DKX4-101 does in-fact have an internal fan for cooling the unit.

Please let us know if there is anything else we can help you with!

Question: Can I replace the internal fan with a more quiet version?
Answer: Thank you for your inquiry,

While this is not officially supported, we had a customer with the same issue that was able swap out fans for a quieter version - see below. Please note however, modifying the unit will most likely void the warranty, and could be a fire hazard, so we don't really recommend it; You may want to wait for updated firmware instead.

"In order deal with the loud fan, I purchased a 92mm 5v, .38a fan. Despite having the same power requirements as the internal fan, I couldn't get it to run. Then I remembered the USB port on the front of the unit and purchased a USB to 2-pin head adapter.

That works. I've since replaced that fan with a Noctua NF-A9.

I removed the top cover of the KVM unit and mounted the fan blowing down on the heatsink and motherboard. The unit is now installed under the adjacent desk in my office. I can only hear it if all the other computers in the room are turned off.

If Raritan can update their firmware to throttle the fan speed, this won't be necessary. In the meantime, if you have buyers like me that want the high-resolution, but can't stand the noise, this information might be helpful."

Please let us know if there is anything else we can ever help you with!

Question: Does the Raritan DKX4-101 support VNC access?
Answer: Thank you for your inquiry,

The Raritan DKX4-101 can be accessed by a VNC client like Real VNC with the optional Raritan Command Center manager.

As a stand-alone IP KVM, the DKX4-101 can be controlled by three native KVM Client alternatives: Java-free HKC (HTML KVM Client), Microsoft Windows .NET AKC (Active KVM Client), and Java-based VKC (Virtual KVM Client).

The optional Raritan CommandCenter provides additional support of in-band access solutions such as RDP, VNC, SSH and service processors from leading computer manufacturers, as well as Remote Power Control, and access to VMware Virtual Machines.

Please let us know if there is anything else we can ever help you with!
